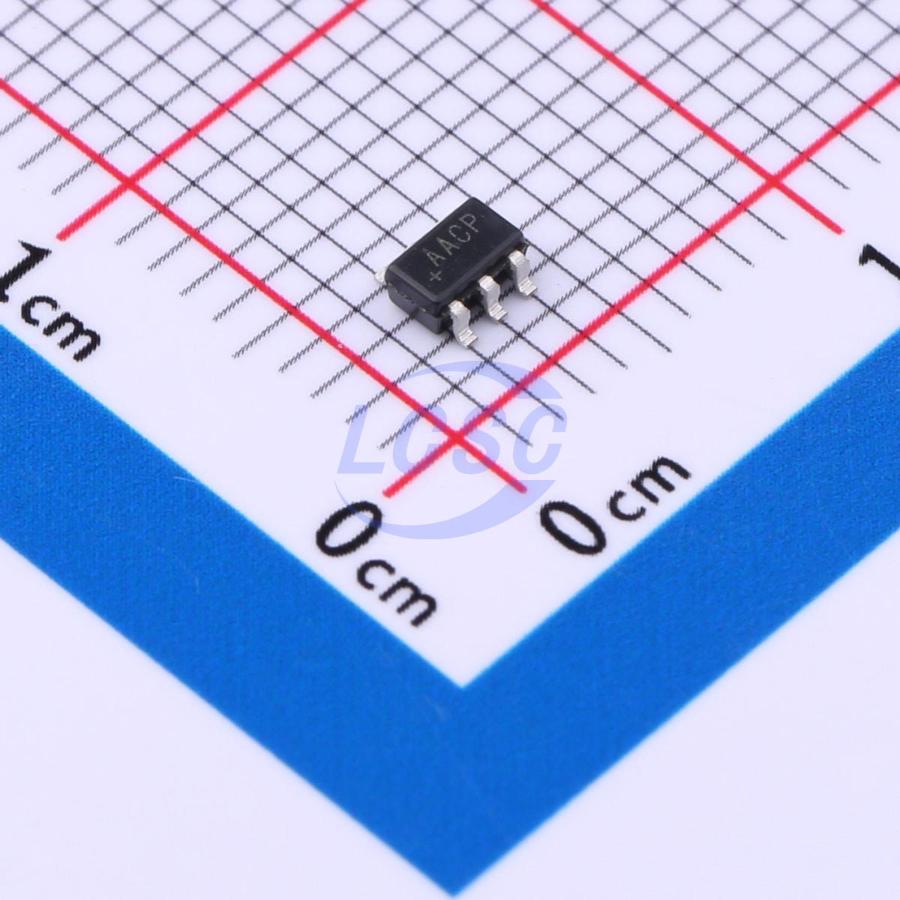

MAX6342LUT+T
180ms Manual reset input Active Low 1V~5.5V 1 SOT-6 Supervisors RoHS
6-Pin uP Reset Circuit with Power-Fail Comparator
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX6342LUT+T
- Store part #
- C3686607
- Package / case
- SOT-6
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,467 in stock
#C3686607
Stock & price checked 19 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹132.55 | ₹132.55 |
| 100+ | ₹118.69 | ₹11,869.00 |
1 × ₹132.55
₹132.55
excl. GST
₹156.41 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX6342LUT+T
₹132.55 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Reset Timeout
- 180ms
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active Low
- standby current
- 40uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.045 g
Overview
The MAX6342–MAX6345 family of microprocessor (µP) supervisory circuits monitors power supplies in digital systems. These devices significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX6342–MAX6345 provide factory-trimmed VCC reset threshold voltages from 2.33V to 4.63V and operate with supply voltages between +1V and +5.5V. A +1.25V threshold detector allows for a power-fail warning, for low-battery detection, or for monitoring another power supply. The MAX6342 contains an MR input and an active-low push-pull reset. The MAX6343 and MAX6344 are identical to the MAX6342 except they provide an active-low, open-drain reset and an active-high, push-pull reset, respectively. The MAX6345 provides a second reset output in place of the MR input to give it an active-high push-pull reset and an active-low push-pull reset. All of the devices are packaged in a miniature 6-pin SOT23.
Applications
- Portable Computers
- Telecom Equipment
- Networking Equipment
- Portable/Battery-Powered Equipment
- Multivoltage Systems
- Embedded Control Systems
Key features
- Small 6-Pin SOT23 Package
- Precision Factory-Set VCC Reset Thresholds Between 2.33V and 4.63V
- Guaranteed RESET Valid to Vcc = +1V
- 100ms min Reset Pulse Width
- Debounced CMOS-Compatible Manual-Reset Input
- Voltage Monitor for Power-Fail or Low-Battery Warning
- Devices are available in both leaded and lead-free packaging
