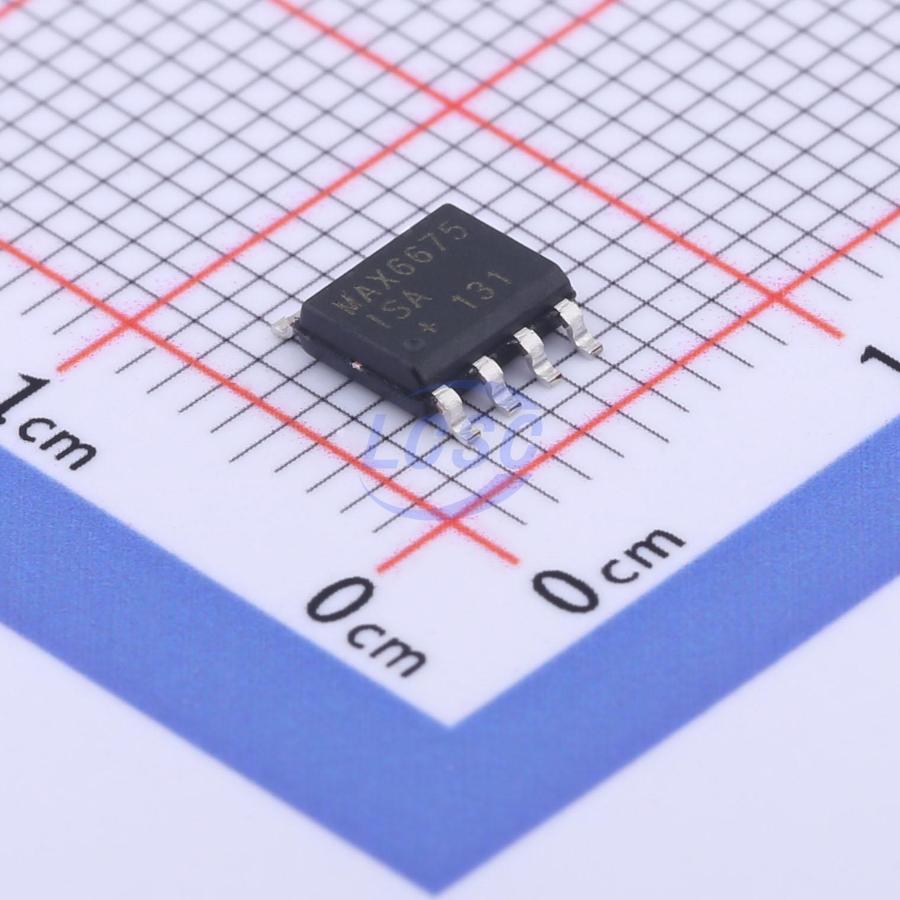

MAX6675ISA+T
SPI SOIC-8 Sensor and Detector Interfaces RoHS
Cold-Junction-Compensated K-Thermocouple-to-Digital Converter
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX6675ISA+T
- Store part #
- C16030
- Package / case
- SOIC-8
- Category
- Sensor and Detector Interfaces
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,817 in stock
#C16030
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹258.65 | ₹258.65 |
| 10+ | ₹225.45 | ₹2,254.50 |
| 30+ | ₹202.11 | ₹6,063.30 |
| 100+ | ₹180.75 | ₹18,075.00 |
| 500+ | ₹171.06 | ₹85,530.00 |
| 1,000+ | ₹166.94 | ₹1,66,940.00 |
1 × ₹258.65
₹258.65
excl. GST
₹305.21 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX6675ISA+T
₹258.65 for 1 + GST
Specifications
- Features
- Built-in temperature sensor;Low noise front-end
- Supply Current (Iq)
- 1500uA
- Operating Temperature
- -20℃~+85℃
- Voltage - Supply
- 3V~5.5V
- Interface
- SPI
- The Chip Type
- Thermocouple-to-Digital Converter
- Resolution (Bits)
- 12;-
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.115 g
Overview
The MAX6675 performs cold-junction compensation and digitizes the signal from a type-K thermocouple. The data is output in a 12-bit resolution, SPI-compatible, read-only format. This converter resolves temperatures to 0.25°C, allows readings as high as +1024°C, and exhibits thermocouple accuracy of 8LSBs for temperatures ranging from 0°C to +700°C. The MAX6675 is available in a small, 8-pin SO package. The MAX6675 is a sophisticated thermocouple-to-digital converter with a built-in 12-bit analog-to-digital converter (ADC). The MAX6675 also contains cold-junction compensation sensing and correction, a digital controller, an SPI-compatible interface, and associated control logic. The MAX6675 is designed to work in conjunction with an external microcontroller (μC) or other intelligence in thermostatic, process-control, or monitoring applications.
Applications
- Industrial
- Appliances
- HVAC
Key features
- Direct Digital Conversion of Type -K Thermocouple Output
- Cold-Junction Compensation
- Simple SPI-Compatible Serial Interface
- 12-Bit, 0.25°C Resolution
- Open Thermocouple Detection
