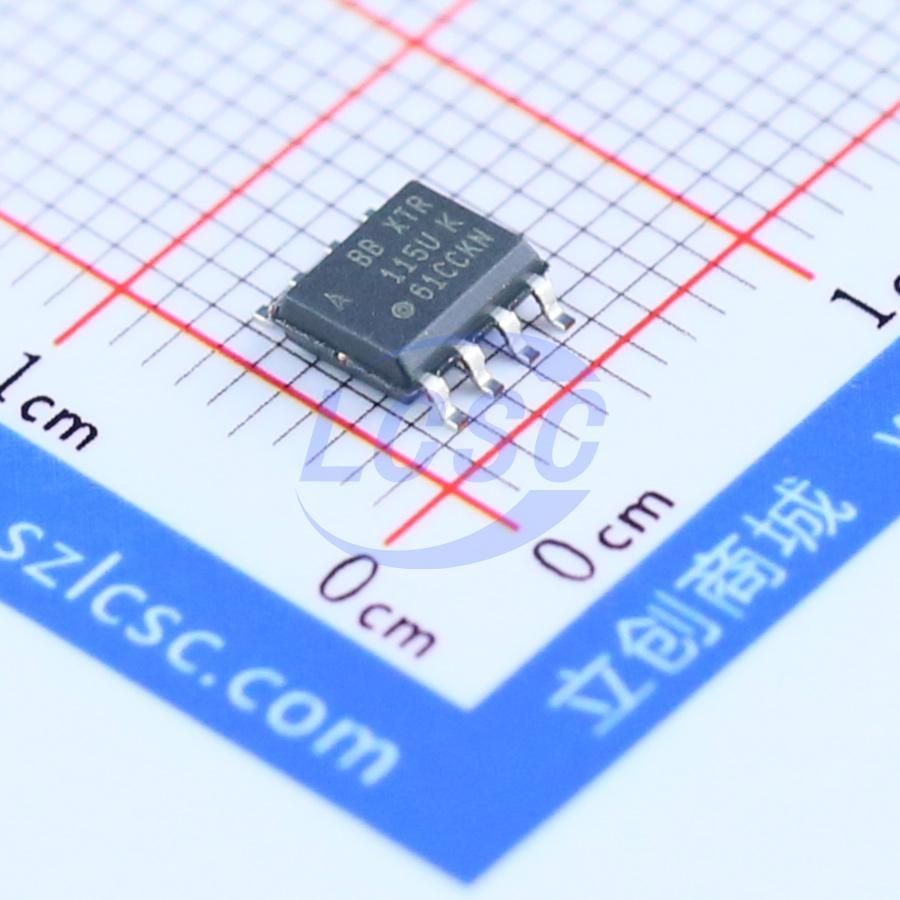

XTR115UA/2K5

SOIC-8 Sensor and Detector Interfaces RoHS

SOIC-8ROHS3 CompliantActive

4-20mA Current Loop Transmitters

Manufacturer: TI
Manufacturer part #: XTR115UA/2K5
Store part #: C21283
Package / case: SOIC-8
Category: Sensor and Detector Interfaces
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

74,578 in stock

#C21283

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹130.78	₹130.78
10+	₹114.88	₹1,148.80
30+	₹97.18	₹2,915.40
100+	₹85.99	₹8,599.00
500+	₹81.29	₹40,645.00
1,000+	₹79.12	₹79,120.00

Quantity (min 1)

1 × ₹130.78

₹130.78

excl. GST

₹154.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

XTR115UA/2K5

₹130.78 for 1 + GST

Specifications

Features: Built-in reference source
Supply Current (Iq): 200uA
Operating Temperature: -40℃~+85℃
Voltage - Supply: 7.5V~36V
The Chip Type: V-IConverter
Number of Channels: 1

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.173 g

Overview

The XTR115 and XTR116 are precision current output converters designed to transmit analog 4-to- 20mA signals over an industry standard current loop. They provide accurate current scaling and output current limit functions. The on-chip voltage regulator (5V) can be used to power external circuitry. A precision on-chip VREF (2.5V for XTR115 and 4.096V for XTR116) can be used for offsetting or to excite transducers. A current return pin (I_RET) senses any current used in external circuitry to assure an accurate control of the output current. The XTR115 is a fundamental building block of smart sensors using 4-to- 20mA current transmission. The XTR115 and XTR116 are specified for operation over the extended industrial temperature range, -40°C to +85°C.
