TDSEMICDatasheet (PDF)

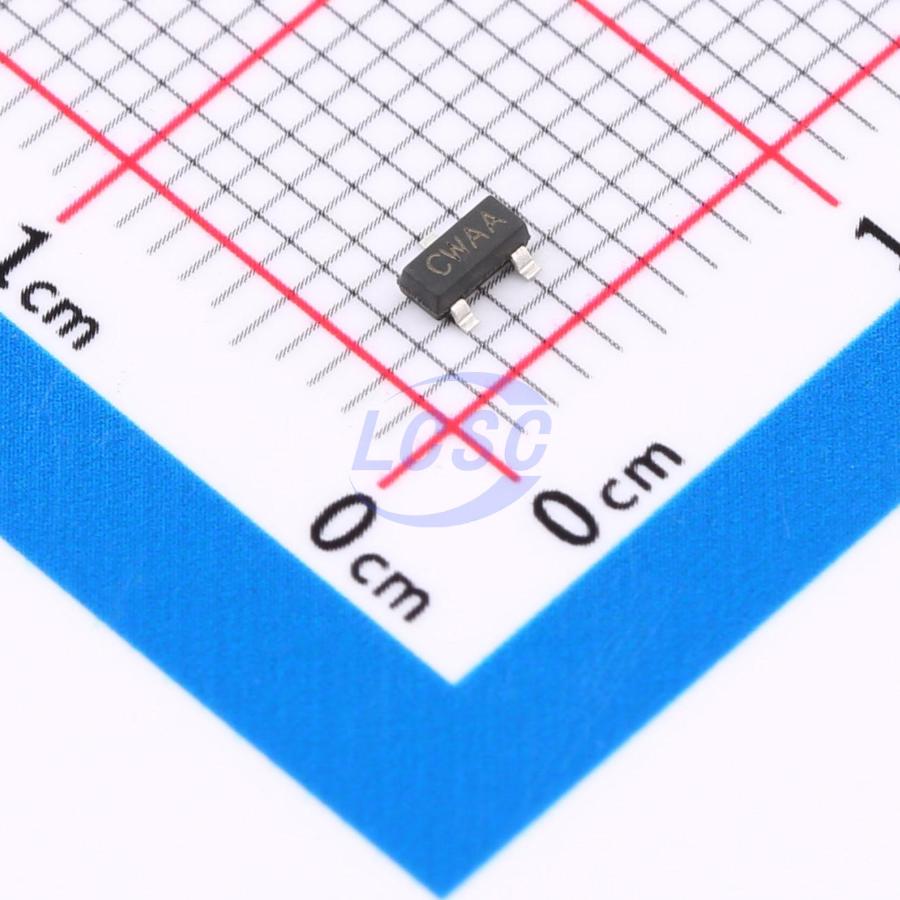

MAX809J-TD
Supervisor SOT-23-3
SOT-23-3ROHS CompliantActive
Low-Voltage Reset Detector
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX809J-TD
- Store part #
- C49211300
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,970 in stock
#C49211300
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.56 | ₹85.60 |
| 100+ | ₹6.77 | ₹677.00 |
| 300+ | ₹5.87 | ₹1,761.00 |
| 3,000+ | ₹5.20 | ₹15,600.00 |
| 6,000+ | ₹4.67 | ₹28,020.00 |
| 9,000+ | ₹4.39 | ₹39,510.00 |
10 × ₹8.56
₹85.60
excl. GST
₹101.01 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809J-TD
₹85.60 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+70℃
- Reset Timeout
- 500ms
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The MAX809X series is a digitally-designed three-terminal low-voltage reset detector and supervisor that provides reset monitoring signals for processors. This series monitors fixed supply voltages from 1.0V to 5.0V, is easy to use, and requires no external components.
Applications
- Battery-powered devices
- Power failure detectors
- Computer and microprocessor systems
- Non-volatile RAM signal storage protectors
- Embedded systems
Key features
- Low power consumption: 2uA (typical)
- Wide operating voltage range: 1V to 6.0V
- Power supply voltage transient immunity
- No external components required
- Built-in reset delay time 500ms (typical)
- High accuracy reset voltage: ±2.5%
- Compact package: SOT23
