TECH PUBLICDatasheet (PDF)

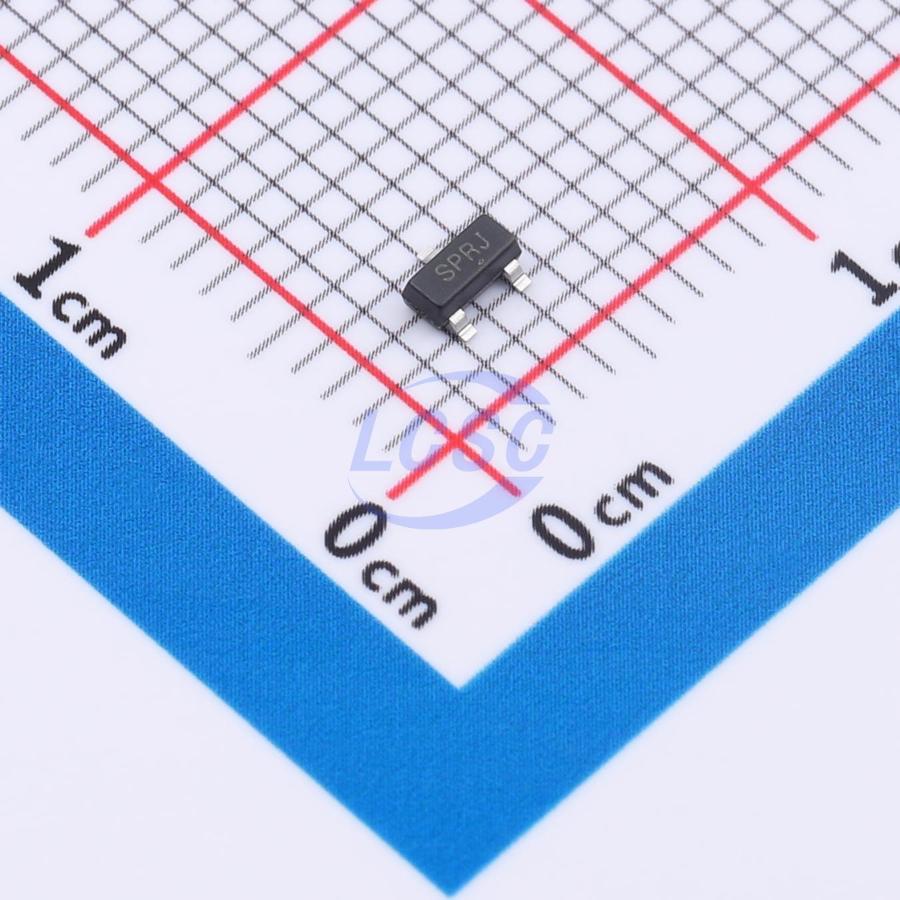

MAX809JTRG-TP
360ms Active Low 1V~5.5V 1 SOT-23 Supervisors
SOT-23RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MAX809JTRG-TP
- Store part #
- C52817132
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C52817132
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.48 | ₹52.40 |
| 50+ | ₹8.24 | ₹412.00 |
| 150+ | ₹7.13 | ₹1,069.50 |
| 500+ | ₹6.30 | ₹3,150.00 |
| 3,000+ | ₹5.62 | ₹16,860.00 |
| 6,000+ | ₹5.29 | ₹31,740.00 |
5 × ₹10.48
₹52.40
excl. GST
₹61.83 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809JTRG-TP
₹52.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- output type
- Push-pull
- Reset Timeout
- 360ms
- Reset Active Level
- Active Low
- standby current
- 3uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Applications
- Computers
- Embedded systems
- Battery-powered devices
- Smart instruments
- CPU and logic circuit reset
- Power failure detectors
- Automotive electronics
Key features
- Typical quiescent current: 3μA
- No external components required
- Vcc transient immunity
- Logic output guaranteed correct with Vcc as low as 1.0V
- Push-pull active-low reset output
- Available in SOT23 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TPAX809JRVS3#C53100589TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 3,000 | ₹24.04 · 3,000 in stock | View |
 | TPCAT809JTBI-GT3#C52098286TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,465 | ₹10.69 · 2,465 in stock | View |
 | IMP809JEUR-TP#C52817109TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,210 | ₹7.79 · 2,210 in stock | View |
 | TPADM809JARTZ#C52817182TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,995 | ₹21.42 · 2,995 in stock | View |
 | TPTCM809JENB713#C52817308TECH PUBLIC · SOT-23 | TECH PUBLIC | SOT-23 | 2,960 | ₹7.79 · 2,960 in stock | View |
