MSKSEMIDatasheet (PDF)

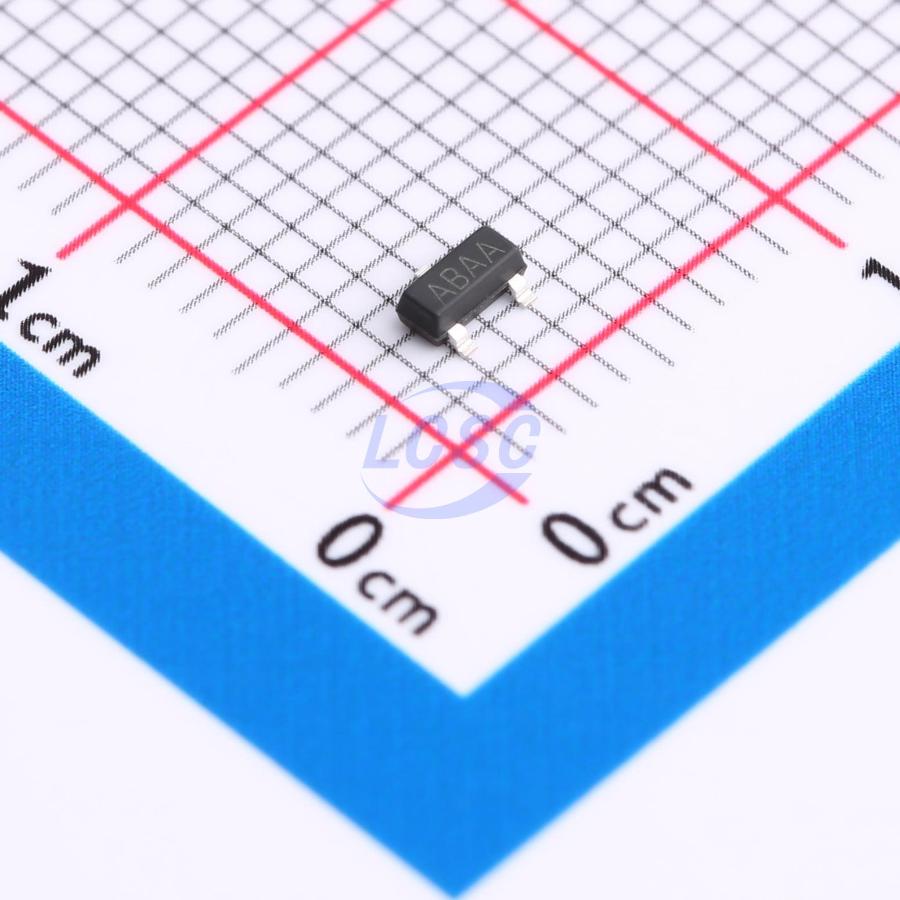

MAX809M
Supervisor Open Drain 1 Channel SOT-23-3
SOT-23-3RoHSActive
MAX809 Series Three-port Low-voltage Reset Detection Monitors
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MAX809M
- Store part #
- C5379071
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C5379071
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.99 | ₹99.80 |
| 200+ | ₹3.94 | ₹788.00 |
| 600+ | ₹3.43 | ₹2,058.00 |
| 3,000+ | ₹2.92 | ₹8,760.00 |
| 9,000+ | ₹2.61 | ₹23,490.00 |
| 21,000+ | ₹2.45 | ₹51,450.00 |
20 × ₹4.99
₹99.80
excl. GST
₹117.76 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809M
₹99.80 for 20 + GST
Specifications
- Reset Timeout
- 200ms
- Operating Temperature
- -50℃~+95℃
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 500nA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.034 g
Overview
The MAX809 series is a three-terminal low-voltage reset detection monitor implemented using digital system circuit design technology, providing a reset monitoring signal for host processors. This series of reset detection monitors can monitor fixed voltages from 1.0V to 5.0V, featuring simple application with no external components required.
Applications
- Battery-powered devices
- Power failure detectors
- Computers and microprocessors
- Non-volatile RAM signal storage protectors
- Critical MP power supply monitoring
- Embedded systems
Key features
- Low power consumption: 5.5uA, VCC = 6V (typical)
- Wide operating voltage range: 1V~6.0V
- VCC transient noise immunity
- No external components required
- Built-in reset delay time: 200ms (typical)
- High-accuracy reset voltage: ±2.5%
- Compact package: SOT-23-3
