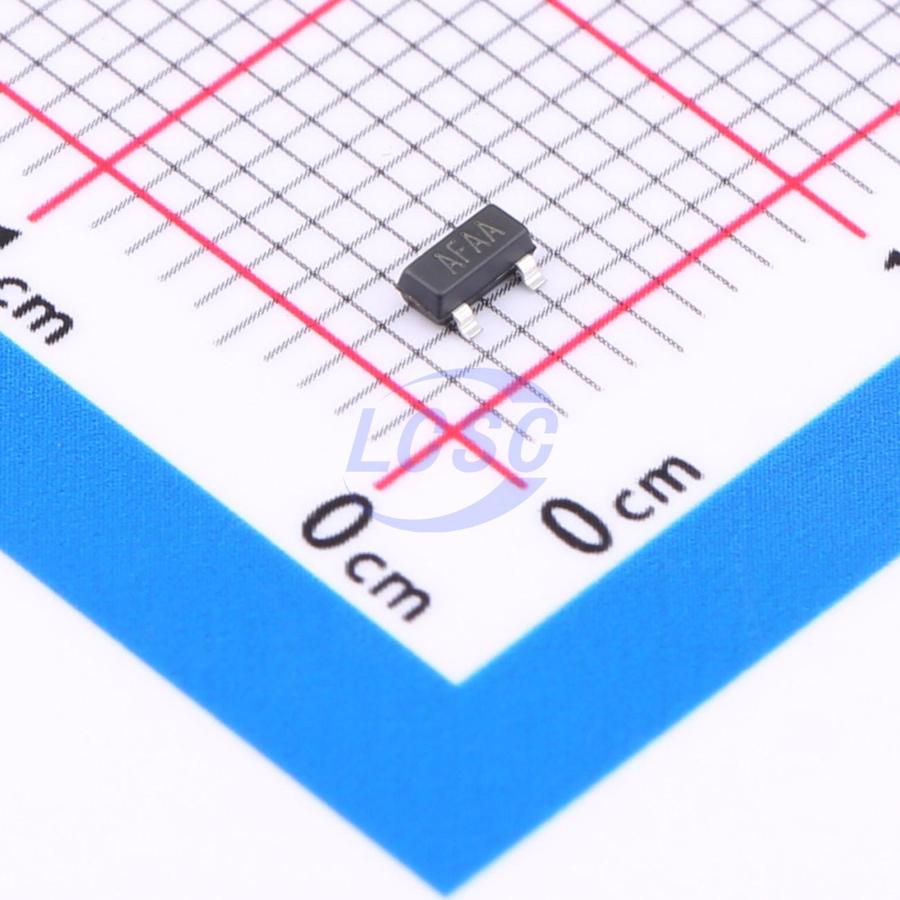

MAX809R

This series of voltage detectors is manufactured using CMOS and laser trimming technology, featuring high accuracy and low power consumption. Each detector incorporates a built-in delay circuit, achieving extremely high detection voltage accuracy with minimal temperature drift. Both CMOS and N-channel open-drain output configurations are available. The built-in delay circuit eliminates the need for external components, enabling high-density mounting.

Applications

• Microprocessor reset circuits
• System battery life and charge voltage monitors
• Memory battery backup circuits
• Delay circuits
• Power-on reset circuits

Key features

• Low power consumption
• High input voltage (up to 8V)
• Low temperature coefficient
• Output voltage accuracy: ±2% tolerance
• Built-in delay circuit: 200ms
• SOT23 package
