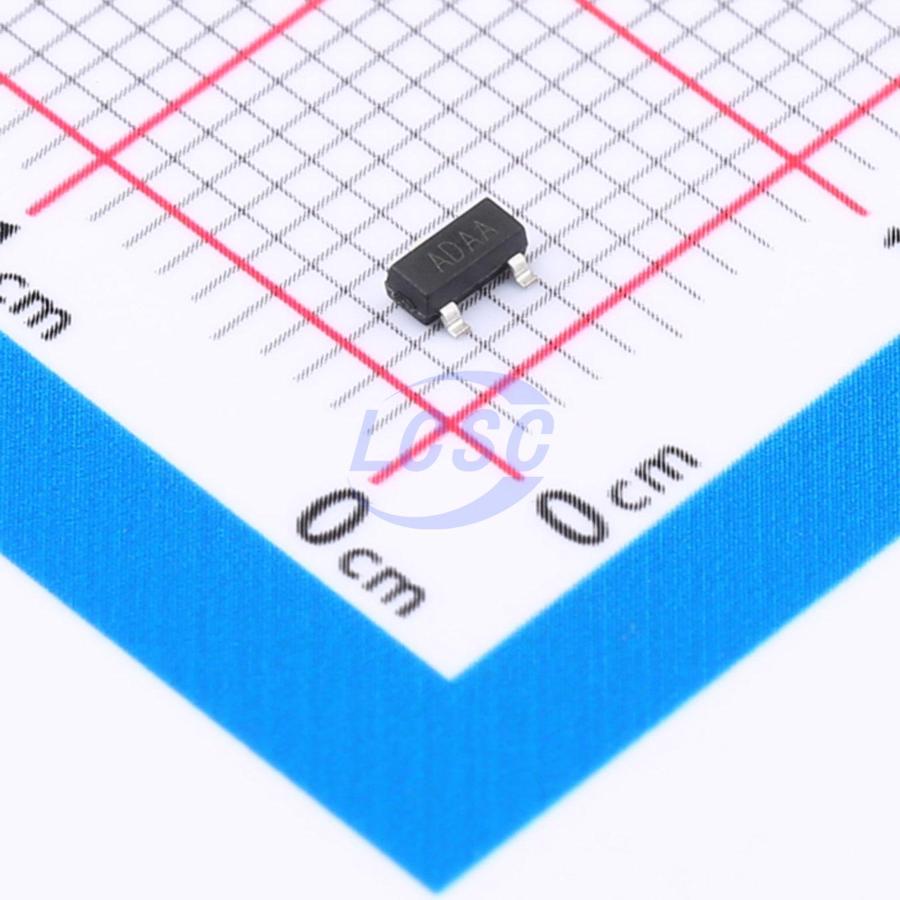

MAX809S-JSM
Supervisor Push-Pull 1 Channel SOT-23-3
Microprocessor Voltage Detection and Reset IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MAX809S-JSM
- Store part #
- C5381778
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,270 in stock
#C5381778
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.59 | ₹75.90 |
| 100+ | ₹6.03 | ₹603.00 |
| 300+ | ₹5.25 | ₹1,575.00 |
| 3,000+ | ₹4.51 | ₹13,530.00 |
| 6,000+ | ₹4.05 | ₹24,300.00 |
| 9,000+ | ₹3.81 | ₹34,290.00 |
10 × ₹7.59
₹75.90
excl. GST
₹89.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809S-JSM
₹75.90 for 10 + GST
Specifications
- Reset Timeout
- 240ms
- output type
- Push-pull
- Operating Temperature
- -50℃~+95℃
- Reset Active Level
- Active Low
- standby current
- 14uA
- Voltage - Supply
- 6.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.93V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The MAX809 is a voltage detector IC designed for power supply voltage monitoring in digital systems, operating across the industrial-grade standard temperature range. The MAX809 generates a reset signal that asserts low when the system supply voltage drops below the threshold, and deasserts high at least 140ms after the supply voltage recovers above the threshold. The MAX809 series supports any customer-specified detection voltage. Seven standard industrial voltage monitoring thresholds are currently available, covering four supply voltage classes: 5.0V, 3.3V, 3.0V, and 2.5V. The MAX809 features a push-pull output stage that drives the reset output high when the monitored voltage exceeds the threshold. Fast power supply transients, glitches, and noise are filtered out to prevent false triggering, while normal output logic and all performance specifications are guaranteed even with supply voltages as low as 1.0V. The MAX809 is available in a compact 3-pin SOT-23 package.
Applications
- Computers, servers, laptops, modems
- Wireless switches
- Embedded systems
- Home appliances, electricity meters
- PDAs and handheld devices
Key features
- Industrial temperature range operation: -40 °C to +85 °C
- Operates down to 1V
- Power supply glitch immunity
- Available in SOT-23 package
- Lead-free and RoHS compliant
