HXY MOSFETDatasheet (PDF)

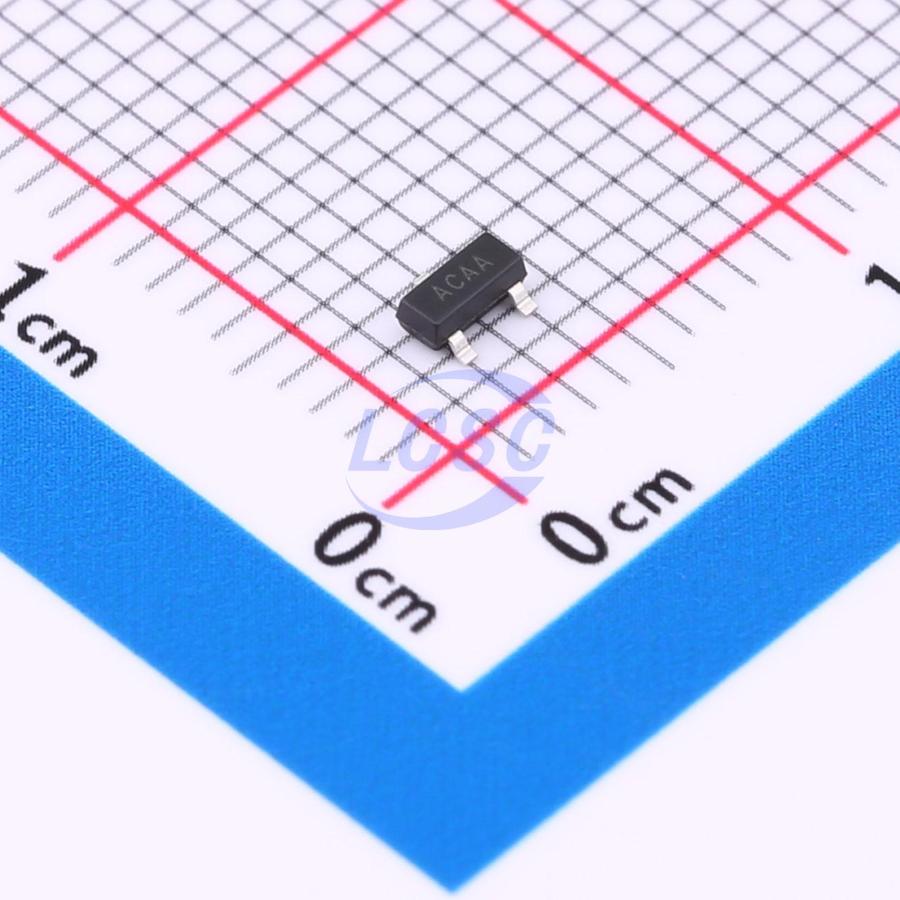

MAX809T-HXY
200ms Active Low 1.2V~5.5V 1 SOT-23 Supervisors RoHS
SOT-23ROHS CompliantActive
Power Supply Supervisor
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- MAX809T-HXY
- Store part #
- C22386570
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,330 in stock
#C22386570
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.41 | ₹54.10 |
| 100+ | ₹4.28 | ₹428.00 |
| 300+ | ₹3.72 | ₹1,116.00 |
| 3,000+ | ₹3.29 | ₹9,870.00 |
| 6,000+ | ₹2.95 | ₹17,700.00 |
| 9,000+ | ₹2.78 | ₹25,020.00 |
10 × ₹5.41
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX809T-HXY
₹54.10 for 10 + GST
Specifications
- Reset Timeout
- 200ms
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Push-pull
- Reset Active Level
- Active Low
- standby current
- 17uA
- Voltage - Supply
- 1.2V~5.5V
- ChipType
- Voltage Detector
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.034 g
Overview
The MAX809x series is a three-pin low-voltage reset detector/supervisor implemented using digital system circuit design technology, providing reset monitoring signals for host processors. This series can monitor fixed voltages from 1.0V to 5.0V, is easy to apply, and requires no external components.
Applications
- Battery-powered equipment
- Non-volatile RAM signal storage protector
- Power failure detector
- Critical MP power supply monitoring
- Computers and microprocessor systems
Key features
- Low power consumption: 2uA (typical)
- Built-in reset delay time: 500ms (typical)
- Wide operating voltage range: 1V~6.0V
- High-precision reset voltage: ±2.5%
- VCC transient immunity
- Compact package: SOT-23
- No external components required
