TECH PUBLICDatasheet (PDF)

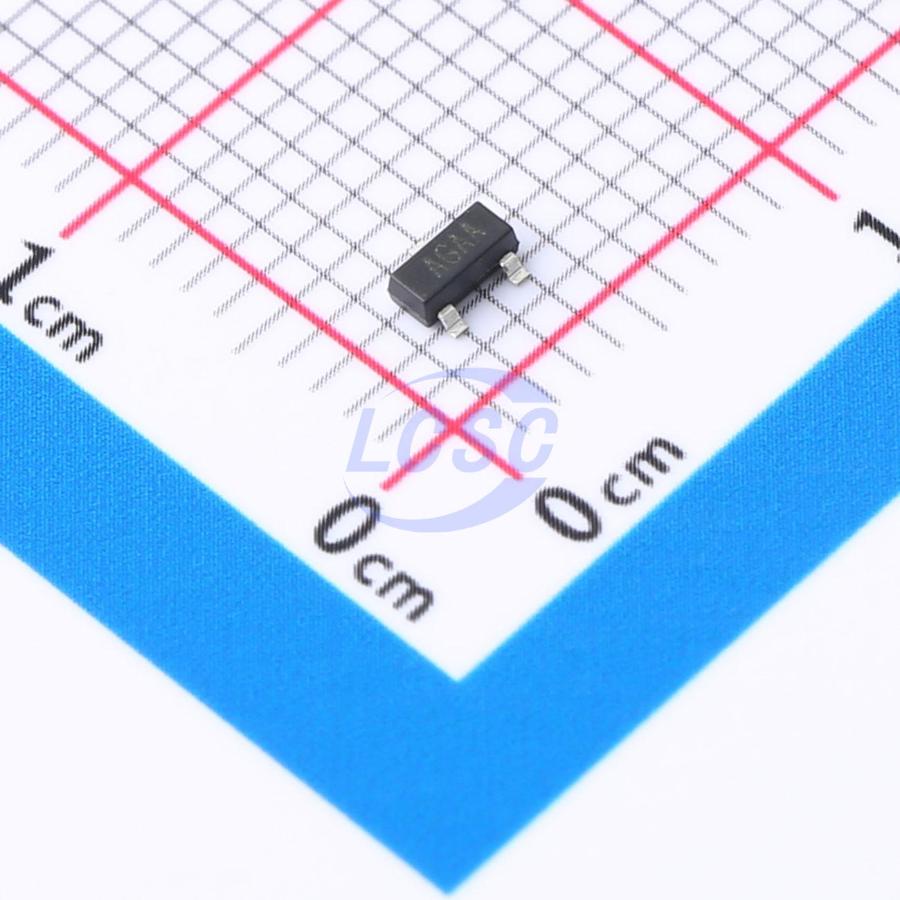

MAX810L
200ms Active High 1V~6V 1 SOT-23 Supervisors
SOT-23RoHSActive
Microprocessor Reset Circuit
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MAX810L
- Store part #
- C7202991
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,510 in stock
#C7202991
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.41 | ₹52.05 |
| 50+ | ₹8.11 | ₹405.50 |
| 150+ | ₹6.97 | ₹1,045.50 |
| 500+ | ₹6.11 | ₹3,055.00 |
| 3,000+ | ₹5.42 | ₹16,260.00 |
| 6,000+ | ₹5.07 | ₹30,420.00 |
5 × ₹10.41
₹52.05
excl. GST
₹61.42 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX810L
₹52.05 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Push-pull
- Reset Active Level
- Active High
- standby current
- 25uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
A microprocessor's reset input starts the μP in a known state. The MAX809/810 assert reset to prevent code execution errors during power-up, power-down, or brownout conditions. They assert a reset signal whenever the VCC supply voltage declines below a preset threshold, keeping it asserted for at least 140ms after VCC has risen above the reset threshold. The MAX809/810 have a push-pull output stage.
Applications
- Battery-operated systems and controllers
- Intelligent instruments
- Critical μP and μc power monitoring
- Portable / Battery powered equipment
- Automotive
Key features
- High Accurate ±2% Precision monitoring of +3V, +3.3V, and +5V Power supply voltage
- Fully specified over temperature
- Available in three output configurations
- Push-Pull RESET low output(MAX809)
- Push-Pull (RESET) high output (MAX810)
- 200ms typ. Power-on reset pulse width
- 25μs supply current
- Guaranteed reset valid to VCC = +1V
- Power supply transient immunity
