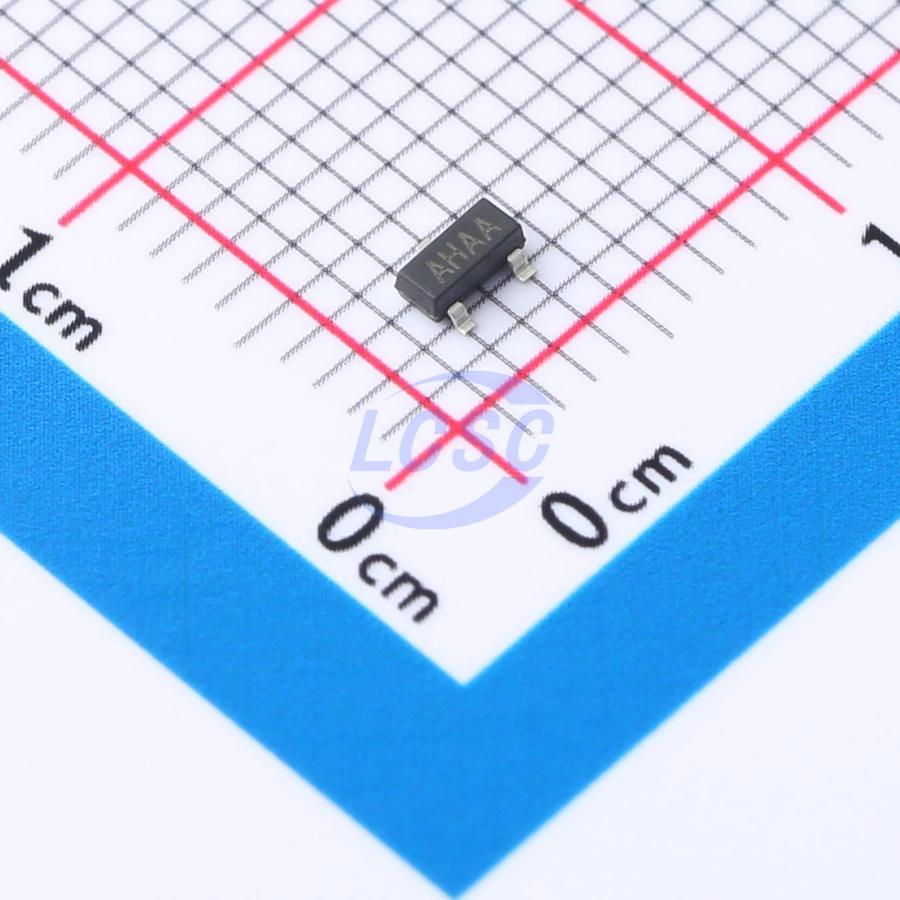

MAX810M
Supervisor Push-Pull 1 Channel SOT-23
Low-Voltage Reset Detector
- Manufacturer
- GR
- Manufacturer part #
- MAX810M
- Store part #
- C19631726
- Package / case
- SOT-23
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,610 in stock
#C19631726
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.16 | ₹51.60 |
| 100+ | ₹4.07 | ₹407.00 |
| 300+ | ₹3.55 | ₹1,065.00 |
| 3,000+ | ₹3.14 | ₹9,420.00 |
| 6,000+ | ₹2.80 | ₹16,800.00 |
| 9,000+ | ₹2.65 | ₹23,850.00 |
10 × ₹5.16
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX810M
₹51.60 for 10 + GST
Specifications
- output type
- Push-pull
- Reset Timeout
- 500ms
- Operating Temperature
- -20℃~+60℃
- Reset Active Level
- Active High
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 4.38V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
The MAX810xx series is a microprocessor reset IC with voltage monitoring capability, designed to supervise the supply voltage of microcontrollers or other logic systems. It provides a reset signal to the microcontroller during power-up, power-down, and brown-out conditions. When the supply voltage falls below the preset threshold voltage, the device asserts a reset signal until the supply voltage recovers above the threshold. When the input voltage drops below the threshold voltage, the VRESET output goes high. The series features simple application with no external components required.
Applications
- Battery-powered PAD and handheld devices
- Wireless communication systems
- Embedded systems
- Computers and microprocessors
Key features
- Low power consumption: 2uA (typical)
- Built-in reset delay time: 500ms (typical)
- Wide operating voltage range: 1V ~ 6.0V
- High accuracy reset voltage: ±2.5%
- VCC transient noise immunity
- VRESET output low when input voltage exceeds detection voltage
- No external components required
- Compact package: SOT23
