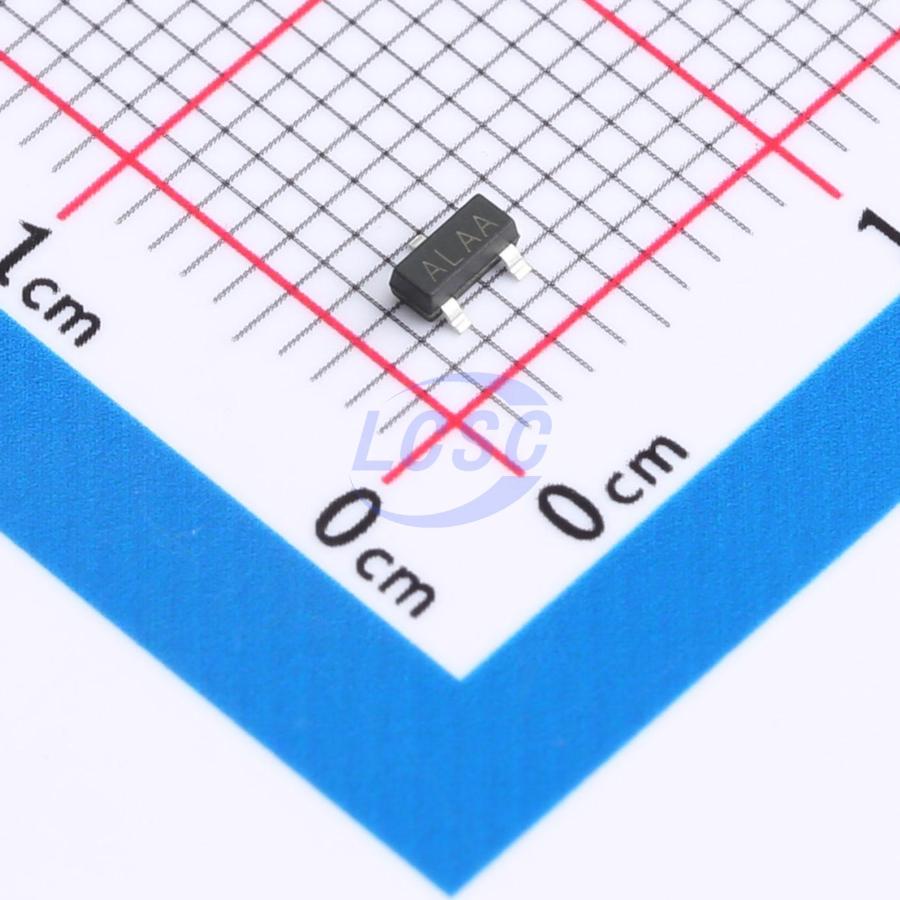

MAX810RDBZRG
Supervisor SOT-23-3
Low-Voltage Reset Detector
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- MAX810RDBZRG
- Store part #
- C19723722
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C19723722
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.04 | ₹50.40 |
| 100+ | ₹3.98 | ₹398.00 |
| 300+ | ₹3.45 | ₹1,035.00 |
| 3,000+ | ₹3.06 | ₹9,180.00 |
| 6,000+ | ₹2.74 | ₹16,440.00 |
| 9,000+ | ₹2.59 | ₹23,310.00 |
10 × ₹5.04
₹50.40
excl. GST
₹59.47 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX810RDBZRG
₹50.40 for 10 + GST
Specifications
- Reset Timeout
- 500ms
- Operating Temperature
- -20℃~+60℃
- Reset Active Level
- Active Low
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage Detector
- Threshold Voltage
- 2.63V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.042 g
Overview
The MAX810X series is a microprocessor reset IC with voltage monitoring capability, designed to supervise the supply voltage of microcontrollers or other logic systems. It provides a reset signal to the microcontroller during power-up, power-down, and brownout conditions. When the supply voltage falls below the preset threshold voltage, the device asserts a reset signal until the supply voltage recovers above the threshold. When the input voltage drops below the threshold voltage, the VRESET output goes high. The MAX810X series requires no external components, making it simple to use.
Applications
- Battery-powered devices
- Wireless communication systems
- Computers and microprocessors
- PADs and handheld devices
- Embedded systems
Key features
- Low power consumption: 2uA (typical)
- Wide operating voltage range
- VCC transient immunity
- No external components required
- Built-in reset delay time: 500ms (typical)
- High-accuracy reset threshold voltage: ±2.5%
- VRESET output low when input voltage exceeds detection voltage
- Compact package: SOT-23
