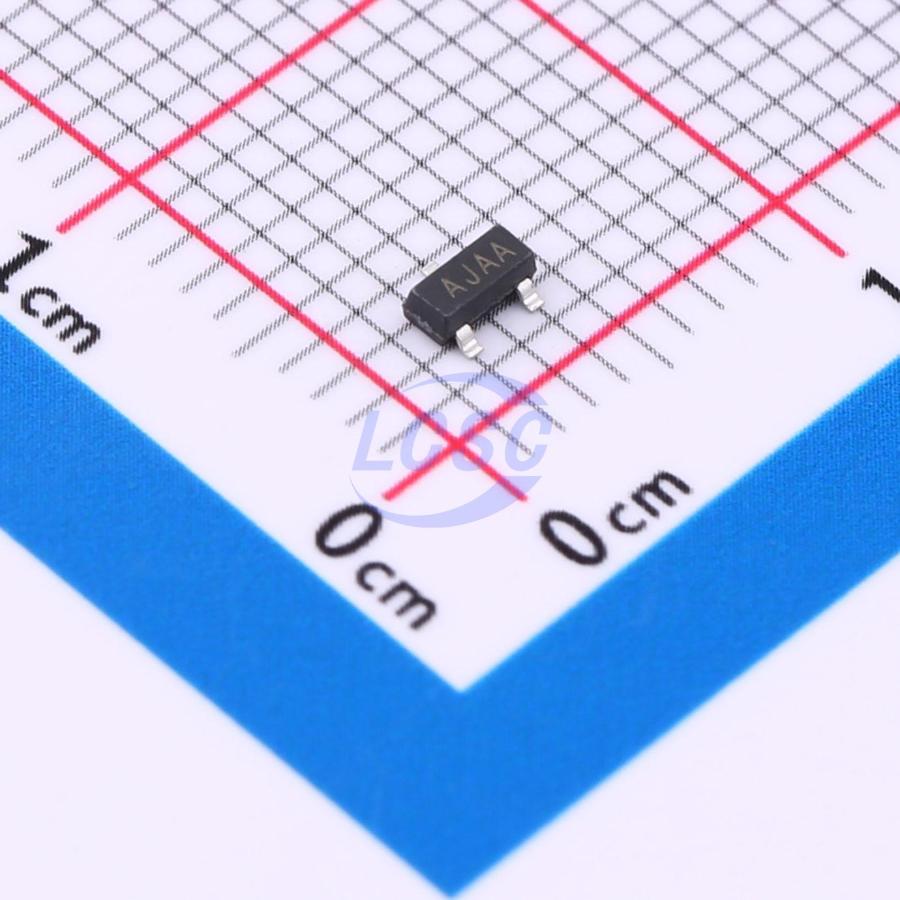

MAX810T-TD
Supervisor 1 Channel SOT-23-3
Low-Voltage Reset Detector
- Manufacturer
- TDSEMIC
- Manufacturer part #
- MAX810T-TD
- Store part #
- C42422034
- Package / case
- SOT-23-3
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,610 in stock
#C42422034
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.76 | ₹57.60 |
| 100+ | ₹4.55 | ₹455.00 |
| 300+ | ₹3.96 | ₹1,188.00 |
| 1,000+ | ₹3.49 | ₹3,490.00 |
| 5,000+ | ₹3.14 | ₹15,700.00 |
| 10,000+ | ₹2.95 | ₹29,500.00 |
10 × ₹5.76
₹57.60
excl. GST
₹67.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MAX810T-TD
₹57.60 for 10 + GST
Specifications
- Operating Temperature
- -20℃~+60℃
- Reset Timeout
- 500ms
- Reset Active Level
- Active High
- standby current
- 2uA
- Voltage - Supply
- 1V~6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 2 (1 year)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.033 g
Overview
The MAX810T-TD series is a microprocessor reset IC with voltage monitoring capability, designed to supervise the supply voltage of microcontrollers or other logic systems. It provides reset signals to the microcontroller during power-up, power-down, and power-saving conditions. When the supply voltage falls below the preset threshold voltage, the device asserts a reset signal until the supply voltage recovers above the threshold. When the input voltage drops below the threshold voltage, the VRESET output goes high. The series requires no external components, making it simple to implement.
Applications
- Battery-powered devices, PADs, and handheld devices
- Wireless communication systems
- Embedded systems
- Computers and microprocessors
Key features
- Low power consumption: 2μA (typical)
- Built-in reset delay time: 500ms (typical)
- Wide operating voltage range: 1V ~ 6.0V
- High-accuracy reset voltage: ±2.5%
- VCC transient noise immunity
- VRESET output low when input voltage exceeds detection voltage
- No external components required
- Compact package: SOT23
