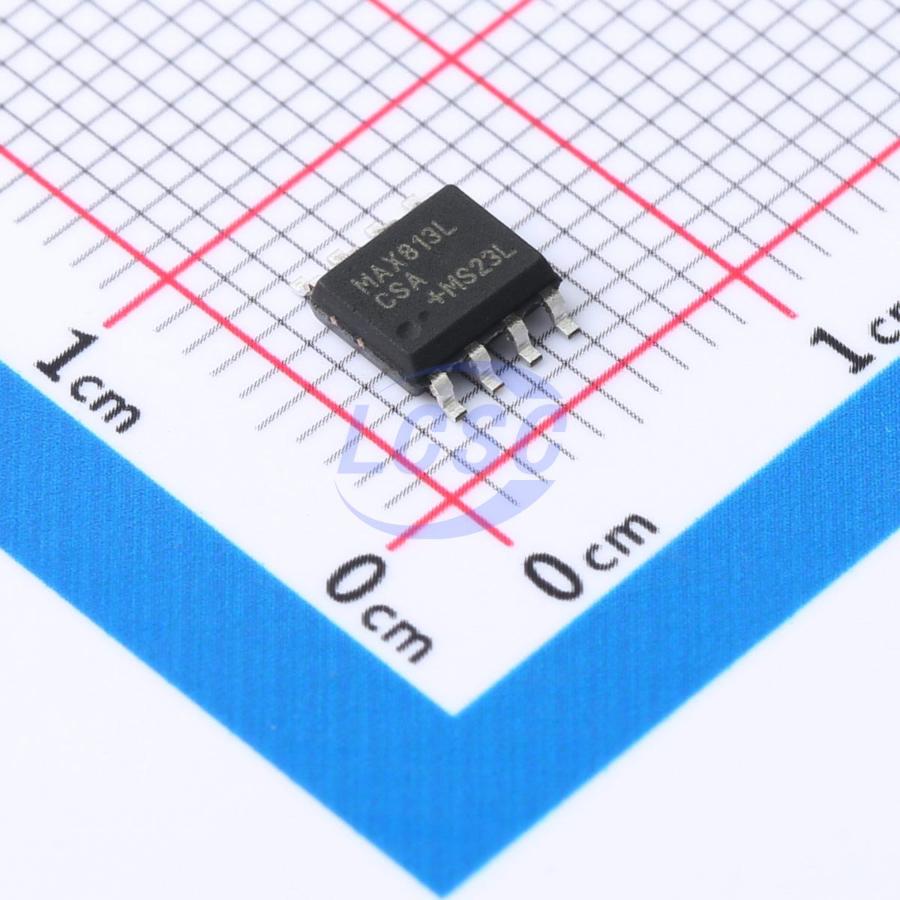

MAX813LCSA
Supervisor Push-Pull 1 Channel SOP-8
Power supply voltage and battery voltage monitoring chips
- Manufacturer
- MSKSEMI
- Manufacturer part #
- MAX813LCSA
- Store part #
- C6454440
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,190 in stock
#C6454440
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹88.24 | ₹88.24 |
| 10+ | ₹70.48 | ₹704.80 |
| 30+ | ₹61.59 | ₹1,847.70 |
| 100+ | ₹52.70 | ₹5,270.00 |
| 500+ | ₹48.57 | ₹24,285.00 |
| 1,000+ | ₹45.97 | ₹45,970.00 |
1 × ₹88.24
₹88.24
excl. GST
₹104.12 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX813LCSA
₹88.24 for 1 + GST
Specifications
- Reset Timeout
- 200ms
- Operating Temperature
- -40℃~+85℃@(TA)
- output type
- Push-pull
- Function
- Manual reset input
- Reset Active Level
- Active High
- standby current
- 75uA
- Voltage - Supply
- 5V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.65V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.114 g
Overview
706P/R/S/T/J, 708R/S/T/J, 705/6/7/8, and 813L are primarily used to monitor power supply and battery voltages. A reset signal is generated when the supply voltage falls below 2.63V (706P/R, 708R), 2.93V (706S, 708S), 3.08V (706T, 708T), 4.00V (706J, 708J), 4.40V (706/708), or 4.65V (705/707, 813L). 706P/R/S/T/J, 705/706/813L feature a watchdog circuit with a 1.6-second reset timeout. The watchdog timer can be disabled by leaving the WDI pin floating. 708R/S/T/J, 707/708 provide both active-high and active-low reset outputs, but have no watchdog function. The 706P is functionally identical to the 706R except that its reset output is active-high. The 813L is functionally identical to the 705 except that its reset output is active-high. - Built-in 1.25V comparator for battery low-voltage monitoring - Manual reset supported on all devices - Available in 8-pin DIP, SOP, and compact MSOP packages
Applications
- Computers and Controllers
- Embedded Systems
- Battery-Powered Systems
- Smart Instruments
- Wireless Communication Systems
- PDAs and Portable Devices
Key features
- Low power consumption, fully compatible with MAX706P/R/S/T, MAX708R/S/T, MAX705/6/7/8, MAX813L: supply current (100μA)
- 6 selectable high-precision voltage monitoring options
- Manual reset input
- Built-in 1.25V voltage monitor
- Watchdog function (706P/R/S/T/J, 705/6/813L), 200ms reset delay output
- 3 selectable reset signal options
- 8-pin DIP, SOP, MSOP packages
