JSMSEMIDatasheet (PDF)

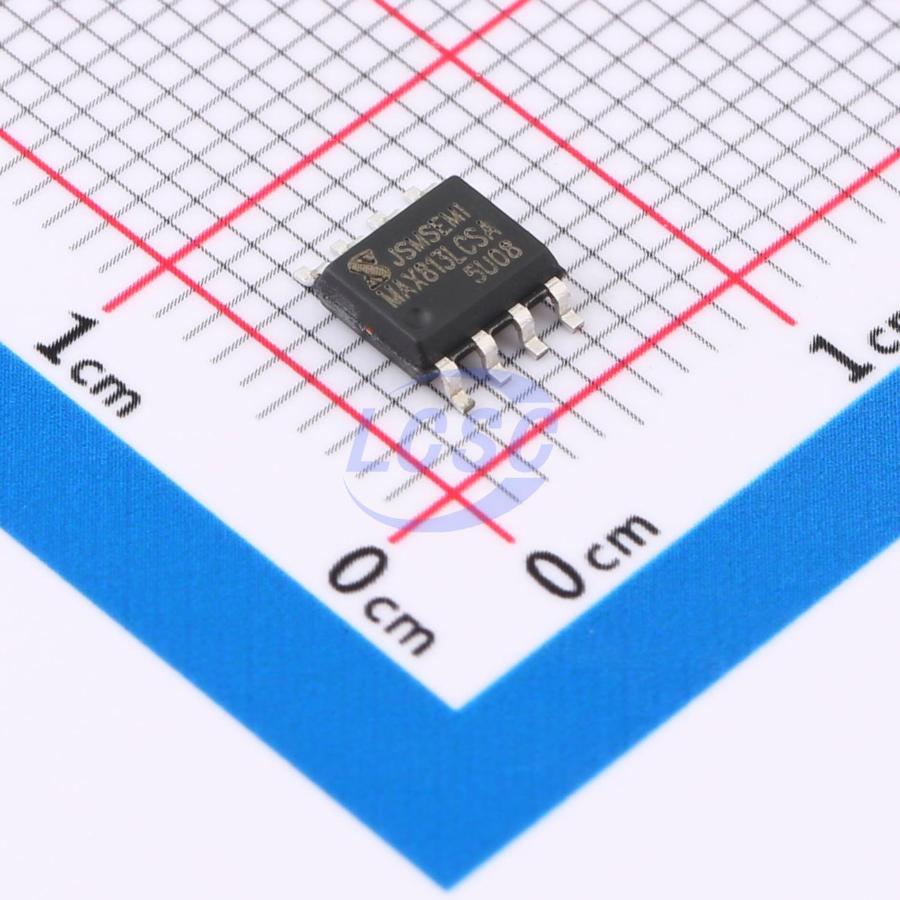

MAX813LCSA-JSM
200ms Active High 5V~5.5V SOP-8 Supervisors RoHS
SOP-8ROHS CompliantActive
Low-cost voltage monitoring chip
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MAX813LCSA-JSM
- Store part #
- C49006658
- Package / case
- SOP-8
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,502 in stock
#C49006658
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹142.24 | ₹142.24 |
| 10+ | ₹114.48 | ₹1,144.80 |
| 30+ | ₹100.61 | ₹3,018.30 |
| 100+ | ₹86.95 | ₹8,695.00 |
| 500+ | ₹78.71 | ₹39,355.00 |
| 1,000+ | ₹74.38 | ₹74,380.00 |
1 × ₹142.24
₹142.24
excl. GST
₹167.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX813LCSA-JSM
₹142.24 for 1 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Reset Timeout
- 200ms
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active High
- standby current
- 75uA
- Voltage - Supply
- 5V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 4.65V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.166 g
Overview
Applications
- Computers and controllers
- Embedded systems
- Battery-powered systems
- Smart instruments
- Wireless communication systems
- PDAs and portable devices
Key features
- Low power consumption, fully compatible with imported brands MAX706P/R/S/T, MAX708R/S/T, MAX705/6/7/8, MAX813L
- 6 high-precision voltage monitoring options
- Manual reset input
- Built-in 1.25V voltage monitor
- Watchdog function (MAX706P/R/S/T/J, MAX705/6/813L)
- 200ms reset delay output
- 3 reset signal options
- 8-pin DIP, SOP, MSOP packages
