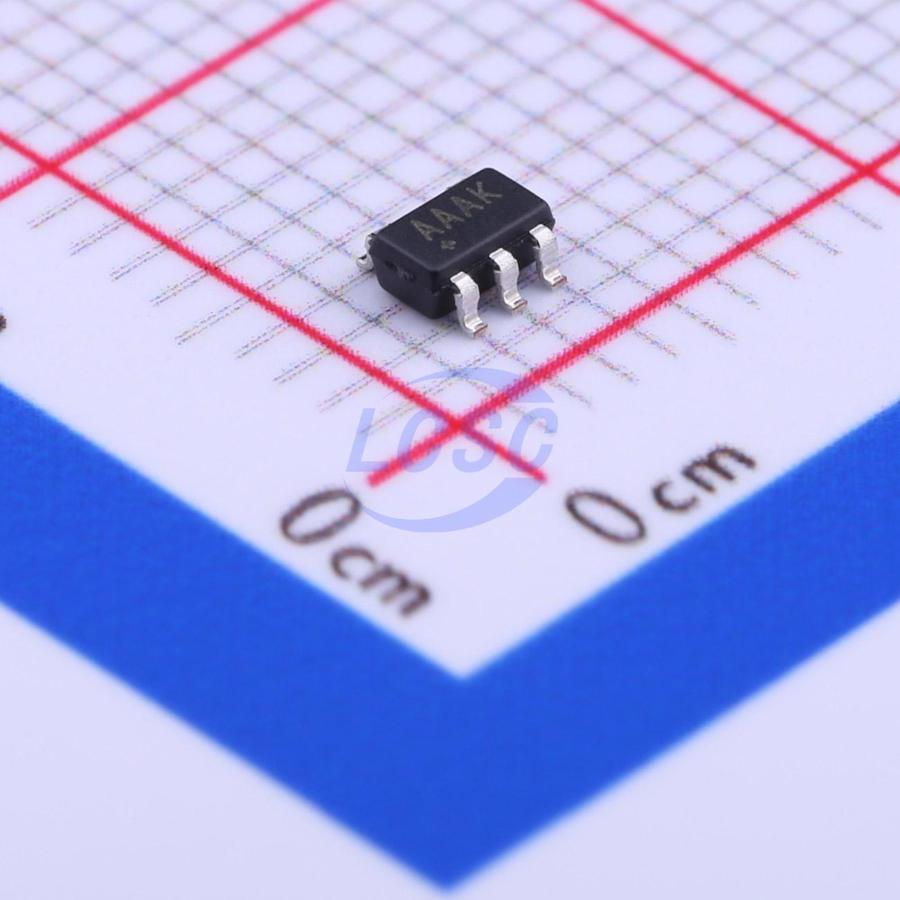

MAX823TEUK+T
200ms Active Low 3.15V~3.6V 1 SOT-23-5 Supervisors RoHS
5-Pin Microprocessor Supervisory Circuits With Watchdog Timer and Manual Reset
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX823TEUK+T
- Store part #
- C31529
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,970 in stock
#C31529
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹170.28 | ₹170.28 |
| 10+ | ₹142.49 | ₹1,424.90 |
| 30+ | ₹128.58 | ₹3,857.40 |
| 100+ | ₹114.69 | ₹11,469.00 |
| 500+ | ₹98.83 | ₹49,415.00 |
| 1,000+ | ₹94.49 | ₹94,490.00 |
1 × ₹170.28
₹170.28
excl. GST
₹200.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX823TEUK+T
₹170.28 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- Voltage - Supply
- 3.15V~3.6V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MAX823/MAX824/MAX825 microprocessor (μP) supervisory circuits combine reset output, watchdog, and manual reset input functions in 5-pin SOT23 and SC70 packages. They significantly improve system reliability and accuracy compared to separate ICs or discrete components. The MAX823/MAX824/MAX825 are specifically designed to ignore fast transients on Vcc. Seven preprogrammed reset threshold voltages are available. All three devices have an active-low reset output, which is guaranteed to be in the correct state for Vcc down to 1V. The MAX823 also offers a watchdog input and manual reset input. The MAX824 offers a watchdog input and a complementary active-high reset. The MAX825 offers a manual reset input and a complementary active-high reset.
Applications
- Computers and Controllers
- Embedded Controllers
- Intelligent Instruments
- Automotive Systems
- Critical μP Monitoring
- Portable/Battery-Powered Equipment
Key features
- Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power Supplies
- Operating Current: 6μA (MAX823L/M) (SC70), 2μA (MAX825T/S/R/Z/Y) (SC70)
- Fully Specified Over Temperature
- 140ms min Power-On Reset
- Guaranteed RESET Valid to Vcc = 1V
- Power-Supply Transient Immunity
- Watchdog Timer with 1.6s Timeout (MAX823/MAX824)
- Manual Reset Input (MAX823/MAX825)
- No External Components
