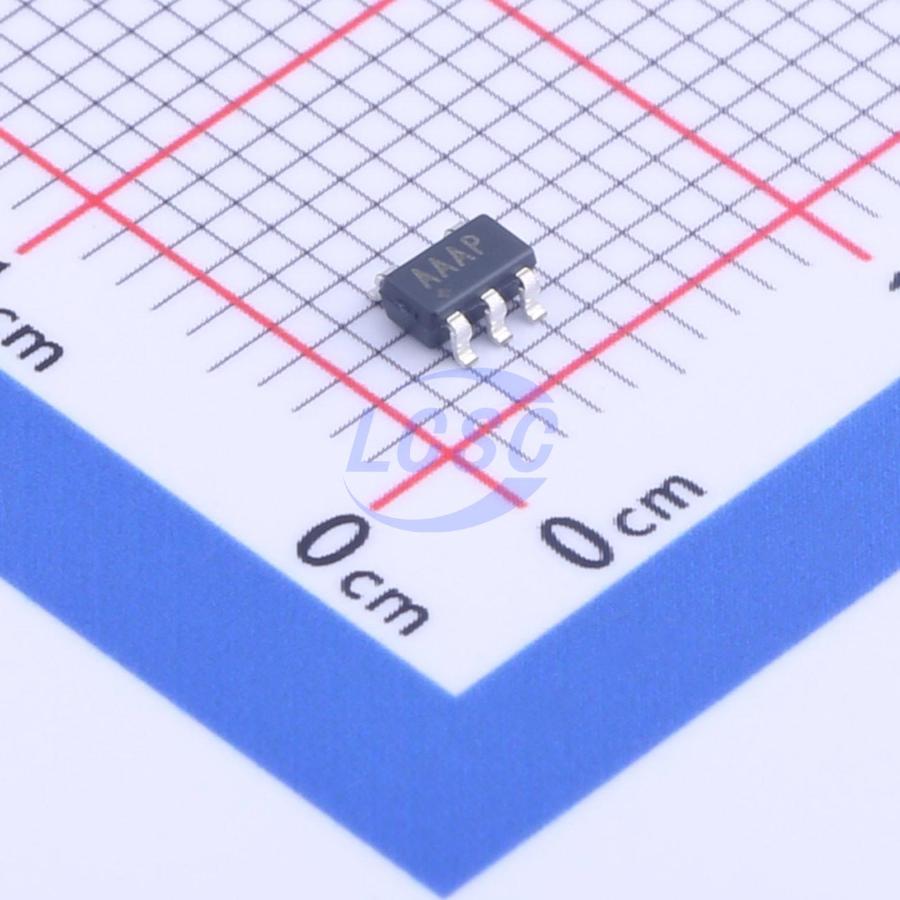

MAX824TEUK+T
Supervisor Open Drain 1 Channel SOT-23-5
SOT-23-5ROHS3 CompliantActive
5-Pin Microprocessor Supervisory Circuits With Watchdog Timer and Manual Reset
- Manufacturer
- MAXIM
- Manufacturer part #
- MAX824TEUK+T
- Store part #
- C409753
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,473 in stock
#C409753
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹129.87 | ₹129.87 |
| 10+ | ₹106.41 | ₹1,064.10 |
| 30+ | ₹94.69 | ₹2,840.70 |
| 100+ | ₹82.95 | ₹8,295.00 |
| 500+ | ₹76.01 | ₹38,005.00 |
| 1,000+ | ₹72.54 | ₹72,540.00 |
1 × ₹129.87
₹129.87
excl. GST
₹153.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX824TEUK+T
₹129.87 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 5uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 3.08V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.028 g
Overview
Applications
- Computers and Controllers
- Embedded Controllers
- Intelligent Instruments
- Automotive Systems
- Critical μP Monitoring
- Portable/Battery-Powered Equipment
- Precision Monitoring of +2.5V, +3V, +3.3V, and +5V Power Supplies
Key features
- 5-pin SOT23 and SC70 packages combine reset output, watchdog, and manual reset input functions
- Significantly improve system reliability and accuracy compared to separate ICs or discrete components
- Specifically designed to ignore fast transients on VCC
- Seven preprogrammed reset threshold voltages are available
- All three devices have an active-low reset output, guaranteed to be in the correct state for VCC down to 1V
- The MAX823 offers a watchdog input and manual reset input
- The MAX824 offers a watchdog input and a complementary active-high reset
- The MAX825 offers a manual reset input and a complementary active-high reset
