onsemiDatasheet (PDF)

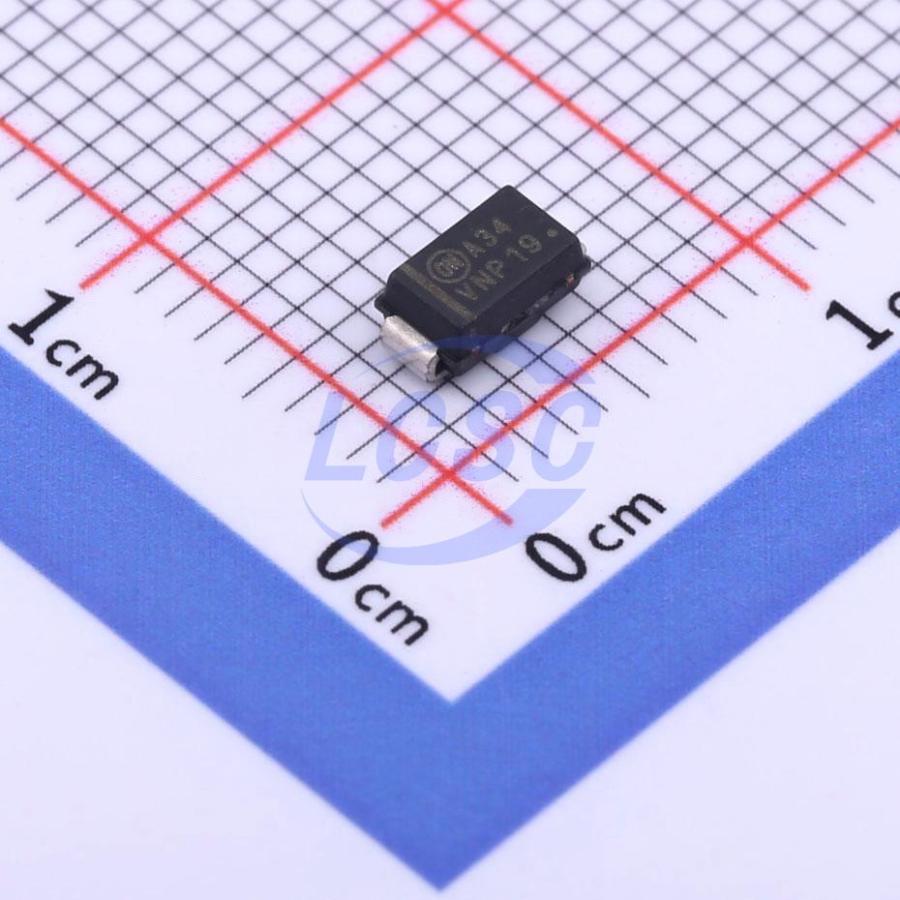

MBRA340T3G
Diode 40V 3A Surface Mount SMA(DO-214AC)
PopularSMA(DO-214AC)ROHS3 CompliantActive
DIODE SCHOTTKY 40V SMA(DO-214AC)
- Manufacturer
- onsemi
- Manufacturer part #
- MBRA340T3G
- Store part #
- C26178
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,12,905 in stock
#C26178
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.30 | ₹141.50 |
| 50+ | ₹21.78 | ₹1,089.00 |
| 150+ | ₹18.59 | ₹2,788.50 |
| 500+ | ₹13.30 | ₹6,650.00 |
| 2,500+ | ₹12.52 | ₹31,300.00 |
| 5,000+ | ₹12.04 | ₹60,200.00 |
5 × ₹28.30
₹141.50
excl. GST
₹166.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
MBRA340T3G
₹141.50 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 450mV@3A
- Reverse Leakage Current (Ir)
- 300uA@40V
- Non-Repetitive Peak Forward Surge Current
- 100A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.132 g
Overview
Employing the Schottky Barrier principle in a large area metal-to-silicon power diode. State of the art geometry features epitaxial construction with oxide passivation and metal overlay contact. Ideally suited for low voltage, high frequency rectification, or as free wheeling and polarity diodes in surface mount applications where compact size and weight are critical to the system.
Key features
- Small Compact Surface Mountable Package with J-Bent Leads
- Rectangular Package for Automated Handling
- Highly Stable Oxide Passivated Junction
- Very Low Forward Voltage Drop
- Guardring for Stress Protection
- NRVBA Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC-Q101 Qualified and PPAP Capable
- These Devices are Po-Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SSL34#C382787Jingdao Microelectronics · SMA | Jingdao Microelectronics | SMA | 20,710 | ₹9.98 · 20,710 in stock | View |
 | SS36L#C5365401JUXING · DO-214AC(SMA) | JUXING | DO-214AC(SMA) | 3,130 | ₹7.34 · 3,130 in stock | View |
 | SS56L#C5295577JSCJ · SMAG | JSCJ | SMAG | 17,595 | ₹25.11 · 17,595 in stock | View |
 | SS54L#C3031869JSCJ · SMAG | JSCJ | SMAG | 205 | ₹23.18 · 205 in stock | View |
 | SS34L#C18216306Jingdao Microelectronics · SMA | Jingdao Microelectronics | SMA | 4,470 | ₹8.23 · 4,470 in stock | View |
