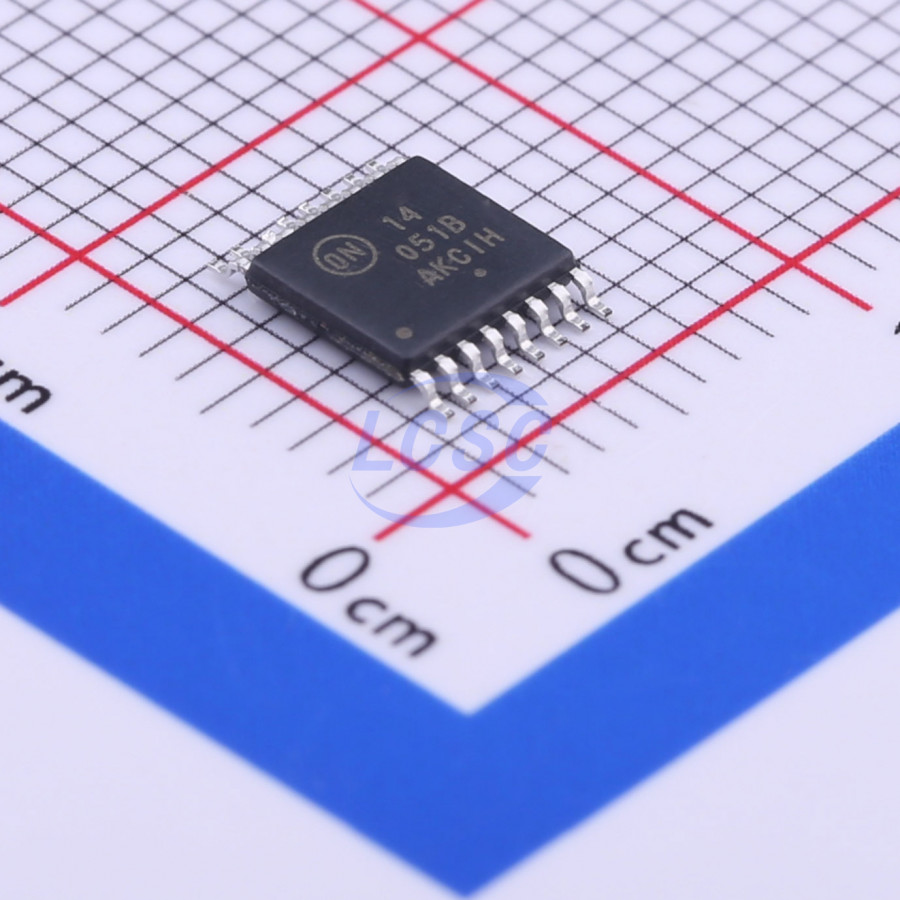

MC14051BDTR2G

The MC14051B, MC14052B, and MC14053B analog multiplexers are digitally−controlled analog switches. The MC14051B effectively implements an SP8T solid state switch, the MC14052B a DP4T, and the MC14053B a Triple SPDT. All three devices feature low ON impedance and very low OFF leakage current. Control of analog signals up to the complete supply voltage range can be achieved.

Key features

• Triple Diode Protection on Control Inputs
• Switch Function is Break Before Make
• Supply Voltage Range =3.0 Vdc to 18 Vdc
• Analog Voltage Range (VDD - VEE)=3.0 to 18 V
• Linearized Transfer Characteristics
• Low−noise - 12 nV/√Cycle, f≥1.0 kHz Typical
• Pin−for−Pin Replacement for CD4051, CD4052, and CD4053
• NLV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
• These Devices are Pb−Free and are RoHS Compliant
