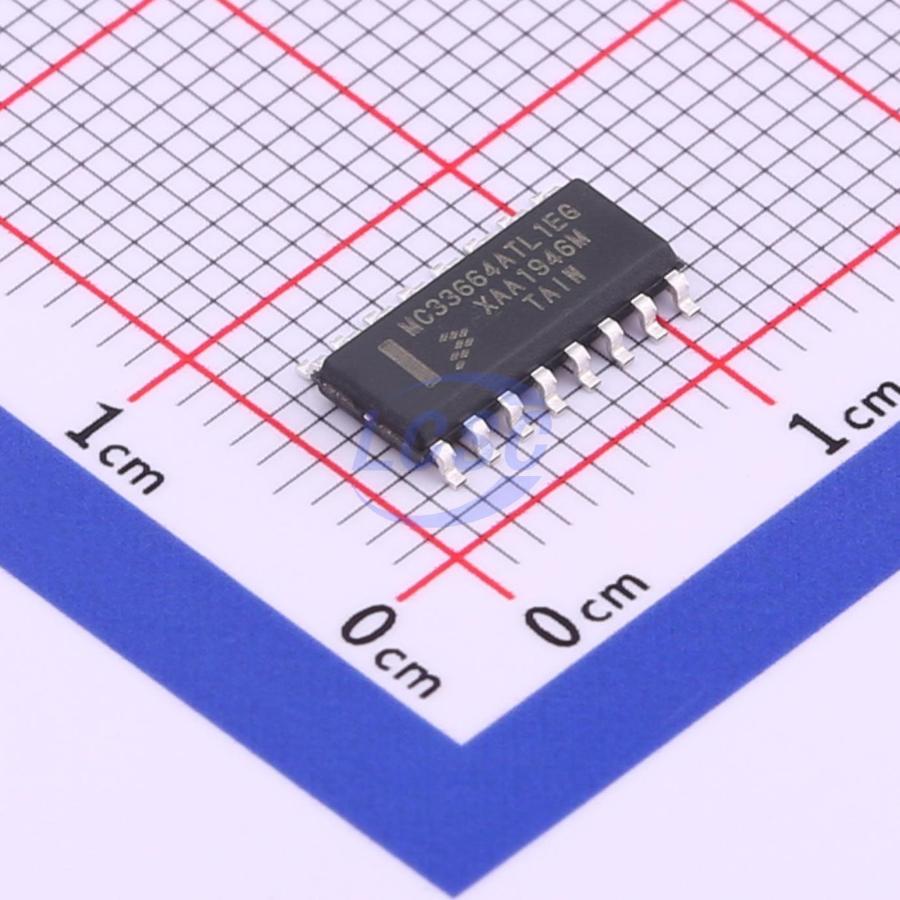

MC33664ATL1EGR2
SPI 2Mbps SO-16 Power Management - Specialized RoHS
SO-16ROHS3 CompliantActive
Isolated network high-speed transceiver
- Manufacturer
- NXP
- Manufacturer part #
- MC33664ATL1EGR2
- Store part #
- C727898
- Package / case
- SO-16
- Category
- Power Management - Specialized
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,659 in stock
#C727898
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹374.41 | ₹374.41 |
| 10+ | ₹313.35 | ₹3,133.50 |
| 30+ | ₹275.10 | ₹8,253.00 |
| 100+ | ₹236.00 | ₹23,600.00 |
| 500+ | ₹218.18 | ₹1,09,090.00 |
| 1,000+ | ₹210.57 | ₹2,10,570.00 |
1 × ₹374.41
₹374.41
excl. GST
₹441.80 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC33664ATL1EGR2
₹374.41 for 1 + GST
Specifications
- Features
- Wake-up function;Enable/shutdown function;Interrupt generation
- Operating Temperature
- -40℃~+125℃
- Interface
- SPI
- Data Rate
- 2Mbps
- Voltage - Supply
- 4.5V~5.5V
- Supply Current
- 40mA;3mA
- Quiescent Supply Current
- 30uA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.28 g
Overview
The MC33664 is a SMARTMOS transceiver physical layer transformer driver designed to interface a microcontroller conveniently to a high speed isolated communication network. MCU serial peripheral interface (SPI) data bits are directly converted to pulse bit information and transferred to the bus network. Slave response messages use the same structure to send pulse bit information to the MC33664, which is converted and sent back to the MCU as a SPI bit stream.
Applications
- Automotive communication network
- Industrial communication network
- Utility vehicle battery systems
- Forklift/mining battery systems
- Battery backup systems
Key features
- 2.0 Mbit/s isolated network communication rate
- Dual SPI architecture for message confirmation
- Robust conducted and radiated immunity with wake-up
- 3.3 V and 5.0 V compatible logic thresholds
- Low sleep mode current with automatic bus wake-up
- Ultra-low radiated emissions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC33664ATL1EG#C427709NXP · SO-16 | NXP | SO-16 | On request | Price on request | Quote |
