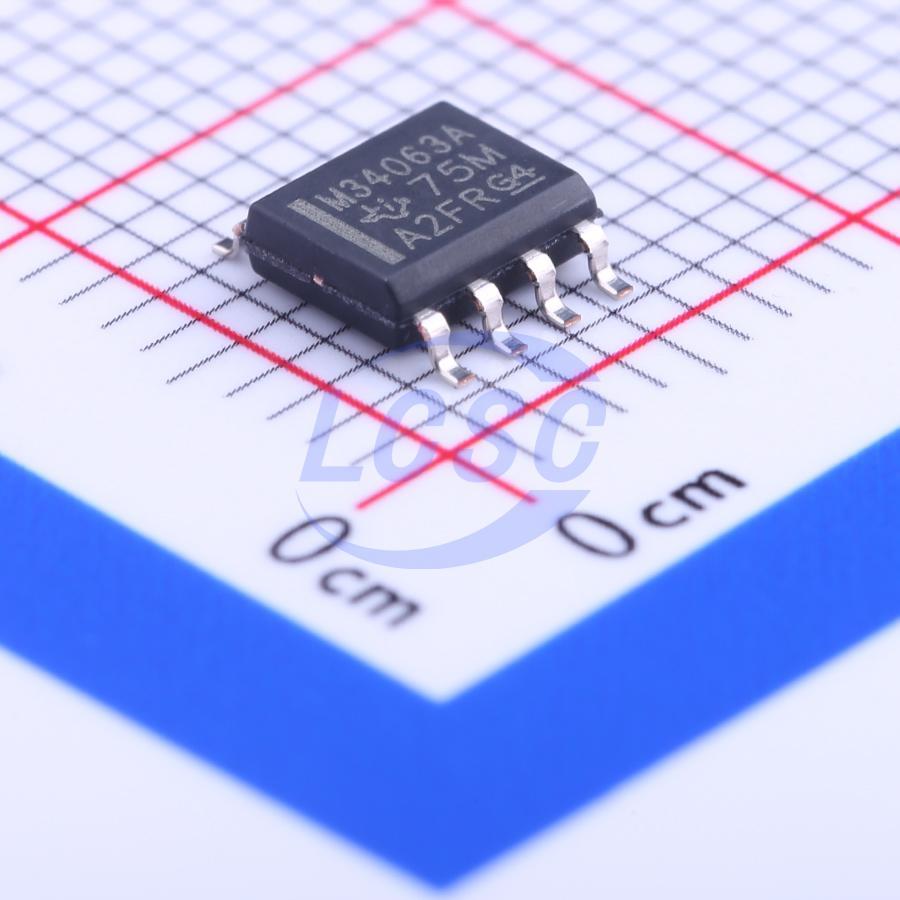

MC34063ADR
100kHz Adjustable 1.5A SOIC-8 Voltage Regulators - DC DC Switching Regulators RoHS
SOIC-8ROHS CompliantActive
1.5-A Peak Boost/Buck/lnverting Switching Regulators
- Manufacturer
- TI
- Manufacturer part #
- MC34063ADR
- Store part #
- C100023
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
77,320 in stock
#C100023
Stock & price checked 44 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹28.63 | ₹143.15 |
| 50+ | ₹22.57 | ₹1,128.50 |
| 150+ | ₹19.62 | ₹2,943.00 |
| 500+ | ₹16.97 | ₹8,485.00 |
| 2,500+ | ₹16.25 | ₹40,625.00 |
| 5,000+ | ₹15.81 | ₹79,050.00 |
5 × ₹28.63
₹143.15
excl. GST
₹168.92 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC34063ADR
₹143.15 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃@(TA)
- Frequency - Switching
- 100kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Buck;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.172 g
Overview
The MC33063A and MC34063A devices are easy-to-use ICs containing all the primary circuitry needed for building simple DC-DC converters. These devices primarily consist of an internal temperature-compensated reference, a comparator, an oscillator, a PWM controller with active current limiting, a driver, and a high-current output switch. Thus, the devices require minimal external components to build converters in the boost, buck, and inverting topologies.
Applications
- Blood Gas Analyzers: Portable
- Cable Solutions HMIs (Human Machine Interfaces)
- Telecommunications Portable Devices
- Consumer & Computing Test & Measurement
Key features
- Wide Input Voltage Range: 3 V to 40 V
- High Output Switch Current: Up to 1.5 A
- Adjustable Output Voltage
- Oscillator Frequency Up to 100 kHz
- Precision Internal Reference: 2%
- Short-Circuit Current Limiting
- Low Standby Current
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC34063AD#C2873086TI · SOIC-8 | TI | SOIC-8 | 538 | ₹58.74 · 538 in stock | View |
 | MC34063M/TR#C234207HGSEMI · SOP-8 | HGSEMI | SOP-8 | 6,350 | ₹17.90 · 6,350 in stock | View |
 | HT83063AREZ#C2960952HTCSEMI · ESOP-8 | HTCSEMI | ESOP-8 | 185 | ₹32.93 · 185 in stock | View |
 | HT84063AREZ#C2960965HTCSEMI · SOP-8-EP | HTCSEMI | SOP-8-EP | 55 | ₹20.73 · 55 in stock | View |
 | HX34063-S#C41399173ZHHXDZ · SOP-8 | ZHHXDZ | SOP-8 | 2,255 | ₹14.63 · 2,255 in stock | View |
