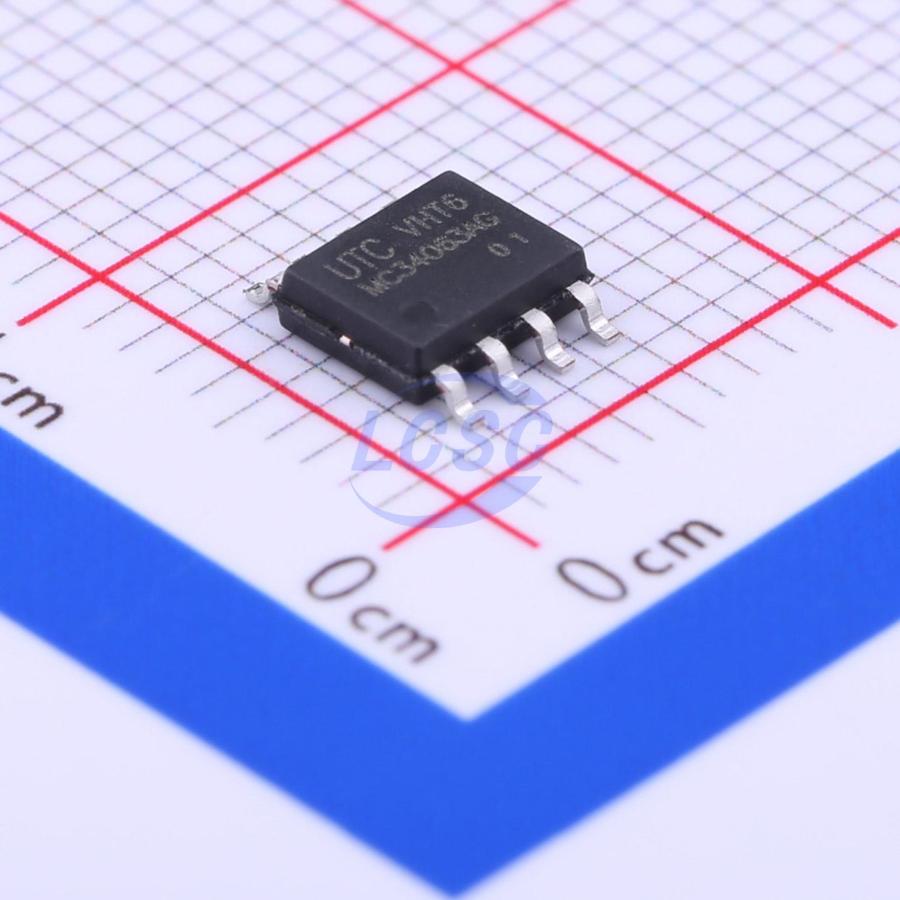

MC34063AG-S08-R
38kHz Adjustable 1.25V~30V 1.5A SOP-8 Voltage Regulators - DC DC Switching Regulators
SOP-8RoHSActive
MC34063A DC TO DC CONVERTER CONTROLLER
- Manufacturer
- UTC
- Manufacturer part #
- MC34063AG-S08-R
- Store part #
- C71111
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17,545 in stock
#C71111
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.13 | ₹70.65 |
| 50+ | ₹11.34 | ₹567.00 |
| 150+ | ₹9.95 | ₹1,492.50 |
| 500+ | ₹8.90 | ₹4,450.00 |
| 2,500+ | ₹7.96 | ₹19,900.00 |
| 5,000+ | ₹7.55 | ₹37,750.00 |
5 × ₹14.13
₹70.65
excl. GST
₹83.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC34063AG-S08-R
₹70.65 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Frequency - Switching
- 38kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Buck
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Voltage
- 1.25V~30V
- Output Current
- 1.5A
- Quiescent Current
- 2.7mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.22 g
Overview
The UTC MC34063A is a monolithic regulator subsystem, intended for use as DC to DC converter. This device contains a temperature compensated band gap reference, a duty-cycle control oscillator, driver and high current output switch. It can be used for step down, step-up or inverting switching regulators as well as for series pass regulators.
Key features
- Operation from 3.0V to 40V.
- Short circuit current limiting.
- Low standby current.
- Output switch current of 1.5A without external transistors.
- Frequency of operation from 100Hz to 100kHz.
- Step-up, step-down or inverting switch regulators.
