STDatasheet (PDF)

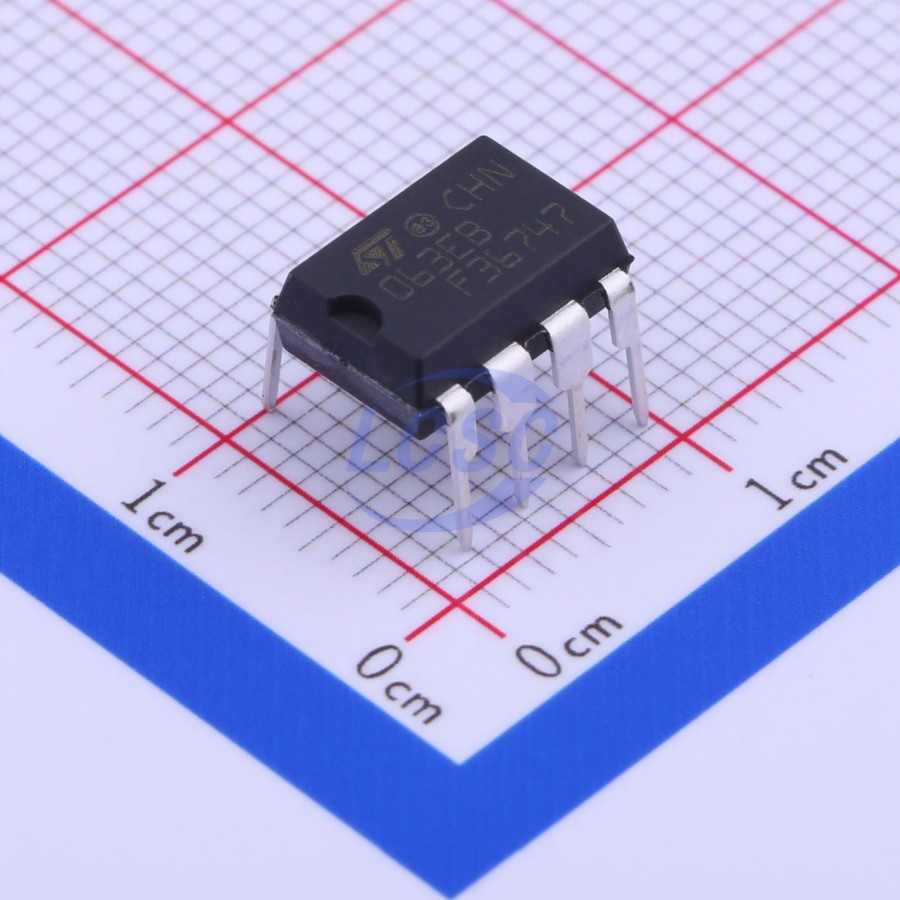

MC34063EBN
33kHz Adjustable 1.5A DIP-8 Voltage Regulators - DC DC Switching Regulators RoHS
DIP-8ROHS3 CompliantActive
- Manufacturer
- ST
- Manufacturer part #
- MC34063EBN
- Store part #
- C283288
- Package / case
- DIP-8
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,197 in stock
#C283288
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.98 | ₹59.98 |
| 10+ | ₹53.46 | ₹534.60 |
| 30+ | ₹50.21 | ₹1,506.30 |
| 100+ | ₹47.16 | ₹4,716.00 |
| 500+ | ₹45.21 | ₹22,605.00 |
| 1,000+ | ₹44.12 | ₹44,120.00 |
1 × ₹59.98
₹59.98
excl. GST
₹70.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC34063EBN
₹59.98 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃@(TA)
- Frequency - Switching
- 33kHz
- Function
- Boost;Step-down type
- Number of Outputs
- 1
- Features
- Overcurrent Protection
- Output Type
- Adjustable
- Topology
- Boost;Buck;Inverting
- Operating Voltage
- 3V~40V
- Switch tube (built-in/external)
- Built-in
- Output Current
- 1.5A
- Quiescent Current
- 1.5mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.12 g
Overview
The MC34063A/E series is a monolithic control circuit which delivers the main functions for DCDC voltage converting. The device contains an internal temperature compensated reference, comparator, duty cycle controlled oscillator with an active current limit circuit, driver and high current output switch. Output voltage is adjustable through two external resistors with a 2% reference accuracy. Employing a minimum number of external components, the MC34063A/E device series is designed for step-down, step-up and voltageinverting applications.
Key features
- Output switch current in excess of 1.5 A
- 2% reference accuracy
- Low quiescent current: 2.5 mA (typ.)
- Operating from 2 V to 40 V
- Frequency operation to 100 kHz Active current limiting
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | HX34063-P#C41399176ZHHXDZ · DIP-8 | ZHHXDZ | DIP-8 | 430 | ₹21.50 · 430 in stock | View |
 | MC34063ABD#C51927324GREENMICRO · DIP-8 | GREENMICRO | DIP-8 | 60 | ₹17.49 · 60 in stock | View |
