TECH PUBLICDatasheet (PDF)

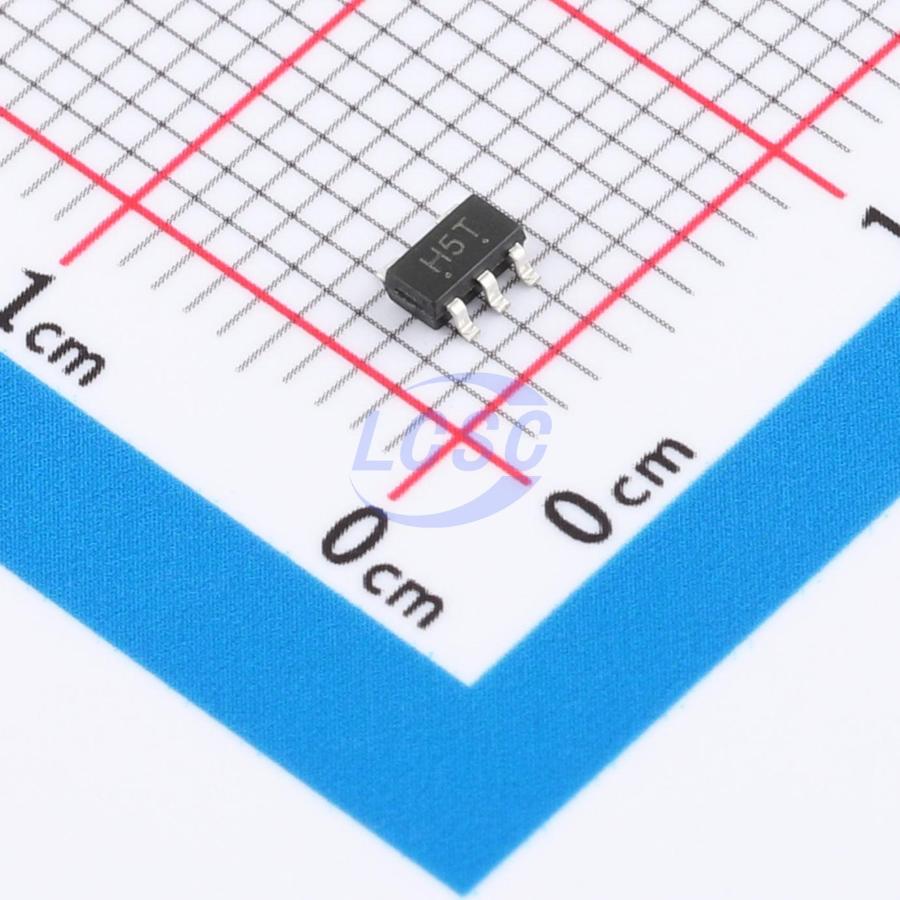

MC74HC1G04DTT1G-TP
2V~6V 9ns@6V,50pF 10uA 1 SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC1G04DTT1G-TP
- Store part #
- C52205170
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,980 in stock
#C52205170
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.73 | ₹57.30 |
| 100+ | ₹4.52 | ₹452.00 |
| 300+ | ₹3.92 | ₹1,176.00 |
| 3,000+ | ₹3.45 | ₹10,350.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.91 | ₹26,190.00 |
10 × ₹5.73
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1G04DTT1G-TP
₹57.30 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;330mV
- Propagation Delay
- 9ns@6V,50pF
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V;4.18V;5.68V
- Quiescent Current(Iq)
- 10uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 2.6mA
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The MC74HC1G04 is a high-speed CMOS inverter fabricated using silicon gate CMOS technology. It combines the low-power characteristics of CMOS with speed comparable to the LS-TTL series. The internal circuit features a 3-stage buffered structure, providing wide noise margins and stable output.
Key features
- Basic gate function offered as part of Renesas unified logic series.
- Embossed carrier tape packaging for high-speed automated placement.
- Electrical characteristics equivalent to MC74HC1G04.
- Supply voltage range: 2 ~ 6 V.
- Operating temperature range: -40 ~ +85°C.
- IOH = IOL = 2 mA (min).
