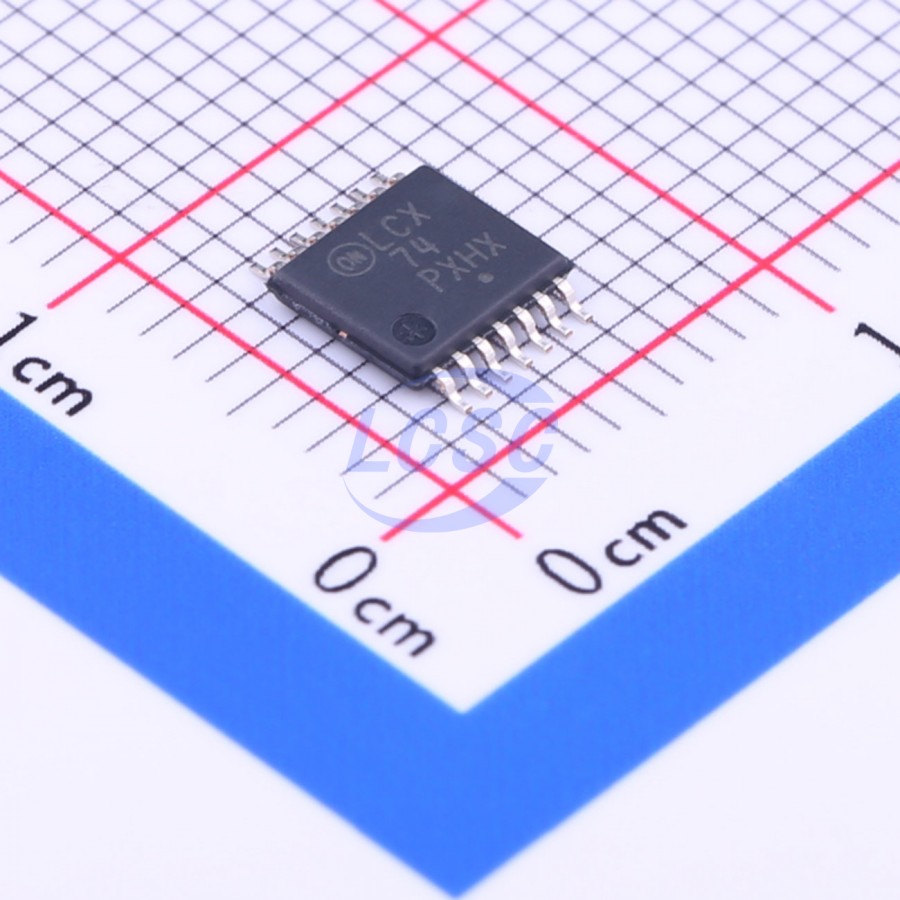

MC74LCX74DTR2G

The MC74LCX74 is a high performance, dual D−type flip−flop with asynchronous clear and set inputs and complementary (O, O) outputs. It operates from a 2.3 to 3.6 V supply. High impedance TTL compatible inputs significantly reduce current loading to input drivers while TTL compatible outputs offer improved switching noise performance. A VI specification of 5.5 V allows MC74LCX74 inputs to be safely driven from 5.0 V devices. The MC74LCX74 consists of 2 edge−triggered flip−flops with individual D−type inputs. The flip−flop will store the state of individual D inputs, that meet the setup and hold time requirements, on the LOW−to−HIGH Clock (CP) transition.

Key features

• Designed for 2.3 V to 3.6 V VCC Operation
• 5.0 V Tolerant Inputs − Interface Capability With 5.0 V TTL Logic
• LVTTL Compatible
• LVCMOS Compatible
• 24 mA Balanced Output Sink and Source Capability
• Near Zero Static Supply Current in All Three Logic States (10 μA) Substantially Reduces System Power Requirements
• Latchup Performance Exceeds 500 mA
• ESD Performance: Human Body Model > 2000 V Machine Model > 200 V
• These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
