onsemiDatasheet (PDF)

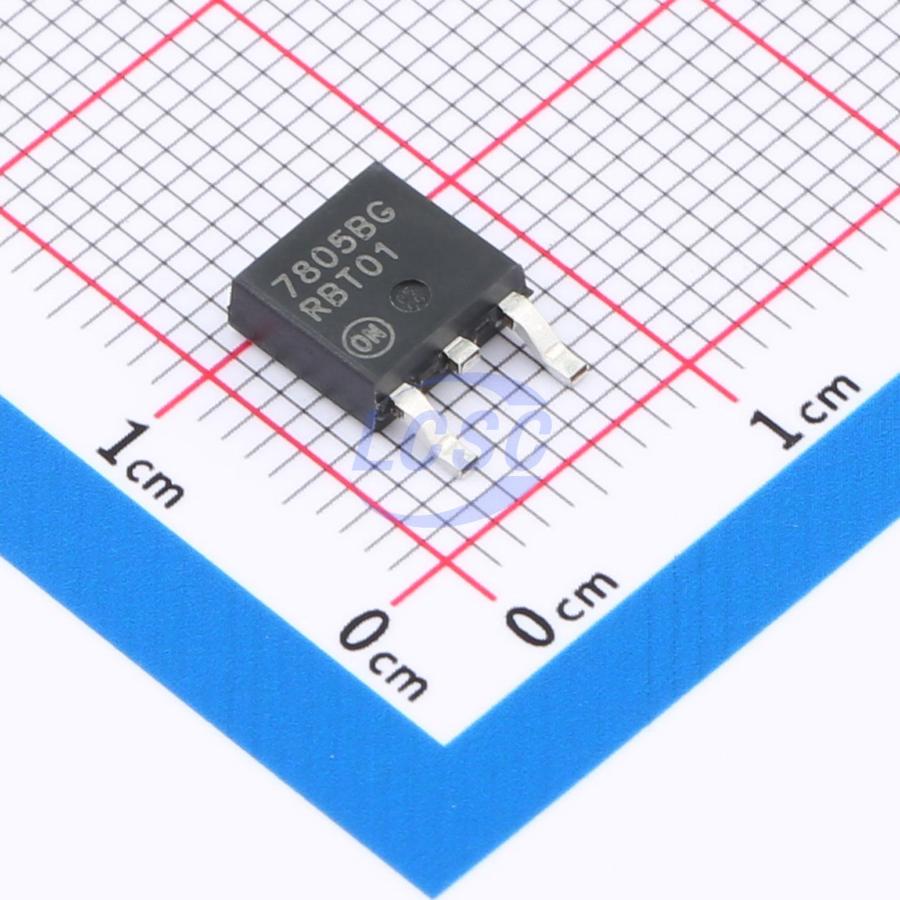

MC7805BDTG
5V Positive Fixed DPAK Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAKROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805BDTG
- Store part #
- C83632
- Package / case
- DPAK
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,935 in stock
#C83632
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.59 | ₹202.95 |
| 50+ | ₹32.41 | ₹1,620.50 |
| 150+ | ₹28.56 | ₹4,284.00 |
| 525+ | ₹24.20 | ₹12,705.00 |
| 2,475+ | ₹22.25 | ₹55,068.75 |
| 5,025+ | ₹21.09 | ₹1,05,977.25 |
5 × ₹40.59
₹202.95
excl. GST
₹239.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 75 per tube
MC7805BDTG
₹202.95 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 35V
- Output Current
- 1A
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection;Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 75 / Tube
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.466 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CJ78D05#C89272JSCJ · TO-252-2L | JSCJ | TO-252-2L | 90,765 | ₹23.21 · 90,765 in stock | View |
 | MC7805CDTG#C897464onsemi · DPAK | onsemi | DPAK | 963 | ₹56.51 · 963 in stock | View |
 | PJ78D05TE#C36493733PJSEMI · TO-252 | PJSEMI | TO-252 | 70 | ₹22.19 · 70 in stock | View |
 | MC7805BDT(TOKMAS)#C7525419Tokmas · TO-252-2(DPAK) | Tokmas | TO-252-2(DPAK) | 1,460 | ₹21.71 · 1,460 in stock | View |
 | L78M05AGT#C51898334GREENMICRO · TO-252-2 | GREENMICRO | TO-252-2 | 800 | ₹9.66 · 800 in stock | View |
