onsemiDatasheet (PDF)

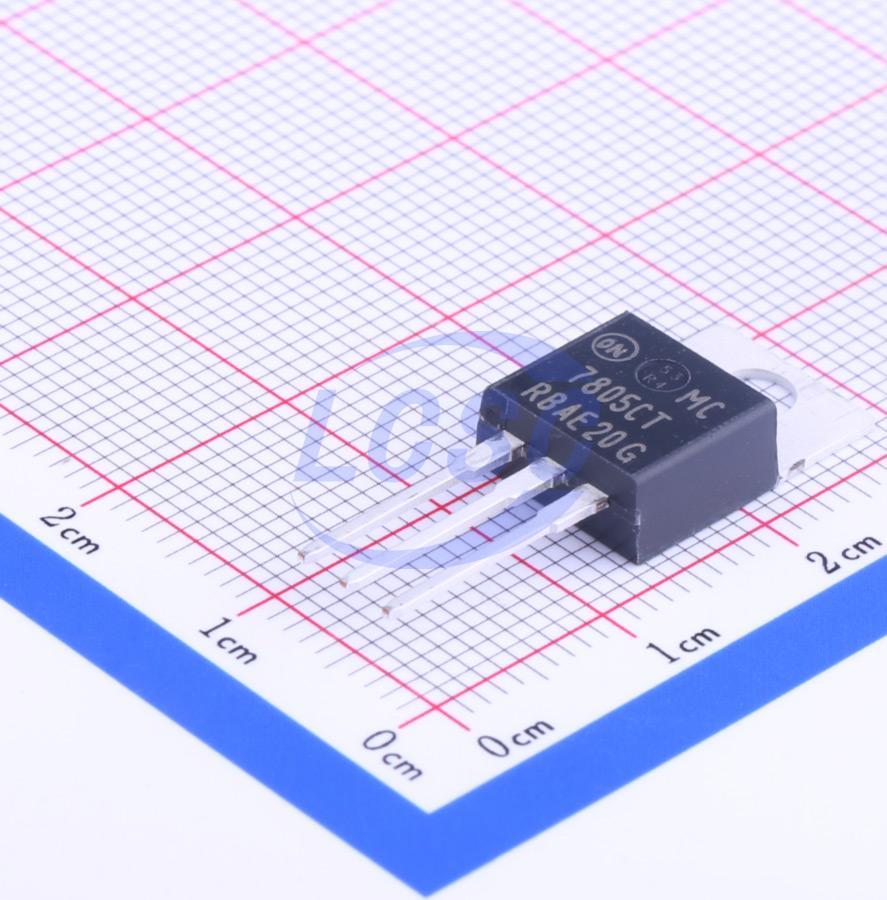

MC7805CTG
5V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7805CTG
- Store part #
- C22456
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,848 in stock
#C22456
Stock & price checked 18 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹60.70 | ₹60.70 |
| 10+ | ₹47.20 | ₹472.00 |
| 50+ | ₹40.91 | ₹2,045.50 |
| 100+ | ₹33.72 | ₹3,372.00 |
| 500+ | ₹30.46 | ₹15,230.00 |
| 1,000+ | ₹28.50 | ₹28,500.00 |
1 × ₹60.70
₹60.70
excl. GST
₹71.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7805CTG
₹60.70 for 1 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 3.2mA
- Output Configuration
- Positive
- Operating Voltage
- 20V
- Output Current
- 1A
- Features
- Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Site and Control Changes
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC7805BTG#C45385onsemi · TO-220AB | onsemi | TO-220AB | 401 | ₹55.35 · 401 in stock | View |
 | MC7805ABTG#C190177onsemi · TO-220 | onsemi | TO-220 | 116 | ₹109.43 · 116 in stock | View |
 | CJ7805B-TBN-ATG#C17703095JSCJ · TO-220-3L | JSCJ | TO-220-3L | 5 | ₹32.57 · 5 in stock | View |
 | AS7805AT-E1#C127925DIODES · TO-220-3 | DIODES | TO-220-3 | 288 | ₹55.20 · 288 in stock | View |
 | BX7805EA#C53235419BORN · TO-220CB-3L | BORN | TO-220CB-3L | 995 | ₹29.64 · 995 in stock | View |
