onsemiDatasheet (PDF)

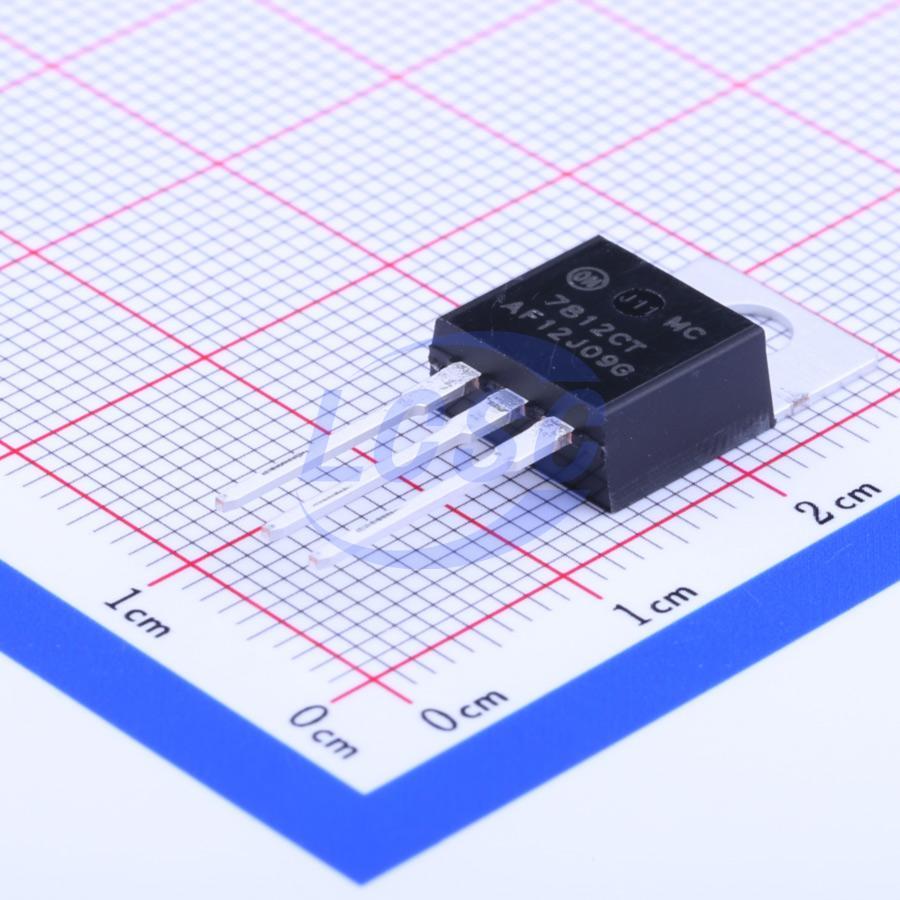

MC7812CTG
12V Positive Fixed TO-220 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-220ROHS3 CompliantActive
1.0 A Positive Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC7812CTG
- Store part #
- C81392
- Package / case
- TO-220
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,284 in stock
#C81392
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹35.64 | ₹35.64 |
| 10+ | ₹31.08 | ₹310.80 |
| 50+ | ₹28.03 | ₹1,401.50 |
| 100+ | ₹25.64 | ₹2,564.00 |
| 500+ | ₹24.55 | ₹12,275.00 |
| 1,000+ | ₹23.91 | ₹23,910.00 |
1 × ₹35.64
₹35.64
excl. GST
₹42.06 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 50 per tube
MC7812CTG
₹35.64 for 1 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Supply Current (Iq)
- 3.4mA
- Output Configuration
- Positive
- Operating Voltage
- 40V
- Output Current
- 1A
- Features
- Short Circuit Protection;Over Current Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
These voltage regulators are monolithic integrated circuits designed as fixed−voltage regulators for a wide variety of applications including local, on−card regulation. These regulators employ internal current limiting, thermal shutdown, and safe−area compensation. With adequate heatsinking they can deliver output currents in excess of 1.0 A. Although designed primarily as a fixed voltage regulator, these devices can be used with external components to obtain adjustable voltages and currents.
Key features
- Output Current in Excess of 1.0 A
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Output Voltage Offered in 1.5%, 2% and 4% Tolerance
- Available in Surface Mount D²PAK−3, DPAK−3 and Standard 3−Lead Transistor Packages
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | L7812CV(UMW)#C347292UMW · TO-220 | UMW | TO-220 | 21,615 | ₹24.28 · 21,615 in stock | View |
 | L7812CV#C105651ST · TO-220 | ST | TO-220 | 11,455 | ₹37.31 · 11,455 in stock | View |
 | L7812CV#C6430949GOODWORK · TO-220AB | GOODWORK | TO-220AB | 45 | ₹30.47 · 45 in stock | View |
 | MC7812ACTG#C87695onsemi · TO-220 | onsemi | TO-220 | 151 | ₹101.05 · 151 in stock | View |
 | AS7812AT-E1#C507894DIODES · TO-220 | DIODES | TO-220 | 80 | ₹48.86 · 80 in stock | View |
