ChipNobo

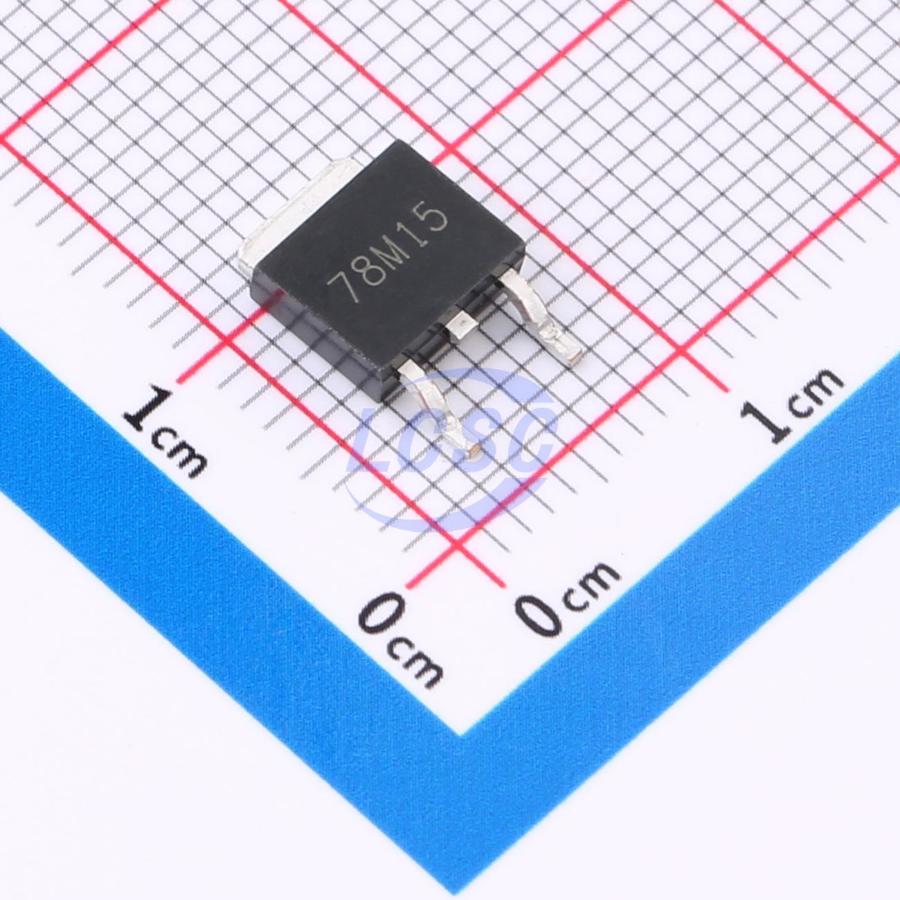

MC7815BDTRKG-CN

15V Positive Fixed TO-252 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS

TO-252ROHS CompliantActive

3-Terminal 1A Positive Voltage Regulator

Manufacturer: ChipNobo
Manufacturer part #: MC7815BDTRKG-CN
Store part #: C49006715
Package / case: TO-252
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,845 in stock

#C49006715

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹24.07	₹120.35
50+	₹18.89	₹944.50
150+	₹16.68	₹2,502.00
500+	₹13.92	₹6,960.00
2,500+	₹12.69	₹31,725.00
5,000+	₹11.95	₹59,750.00

Quantity (min 5, multiples of 5)

5 × ₹24.07

₹120.35

excl. GST

₹142.01 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 2,500 per reel

MC7815BDTRKG-CN

₹120.35 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: 15V
Number of Outputs: 1
Operating Temperature: 0℃~+125℃
Supply Current (Iq): 8mA
Output Configuration: Positive
Output Current: 1A
Output Type: Fixed
Features: Thermal shutdown;Short Circuit Protection

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.448 g

Overview

The MC7815BDTRKG series three-terminal positive voltage regulators are available in a TO-252 package with fixed output voltage, suitable for a wide range of applications.

Key features

Output current up to 1A
Output voltage 15V
Thermal overload protection
Short-circuit protection
Output transistor safe operating area protection
