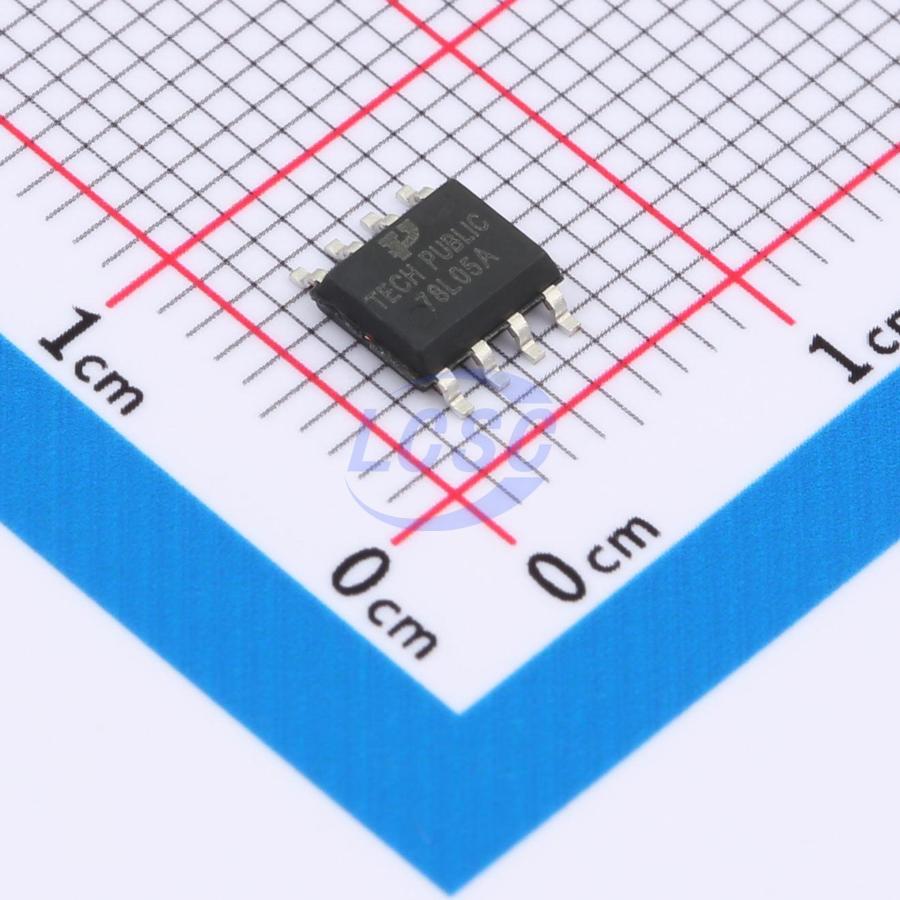

MC78L05ACDR2G-TP
Linear Voltage Regulator IC Positive Fixed 1 Output 100mA SOP-8
SOP-8RoHSActive
3-Terminal Voltage regulators
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC78L05ACDR2G-TP
- Store part #
- C41408005
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,230 in stock
#C41408005
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.82 | ₹54.10 |
| 50+ | ₹8.56 | ₹428.00 |
| 150+ | ₹7.42 | ₹1,113.00 |
| 500+ | ₹6.58 | ₹3,290.00 |
| 2,500+ | ₹5.90 | ₹14,750.00 |
| 5,000+ | ₹5.56 | ₹27,800.00 |
5 × ₹10.82
₹54.10
excl. GST
₹63.84 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
MC78L05ACDR2G-TP
₹54.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 6mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 20V
- Features
- Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.158 g
Overview
Applications
- HVAC Systems
- SMPS Post Regulation
- Test and Measurement Equipment
- Industrial Power Supplies
Key features
- 3-Terminal regulators
- output current up to 100mA
- Compact package: SOP8
- internal thermal overload protection and short-circuit limiting
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP78L05S8#C41408043TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 475 | ₹13.20 · 475 in stock | View |
 | L78L05ACD13TR-TP#C41407978TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 5,820 | ₹7.57 · 5,820 in stock | View |
 | L78L05CD13TR-TP#C41407979TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 7,695 | ₹7.59 · 7,695 in stock | View |
 | LM78L05ACMX-TP#C41407996TECH PUBLIC · SOP-8 | TECH PUBLIC | SOP-8 | 2,870 | ₹10.53 · 2,870 in stock | View |
