onsemiDatasheet (PDF)

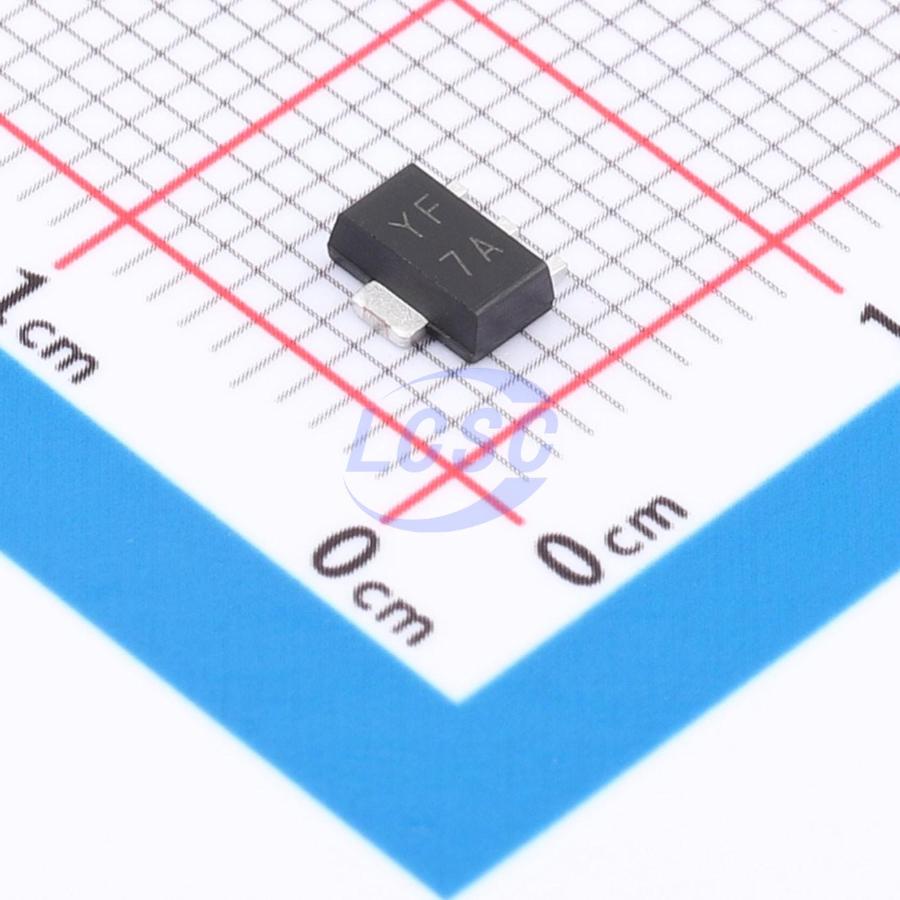

MC78L05ACHT1G
5V Positive Fixed SOT-89 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
SOT-89ROHS3 CompliantActive
Positive Voltage Regulators 100 mA
- Manufacturer
- onsemi
- Manufacturer part #
- MC78L05ACHT1G
- Store part #
- C904222
- Package / case
- SOT-89
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,525 in stock
#C904222
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹38.62 | ₹193.10 |
| 50+ | ₹30.42 | ₹1,521.00 |
| 150+ | ₹26.90 | ₹4,035.00 |
| 500+ | ₹22.50 | ₹11,250.00 |
| 2,500+ | ₹20.56 | ₹51,400.00 |
| 5,000+ | ₹19.38 | ₹96,900.00 |
5 × ₹38.62
₹193.10
excl. GST
₹227.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC78L05ACHT1G
₹193.10 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Supply Current (Iq)
- 3.8mA
- Output Configuration
- Positive
- Output Current
- 100mA
- Operating Voltage
- 30V
- Features
- Short Circuit Protection;Thermal shutdown;Over Current Protection;Enable control;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
The MC78L00A Series of positive voltage regulators are inexpensive, easy−to−use devices suitable for a multitude of applications that require a regulated supply of up to 100 mA. Like their higher powered MC7800 and MC78M00 Series cousins, these regulators feature internal current limiting and thermal shutdown making them remarkably rugged. No external components are required with the MC78L00 devices in many applications. These devices offer a substantial performance advantage over the traditional zener diode−resistor combination, as output impedance and quiescent current are substantially reduced.
Key features
- Wide Range of Available, Fixed Output Voltages
- Low Cost
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- No External Components Required
- Complementary Negative Regulators Offered (MC79L00A Series)
- NCV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q100 Qualified and PPAP Capable
- These are Pb−Free Devices
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 78L05#C842819FUXINSEMI · SOT-89 | FUXINSEMI | SOT-89 | 16,320 | ₹6.18 · 16,320 in stock | View |
 | 78S05M#C400136UNI-SEMIC · SOT-89-3 | UNI-SEMIC | SOT-89-3 | 3,955 | ₹16.70 · 3,955 in stock | View |
 | 78L05K#C22400118Shikues · SOT-89 | Shikues | SOT-89 | 620 | ₹8.14 · 620 in stock | View |
 | 78L05#C2891830YONGYUTAI · SOT-89-3 | YONGYUTAI | SOT-89-3 | 990 | ₹6.31 · 990 in stock | View |
 | 78L05#C347258UMW · SOT-89-3 | UMW | SOT-89-3 | 8,01,760 | ₹4.95 · 8,01,760 in stock | View |
