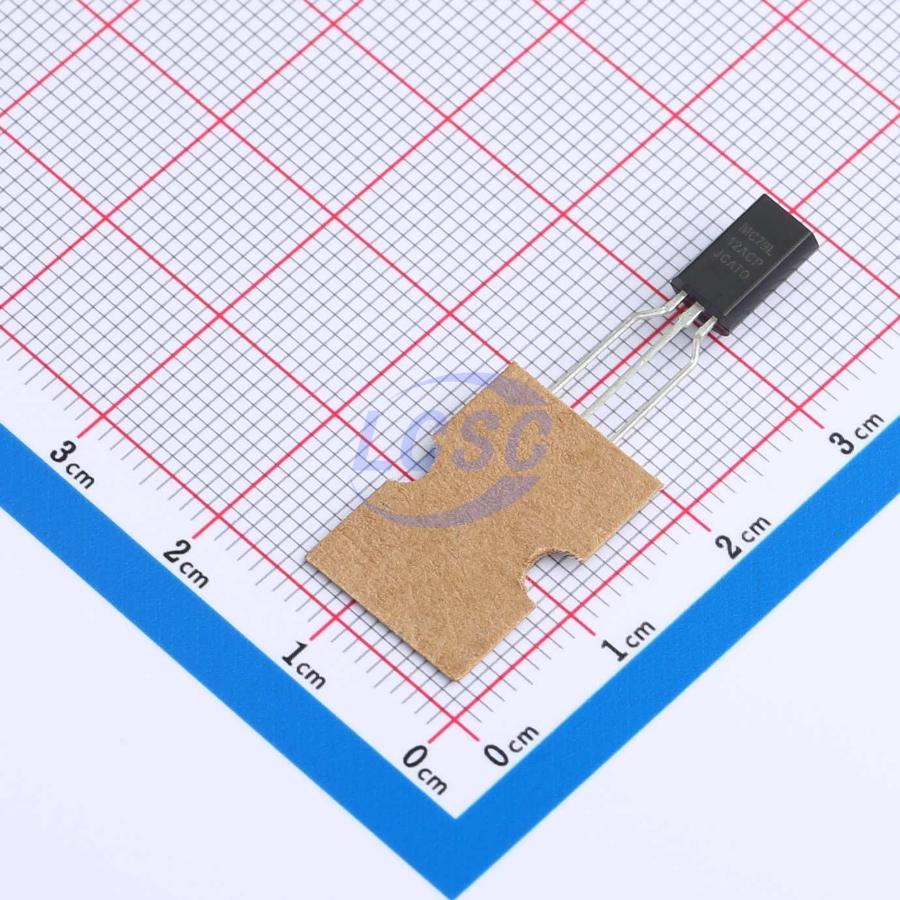

MC79L12ACPRPG
12V Negative Fixed TO-92 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
TO-92ROHS3 CompliantActive
Negative Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC79L12ACPRPG
- Store part #
- C903157
- Package / case
- TO-92
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,400 in stock
#C903157
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.74 | ₹173.70 |
| 50+ | ₹27.24 | ₹1,362.00 |
| 150+ | ₹24.01 | ₹3,601.50 |
| 500+ | ₹20.00 | ₹10,000.00 |
| 2,000+ | ₹16.87 | ₹33,740.00 |
| 4,000+ | ₹15.80 | ₹63,200.00 |
5 × ₹34.74
₹173.70
excl. GST
₹204.97 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
MC79L12ACPRPG
₹173.70 for 5 + GST
Specifications
- Output Voltage
- 12V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Negative
- Output Current
- 100mA
- Operating Voltage
- 27V
- Features
- Thermal shutdown;Short Circuit Protection;Over Current Protection;Input under-voltage protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.52 g
Overview
The MC79L00A Series negative voltage regulators are inexpensive, easy−to−use devices suitable for numerous applications requiring up to 100 mA. Like the higher powered MC7900 Series negative regulators, this series features thermal shutdown and current limiting, making them remarkably rugged. In most applications, no external components are required for operation. The MC79L00A devices are useful for on−card regulation or any other application where a regulated negative voltage at a modest current level is needed. These regulators offer substantial advantage over the common resistor/Zener diode approach.
Key features
- No External Components Required
- Internal Short Circuit Current Limiting
- Internal Thermal Overload Protection
- Low Cost
- Complementary Positive Regulators Offered (MC78L00 Series)
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC79L12ACPG#C232662onsemi · TO-92-3 | onsemi | TO-92-3 | 15 | ₹45.68 · 15 in stock | View |
 | CJ79L12#C46922JSCJ · TO-92-3 | JSCJ | TO-92-3 | 930 | ₹15.17 · 930 in stock | View |
 | MC79L12ABPRAG#C512986onsemi · TO-92 | onsemi | TO-92 | 1,830 | ₹22.89 · 1,830 in stock | View |
 | LM79L12#C126075HTC · TO-92-3 | HTC | TO-92-3 | 4,785 | ₹12.07 · 4,785 in stock | View |
 | L79L12ACZ-TR#C2942984ST · TO-92-3 | ST | TO-92-3 | 230 | ₹22.11 · 230 in stock | View |
