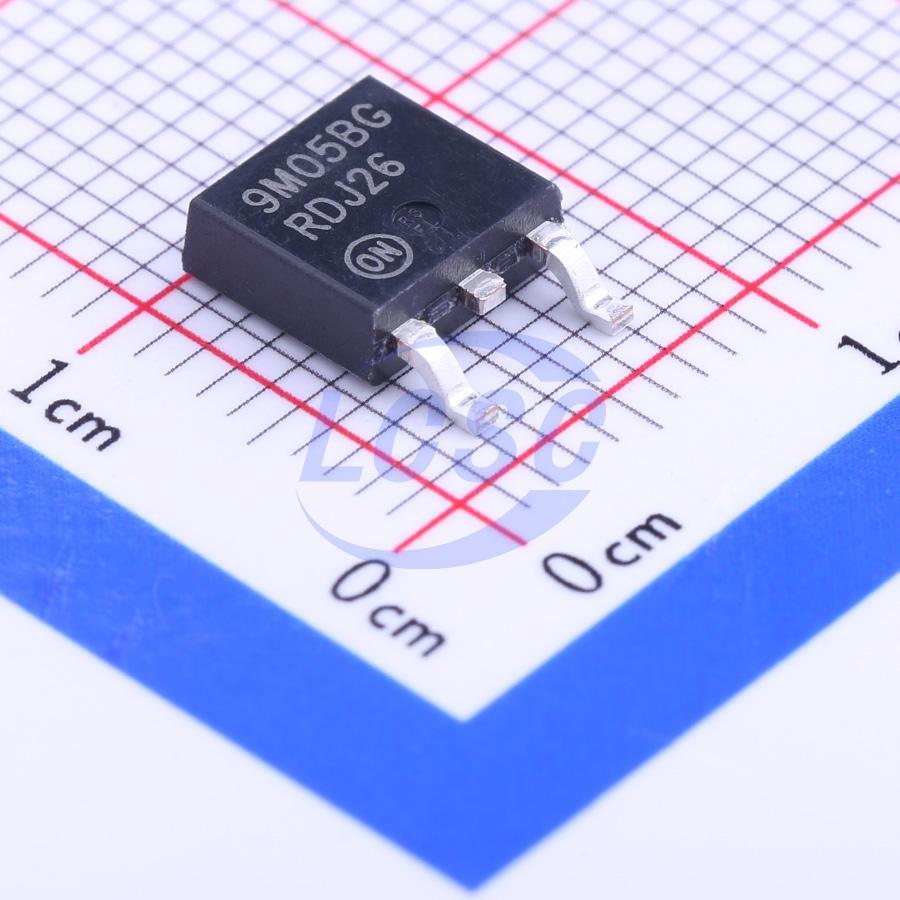

MC79M05BDTRKG
5V Negative Fixed DPAK-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAK-3ROHS CompliantActive
500 mA Negative Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC79M05BDTRKG
- Store part #
- C126401
- Package / case
- DPAK-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
6,740 in stock
#C126401
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.37 | ₹246.85 |
| 50+ | ₹40.26 | ₹2,013.00 |
| 150+ | ₹29.13 | ₹4,369.50 |
| 500+ | ₹24.26 | ₹12,130.00 |
| 2,500+ | ₹22.09 | ₹55,225.00 |
| 5,000+ | ₹20.78 | ₹1,03,900.00 |
5 × ₹49.37
₹246.85
excl. GST
₹291.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC79M05BDTRKG
₹246.85 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Output Configuration
- Negative
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Over Current Protection;Thermal shutdown;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.438 g
Overview
The MC79M00 series of fixed output negative voltage regulators are intended as complements to the popular MC78M00 series devices. Available in fixed output voltage options of -5.0 V, -8.0 V, -12 V and -15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 0.5 A.
Key features
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Also Available in Surface Mount DPAK (DT) Package
- Pb−Free Packages are Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC79M05CDTRKG#C51416onsemi · DPAK-3 | onsemi | DPAK-3 | 3,755 | ₹37.15 · 3,755 in stock | View |
 | TP79M05K3#C41408044TECH PUBLIC · TO-252-2L | TECH PUBLIC | TO-252-2L | 1,527 | ₹36.32 · 1,527 in stock | View |
 | MC79M05BDTG#C232430onsemi · DPAK-3 | onsemi | DPAK-3 | On request | ₹216.18 · 0 in stock | View |
