onsemiDatasheet (PDF)

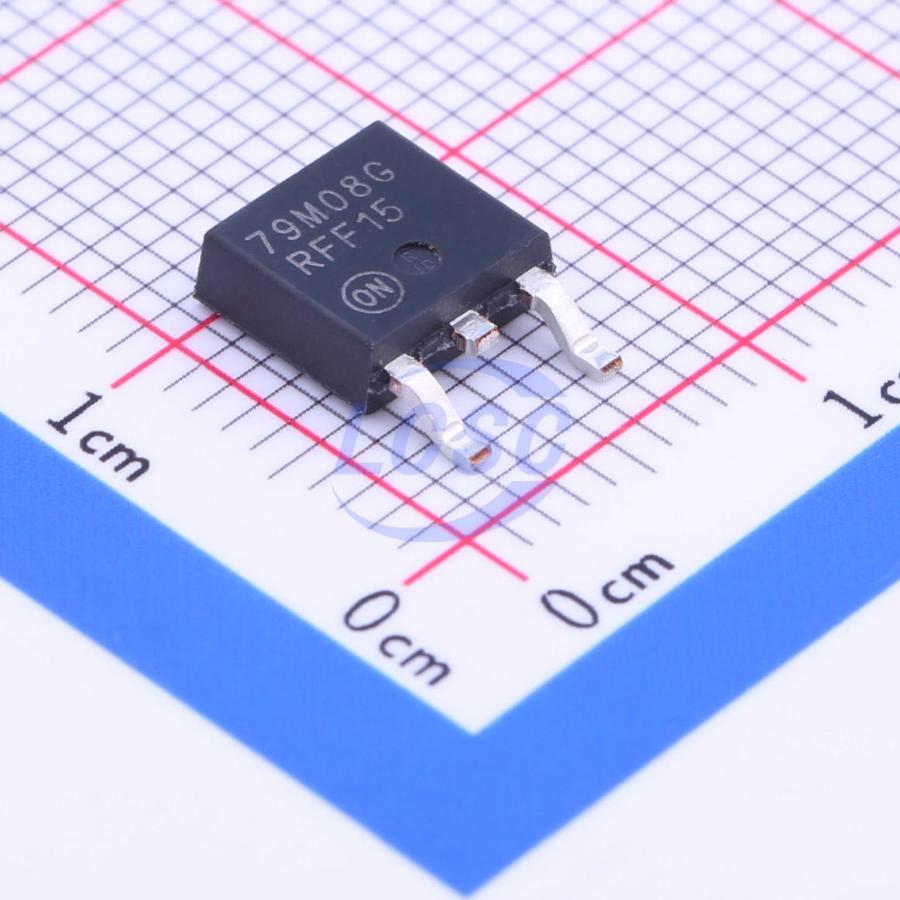

MC79M08CDTRKG
8V Negative Fixed DPAK-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAK-3ROHS3 CompliantActive
500 mA Negative Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC79M08CDTRKG
- Store part #
- C20718
- Package / case
- DPAK-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,400 in stock
#C20718
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹48.54 | ₹242.70 |
| 50+ | ₹38.68 | ₹1,934.00 |
| 150+ | ₹34.45 | ₹5,167.50 |
| 500+ | ₹29.19 | ₹14,595.00 |
| 2,500+ | ₹26.84 | ₹67,100.00 |
| 5,000+ | ₹25.43 | ₹1,27,150.00 |
5 × ₹48.54
₹242.70
excl. GST
₹286.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC79M08CDTRKG
₹242.70 for 5 + GST
Specifications
- Output Voltage
- 8V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃@(Tj)
- Output Configuration
- Negative
- Output Current
- 500mA
- Operating Voltage
- 25V
- Features
- Over Current Protection;Thermal shutdown;Reverse polarity voltage protection;Reverse-polarity current protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.438 g
Overview
The MC79M00 series of fixed output negative voltage regulators are intended as complements to the popular MC78M00 series devices. Available in fixed output voltage options of -5.0 V, -8.0 V, -12 V and -15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 0.5 A.
Key features
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Also Available in Surface Mount DPAK (DT) Package
- Pb−Free Packages are Available
