onsemiDatasheet (PDF)

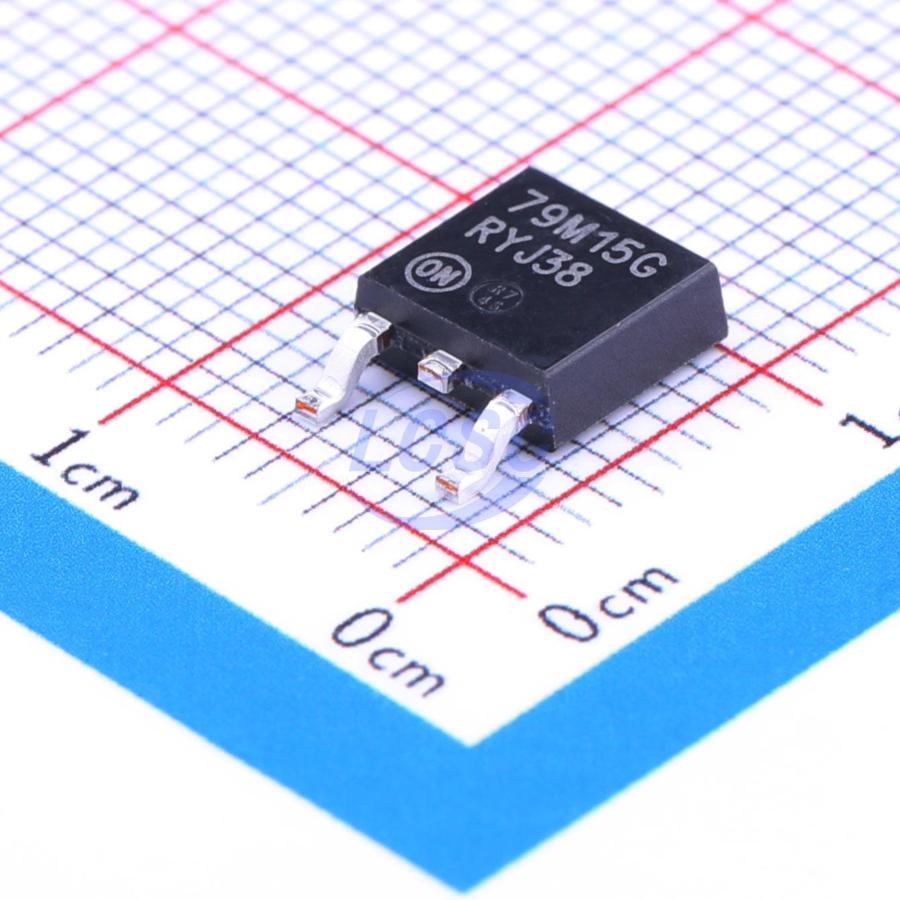

MC79M15CDTRKG
15V Negative Fixed DPAK-3 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators RoHS
DPAK-3ROHS CompliantActive
500 mA Negative Voltage Regulators
- Manufacturer
- onsemi
- Manufacturer part #
- MC79M15CDTRKG
- Store part #
- C126298
- Package / case
- DPAK-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,125 in stock
#C126298
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹44.82 | ₹224.10 |
| 50+ | ₹36.05 | ₹1,802.50 |
| 150+ | ₹30.67 | ₹4,600.50 |
| 500+ | ₹25.98 | ₹12,990.00 |
| 2,500+ | ₹23.89 | ₹59,725.00 |
| 5,000+ | ₹22.64 | ₹1,13,200.00 |
5 × ₹44.82
₹224.10
excl. GST
₹264.44 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MC79M15CDTRKG
₹224.10 for 5 + GST
Specifications
- Output Voltage
- 15V
- Number of Outputs
- 1
- Operating Temperature
- 0℃~+125℃
- Output Configuration
- Negative
- Output Current
- 500mA
- Operating Voltage
- 35V
- Features
- Over Current Protection;Thermal shutdown;Reverse polarity voltage protection;Reverse-polarity current protection;Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.438 g
Overview
The MC79M00 series of fixed output negative voltage regulators are intended as complements to the popular MC78M00 series devices. Available in fixed output voltage options of -5.0 V, -8.0 V, -12 V and -15 V, these regulators employ current limiting, thermal shutdown, and safe−area compensation, making them remarkably rugged under most operating conditions. With adequate heatsinking they can deliver output currents in excess of 0.5 A.
Key features
- No External Components Required
- Internal Thermal Overload Protection
- Internal Short Circuit Current Limiting
- Output Transistor Safe−Area Compensation
- Also Available in Surface Mount DPAK (DT) Package
- Pb−Free Packages are Available
