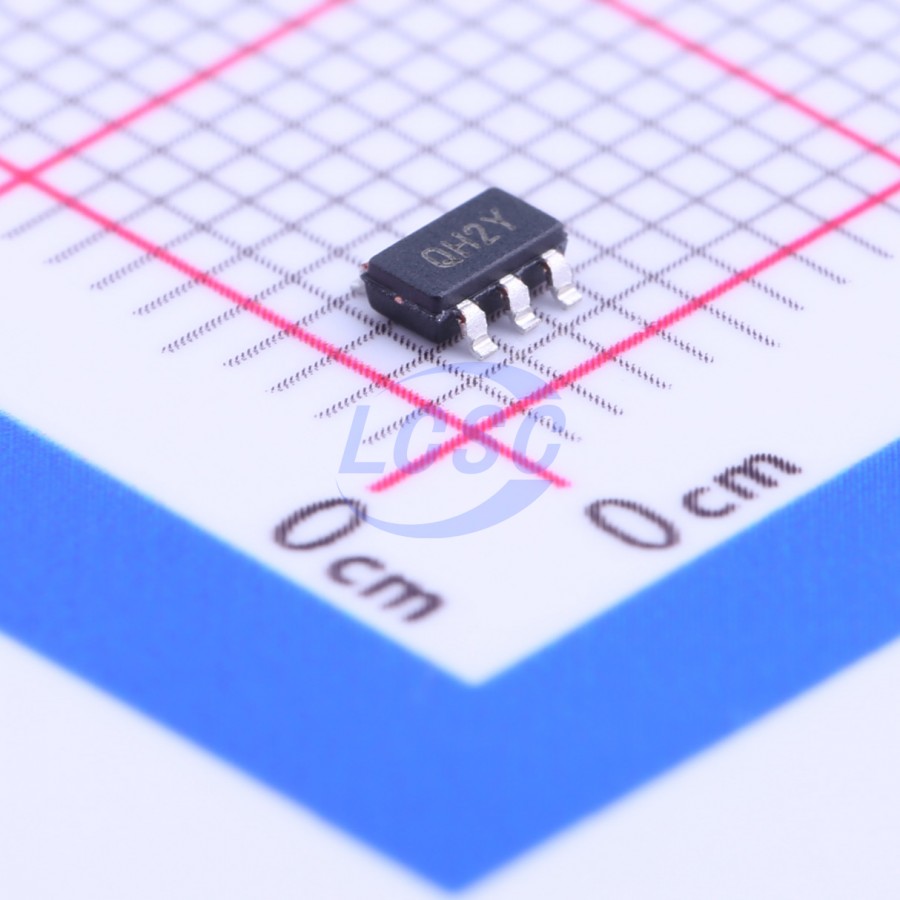

MCP1320T-29LE/OT
200ms Active Low 1V~5.5V 1 SOT-23-5 Supervisors RoHS
SOT-23-5ROHS3 CompliantActive
Voltage Supervisor
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP1320T-29LE/OT
- Store part #
- C145593
- Package / case
- SOT-23-5
- Category
- Supervisors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,800 in stock
#C145593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹126.69 | ₹126.69 |
| 10+ | ₹103.22 | ₹1,032.20 |
| 30+ | ₹91.49 | ₹2,744.70 |
| 100+ | ₹79.98 | ₹7,998.00 |
| 500+ | ₹73.02 | ₹36,510.00 |
| 1,000+ | ₹69.54 | ₹69,540.00 |
1 × ₹126.69
₹126.69
excl. GST
₹149.49 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MCP1320T-29LE/OT
₹126.69 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+125℃
- Reset Timeout
- 200ms
- output type
- Open-drain
- Function
- Watchdog timer;Manual reset input
- Reset Active Level
- Active Low
- standby current
- 1uA
- Voltage - Supply
- 1V~5.5V
- ChipType
- Voltage monitor
- Threshold Voltage
- 2.9V
- Number of Voltages Monitored
- 1
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.043 g
Overview
The MCP131X/2X are voltage supervisor devices designed to keep a microcontroller in Reset until the system voltage has reached and stabilized at the proper level for reliable system operation.
Key features
- Low Supply Current: 1 μA (Typical), 10 μA (Max.)
- Precision Monitoring Trip Point Options:
- 2.9V and 4.6V (Standard Offerings)
- 2.0V to 4.7V in 100 mV Increments
- Resets Microcontroller in a Power-loss Event
- Reset Delay Time-Out Option:
- 1.4 ms, 30 ms, 200 ms, or 1.6s (Typical)
- Watchdog Timer Input Time-Out Options:
- 6.3 ms, 102 ms, 1.6s, or 25.6s (Typical)
- Manual Reset (MR) Input (Active-low)
- Single and Complementary Reset Output(s)
- Reset Output Options:
- Push-Pull (Active-high or Active-low)
- Open-Drain (Internal or External Pull-up)
- Temperature Range:
- -40°C to +85°C for Trip Points 2.0 to 2.4V
- -40°C to +125°C for Trip Points >2.5V
- Voltage Range: 1.0V to 5.5V
- Lead Free Packaging
