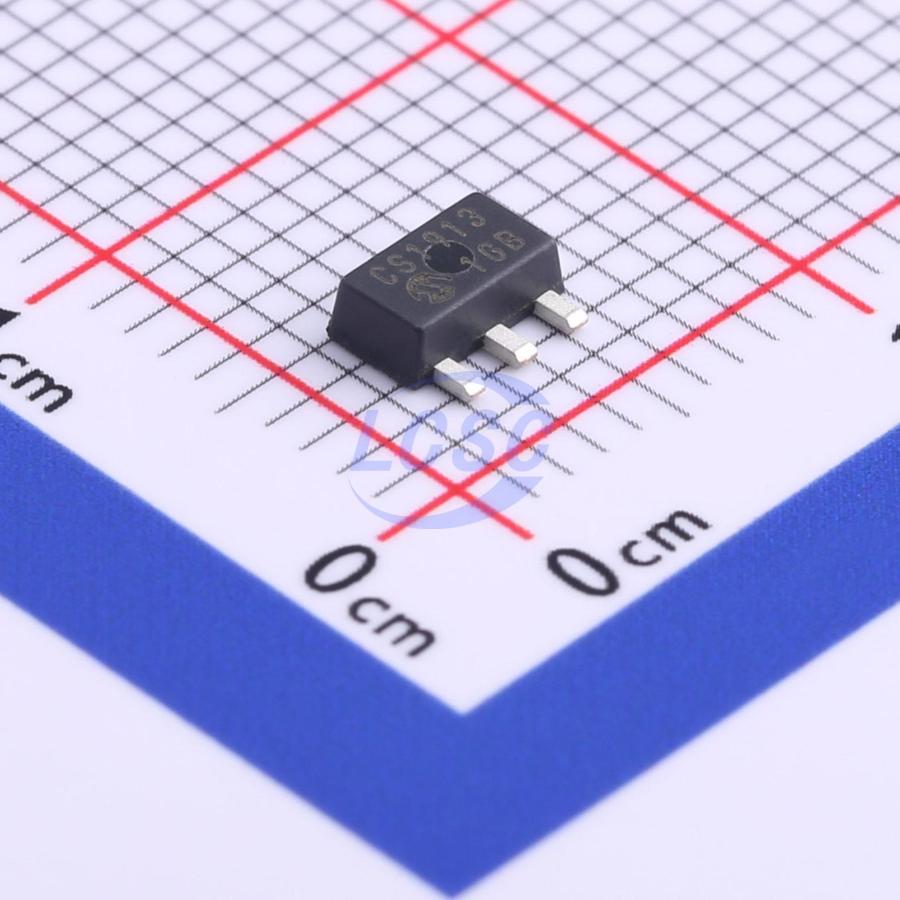

MCP1700T-3302E/MB

A family of CMOS low dropout (LDO) voltage regulators that can deliver up to 250 mA of current while consuming only 1.6 μA of quiescent current (typical). The input operating range is specified from 2.3V to 6.0V, making it an ideal choice for two and three primary cell battery-powered applications, as well as single cell Li-Ion-powered applications. It is capable of delivering 250 mA with only 178 mV of input to output voltage differential (V_OUT = 2.8V). The output voltage tolerance is typically ±0.4% at +25°C and ±3% maximum over the operating junction temperature range of -40°C to +125°C. Output voltages available range from 1.2V to 5.0V. The LDO output is stable when using only 1 μF output capacitance. Ceramic, tantalum or aluminum electrolytic capacitors can all be used for input and output. Overcurrent limit and overtemperature shutdown provide a robust solution for any application. Package options include SOT - 23, SOT - 89, TO - 92 and 2×2 DFN - 6.

Applications

• Battery - Powered Devices
• Battery - Powered Alarm Circuits
• Smoke Detectors
• CO₂ Detectors
• Pagers and Cellular Phones
• Smart Battery Packs
• Low Quiescent Current Voltage Reference
• PDAs
• Digital Cameras
• Microcontroller Power

Key features

• AEC - Q100 Qualified and PPAP Capable
• 1.6 μA Typical Quiescent Current
• Input Operating Voltage Range: 2.3V to 6.0V
• Output Voltage Range: 1.2V to 5.0V
• 250 mA Output Current for Output Voltages ≥2.5V
• 200 mA Output Current for Output Voltages <2.5V
• Low Dropout (LDO) Voltage - 178 mV Typical @250 mA for V_OUT = 2.8V
• 0.4% Typical Output Voltage Tolerance
• Standard Output Voltage Options: - 1.2V, 1.8V, 2.5V, 2.8V, 2.9V, 3.0V, 3.3V, 5.0V
• Stable with 1.0 μF Ceramic Output Capacitor
• Short Circuit Protection
• Overtemperature Protection
