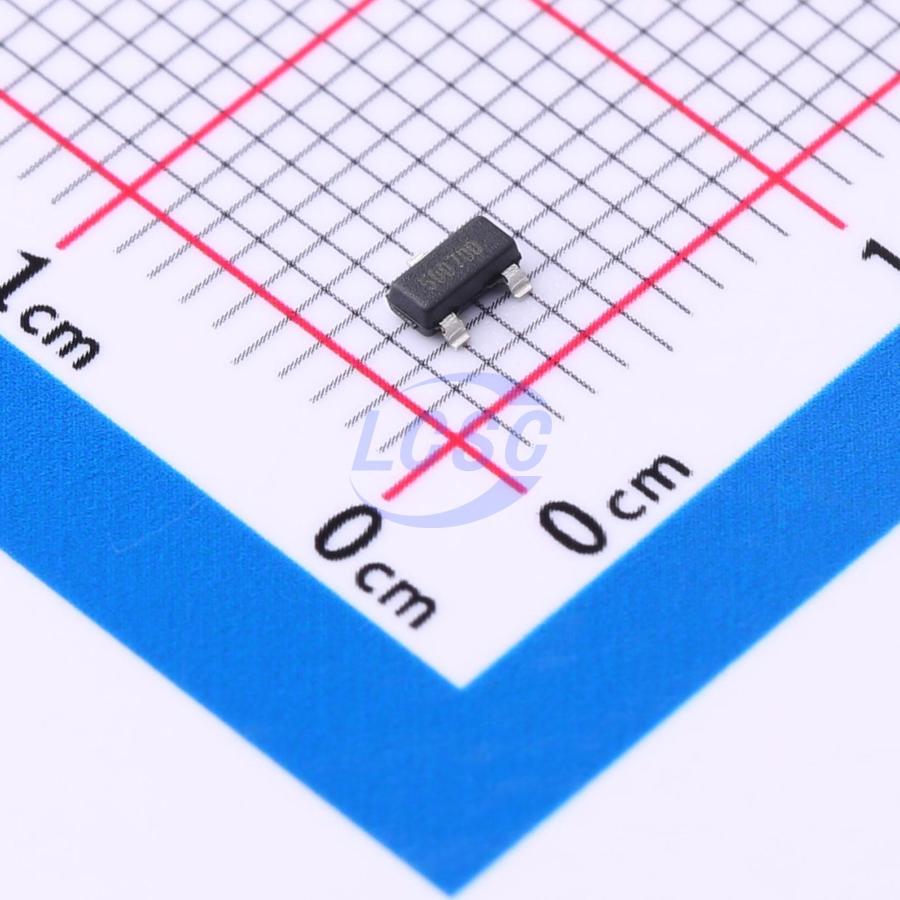

MCP1799T-5002H/TT

The MCP1799 is a high-voltage, Low-Dropout (LDO) regulator, capable of generating 80 mA output current. The input voltage range of 4.5V to 45V makes it ideal in 12V to 36V power rails and in high-voltage battery packs. The MCP1799 comes in two standard fixed output voltage versions: 3.3V and 5.0V. The regulator output is stable with 1 µF ceramic capacitors. The device is protected from short circuit events by the current limit function and from over heating by means of thermal shutdown protection. The device itself has a low ground current of 45 µA typical, while delivering maximum output current of 80 mA. Without load the device consumes 25 µA typical.

Applications

• Automotive Electronics
• Microcontroller Biasing
• Cordless Power Tools, Home Appliances E-bikes, Drones, etc.
• Smoke Detectors and other Alarm Sensors

Key features

• AEC-Q100 with Grade 0 and PPAP Capable
• Wide Input Voltage Range: 4.5V to 45V - Undervoltage Lockout (UVLO): 2.8V typical
• Extended Working Temperature Range: -40°C to +150°C
• Standard Output Regulated Voltages (VR): 3.3V and 5.0V - Tolerance ±2%
• Low Quiescent Supply Current: 25 µA typical
• Output Current Capability: 80 mA typical
• Stable with 1 µF Ceramic Output Capacitor
• Short Circuit Protection
• Thermal Shutdown Protection: +180°C typical - Hysteresis: 22°C typical
• High Power Supply Rejection Ratio (PSRR): 70 dB @ 1 kHz typical
• Available in the Following Packages: 3-Lead SOT-23, 3-Lead SOT-223
