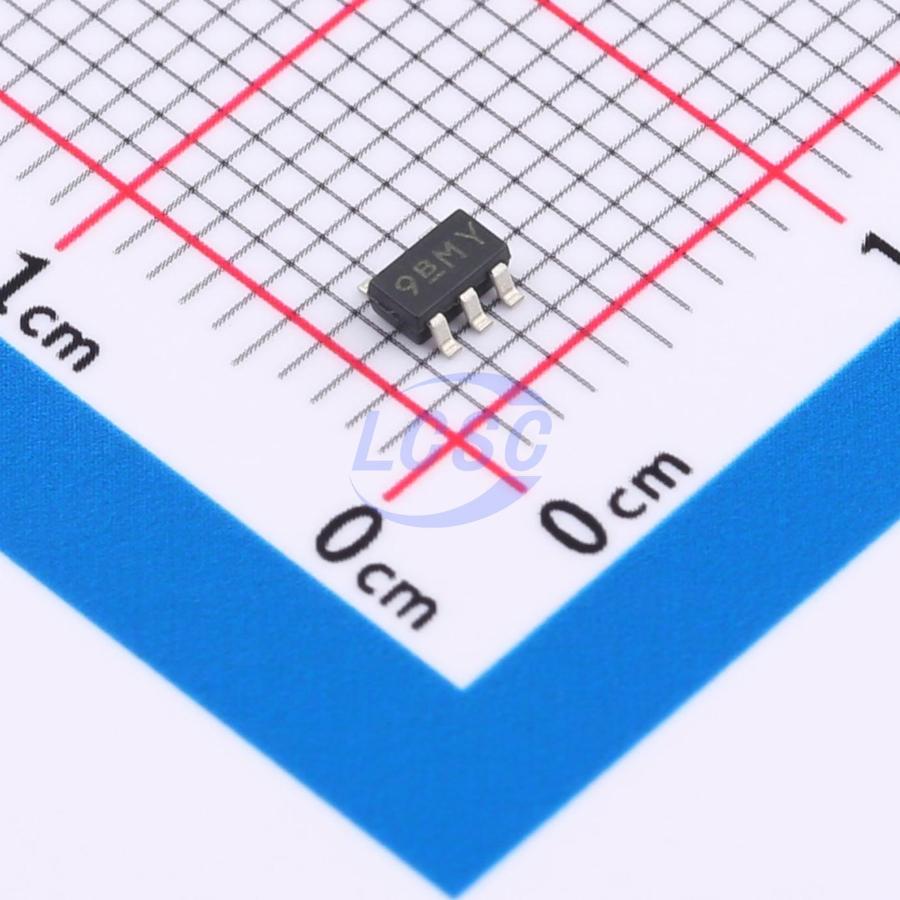

MCP1801T-5002I/OT

5V Positive Fixed SOT-23-5 Voltage Regulators - Linear, Low Drop Out (LDO) Regulators

SOT-23-5RoHSActive

150mA,High PSRR,Low Quiescent Current LDO

Manufacturer: TECH PUBLIC
Manufacturer part #: MCP1801T-5002I/OT
Store part #: C3040616
Package / case: SOT-23-5
Category: Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,624 in stock

#C3040616

Stock & price checked 19 h ago

Quantity	Unit price	Pack price
1+	₹95.18	₹95.18
10+	₹83.88	₹838.80
30+	₹78.02	₹2,340.60
100+	₹72.37	₹7,237.00
500+	₹69.11	₹34,555.00
1,000+	₹67.37	₹67,370.00

Quantity (min 1)

1 × ₹95.18

₹95.18

excl. GST

₹112.31 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

MCP1801T-5002I/OT

₹95.18 for 1 + GST

Specifications

Output Voltage: 5V
Number of Outputs: 1
Operating Temperature: -40℃~+85℃@(Ta)
Supply Current (Iq): 25uA
Output Configuration: Positive
Operating Voltage: 10V
Output Current: 150mA
Features: Enable control;Short Circuit Protection;Over Current Protection
Output Type: Fixed

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.038 g

Overview

The MCP1801 is a family of CMOS low dropout (LDO) voltage regulators that can deliver up to 150 mA of current while consuming only 25 μA of quiescent current (typical). The input operating range is specified from 2.0 V to 10.0 V, making it an ideal choice for two to six primary cell battery-powered applications, 9V alkaline and one or two cell Li-lon-powered applications. The MCP1801 is capable of delivering 100 mA with only 200 mV (typical) of input to output voltage differential (V_OUT = 3.3 V). The output voltage tolerance of the MCP1801 at +25°C is typically ±0.4% with a maximum of ±2%. Line regulation is ±0.01% typical at +25°C. The LDO output is stable with a minimum of 1 μF of output capacitance. Ceramic, tantalum, or aluminum electrolytic capacitors can all be used for input and output. Overcurrent limit with current foldback provides short-circuit protection. A shutdown (SHDN) function allows the output to be enabled or disabled. When disabled, the MCP1801 draws only 0.01 μA of current (typical). The MCP1801 is available in a SOT-23-5 package.

Applications

Mobile phones
Cordless phones
Cameras, video recorders
Portable games
Portable AV equipment
Reference voltage
Battery-powered equipment

Key features

CMos Low Power Consumption
Dropout Voltage: 60mV @ 30mA, 200mV @ 100mA
Maximum Output Current: 150mA
Highly Accurate: 1.2V ~ 1.95V ±3%, 2.0V ~ 6.00V ±2%
Output Voltage Range: 1.5V ~ 6.0V
Low ESR capacitor compatible
Output Voltage Options: 1.2V, 1.8V, 2.5V, 3.3V, 5.0V
Package: SOT23-5
