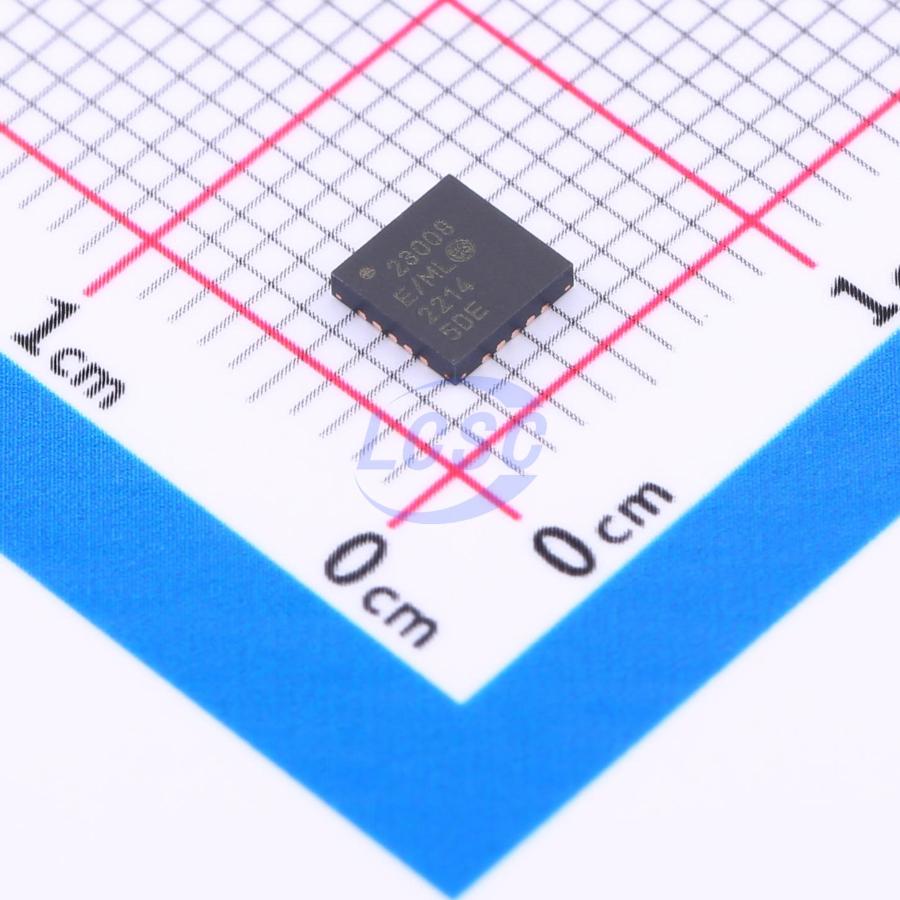

MCP23008T-E/ML

The MCP23X08 device provides 8-bit, general purpose, parallel I/O expansion for I²C bus or SPI applications. The two devices differ in the number of hardware address pins and the serial interface: MCP23008 - I²C interface; three address pins MCP23S08 - SPI interface; two address pins The MCP23X08 consists of multiple 8-bit Configuration registers for input, output and polarity selection. The system master can enable the I/Os as either inputs or outputs by writing the I/O Configuration bits. The data for each input or output is kept in the corresponding Input or Output register. The polarity of the Input Port register can be inverted with the Polarity Inversion register. All registers can be read by the system master. The interrupt output can be configured to activate under two conditions (mutually exclusive): 1. When any input state differs from its corresponding Input Port register state, this is used to indicate to the system master that an input state has changed. 2. When an input state differs from a preconfigured register value (DEFVAL register). The Interrupt Capture register captures port values at the time of the interrupt, thereby saving the condition that caused the interrupt. The Power-on Reset (POR) sets the registers to their default values and initializes the device state machine. The hardware address pins are used to determine the device address.

Key features

• 8-Bit Remote Bidirectional I/O Port
• I/O pins default to input
• High-Speed I/O Interface (MCP23008)
• 100 kHz
• 400 kHz
• 1.7 MHz
• High-Speed SPI Interface (MCP23S08)
• 10 MHz
• Hardware Address Pins
• Three for the MCP23008 to allow up to eight devices on the bus
• Two for the MCP23S08 to allow up to four devices using the same Chip Select
• Configurable Interrupt Output Pin
• Configurable as active-high, active-low or open-drain
• Configurable Interrupt Source
• Interrupt-on-change from configured defaults or pin change
• Polarity Inversion Register to Configure the Polarity of the Input Port Data
• External Reset Input
• Low Standby Current: 1 μA (max.)
• Operating Voltage:
• 1.8V to 5.5V at -40°C to +85°C
• I²C at 100 kHz
• SPI at 5 MHz
• 2.7V to 5.5V at -40°C to +85°C
• I²C at 400 kHz
• SPI at 10 MHz
• 4.5V to 5.5V at -40°C to +125°C
• I²C at 1.7 kHz
• SPI at 10 MHz
