MICROCHIPDatasheet (PDF)

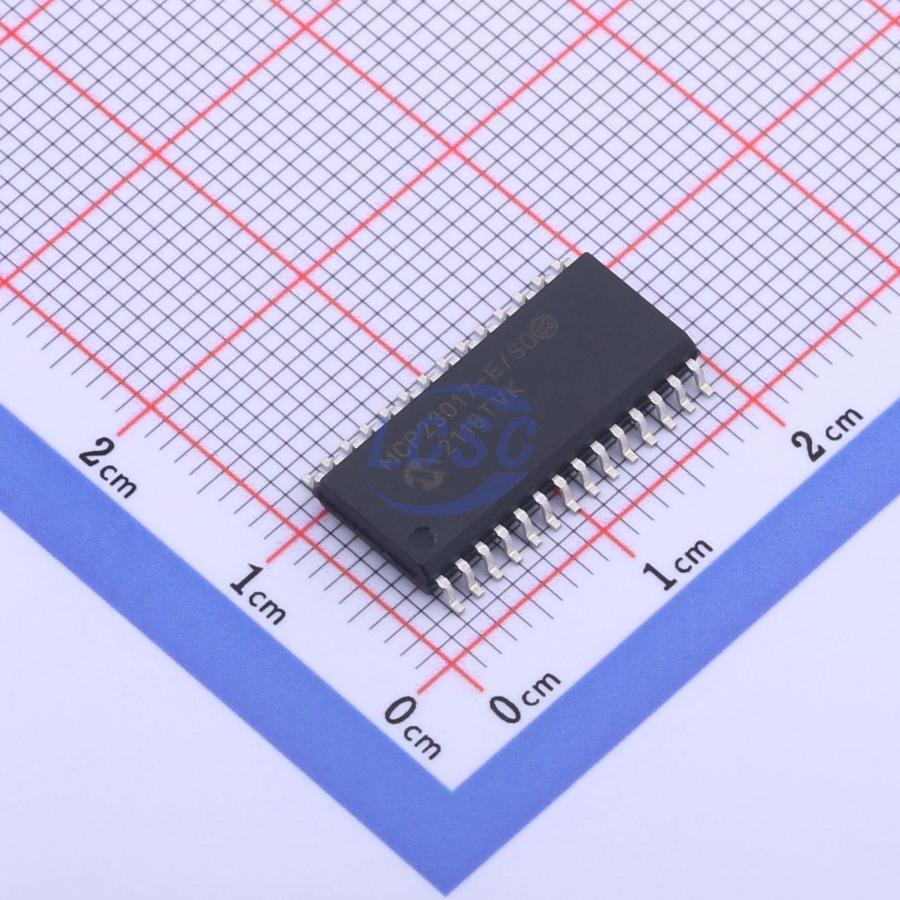

MCP23017-E/SO
16 I2C SOIC-28-300mil I/O Expanders RoHS
PopularSOIC-28-300milROHS3 CompliantActive
16-Bit I/O Expander with Serial Interface
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP23017-E/SO
- Store part #
- C47023
- Package / case
- SOIC-28-300mil
- Category
- I/O Expanders
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,785 in stock
#C47023
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹233.38 | ₹233.38 |
| 10+ | ₹197.52 | ₹1,975.20 |
| 27+ | ₹164.71 | ₹4,447.17 |
| 108+ | ₹141.68 | ₹15,301.44 |
| 540+ | ₹131.25 | ₹70,875.00 |
| 1,080+ | ₹126.69 | ₹1,36,825.20 |
1 × ₹233.38
₹233.38
excl. GST
₹275.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 27 per tube
MCP23017-E/SO
₹233.38 for 1 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Interrupt Output
- Interrupt Output
- Number of I/O
- 16
- Features
- Reset function;Cascade and address expansion
- Voltage - Supply
- 1.8V~5.5V
- Quiescent Supply Current
- 1uA
- Number of Supporting Devices
- 8
- Interface
- I2C
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 27 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.81 g
Overview
Key features
- AEC - Q100 Qualified
- 16 - Bit Remote Bidirectional I/O Port (Pins GPA7, GPB7 are output only for MCP23017)
- I/O pins default to input
- High - Speed I/O Interface (MCP23017): 100 kHz - 400 kHz - 1.7 MHz
- High - Speed SPI Interface (MCP23S17): 10 MHz (maximum)
- Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
- Configurable Interrupt Output Pins: Configurable as active - high, active - low or open - drain; INTA and INTB Can Be Configured to Operate Independently or Together
- Configurable Interrupt Source: Interrupt - on - change from configured register defaults or pin changes
- Polarity Inversion Register to Configure the Polarity of the Input Port Data
- External Reset Input
- Low Standby Current: 1μA (max.)
- Operating Voltage: 1.8V to 5.5V at - 40°C to +85°C; 2.7V to 5.5V at - 40°C to +85°C; 4.5V to 5.5V at - 40°C to +125°C
