MICROCHIPDatasheet (PDF)

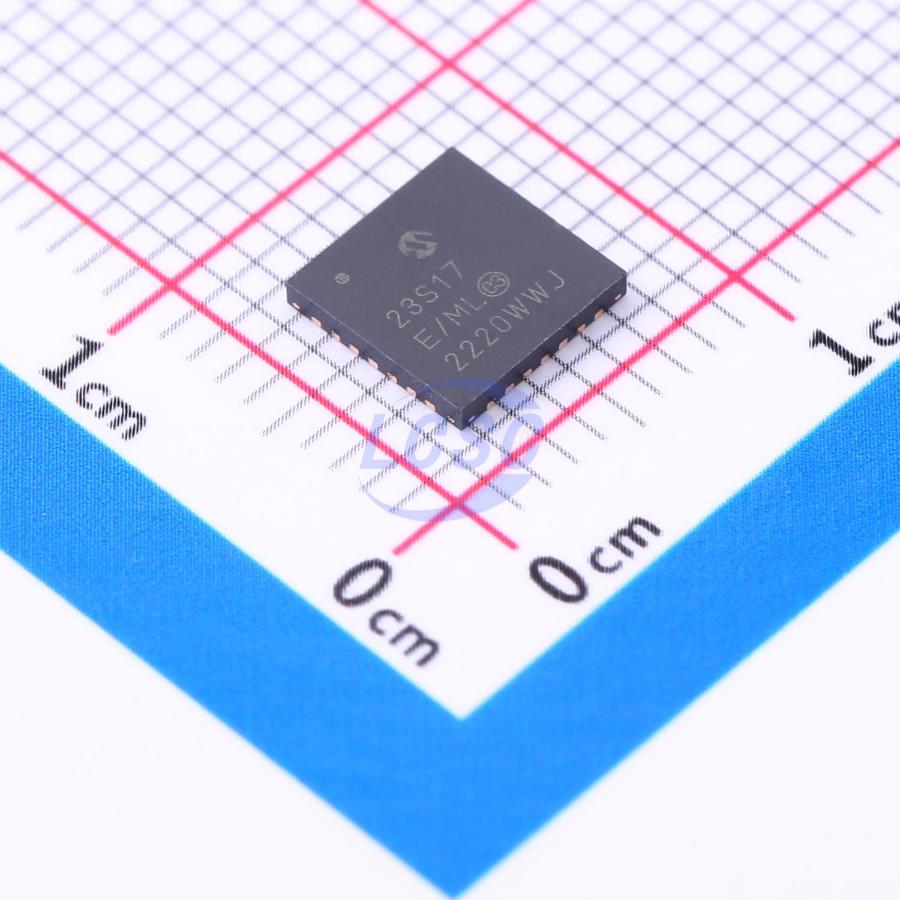

MCP23S17T-E/ML
16 SPI QFN-28-EP(6x6) I/O Expanders RoHS
QFN-28-EP(6x6)ROHS3 CompliantActive
16-Bit I/O Expander with Serial Interface
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP23S17T-E/ML
- Store part #
- C629442
- Package / case
- QFN-28-EP(6x6)
- Category
- I/O Expanders
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,215 in stock
#C629442
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹248.39 | ₹248.39 |
| 10+ | ₹212.04 | ₹2,120.40 |
| 30+ | ₹189.39 | ₹5,681.70 |
| 100+ | ₹166.10 | ₹16,610.00 |
| 500+ | ₹155.44 | ₹77,720.00 |
| 1,000+ | ₹151.09 | ₹1,51,090.00 |
1 × ₹248.39
₹248.39
excl. GST
₹293.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,600 per reel
MCP23S17T-E/ML
₹248.39 for 1 + GST
Specifications
- Interrupt Output
- Interrupt Output
- Operating Temperature
- -40℃~+125℃
- Number of I/O
- 16
- Features
- Reset function;Cascade and address expansion
- Voltage - Supply
- 1.8V~5.5V
- Quiescent Supply Current
- 1uA
- Number of Supporting Devices
- 8
- Interface
- SPI
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,600 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.32 g
Overview
Key features
- AEC - Q100 Qualified
- 16 - Bit Remote Bidirectional I/O Port (Pins GPA7, GPB7 are output only for MCP23017)
- I/O pins default to input
- High - Speed I/O Interface (MCP23017): 100 kHz - 400 kHz - 1.7 MHz
- High - Speed SPI Interface (MCP23S17): 10 MHz (maximum)
- Three Hardware Address Pins to Allow Up to Eight Devices On the Bus
- Configurable Interrupt Output Pins: Configurable as active - high, active - low or open - drain; INTA and INTB Can Be Configured to Operate Independently or Together
- Configurable Interrupt Source: Interrupt - on - change from configured register defaults or pin changes
- Polarity Inversion Register to Configure the Polarity of the Input Port Data
- External Reset Input
- Low Standby Current: 1μA (max.)
- Operating Voltage: 1.8V to 5.5V at - 40°C to +85°C; 2.7V to 5.5V at - 40°C to +85°C; 4.5V to 5.5V at - 40°C to +125°C
