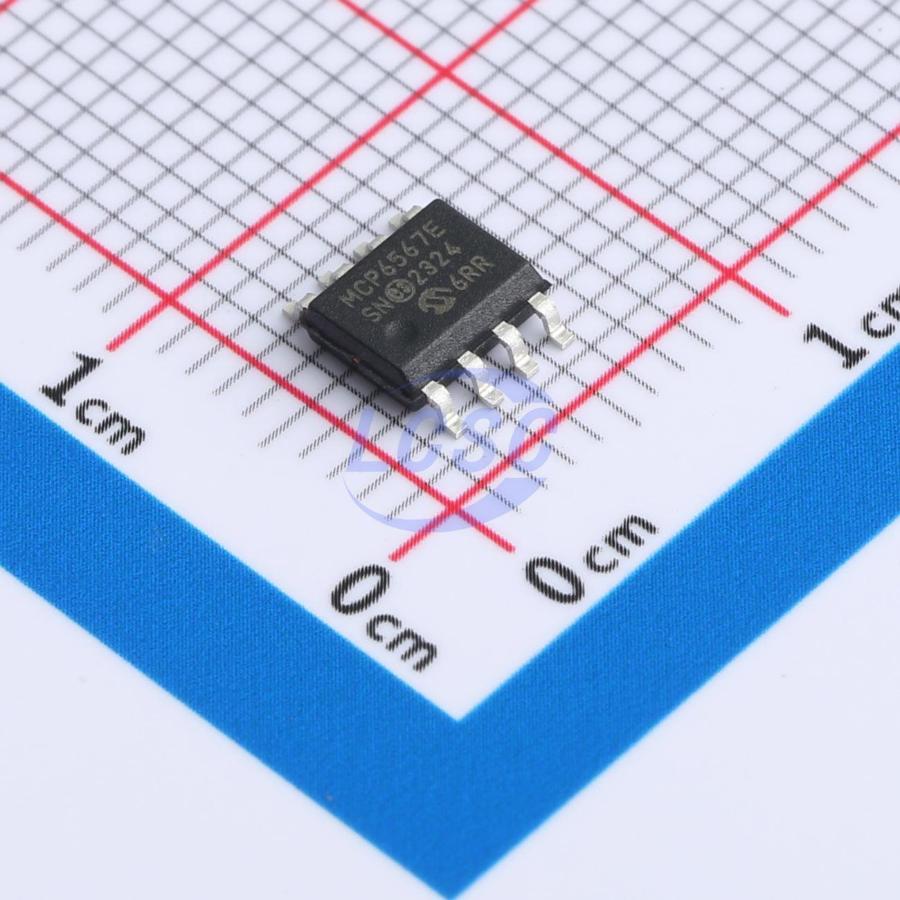

MCP6567T-E/SN
100uA 3mV Rail-to-rail input SOIC-8 Comparators RoHS
1.8V Low-Power Open-Drain Output Comparator
- Manufacturer
- MICROCHIP
- Manufacturer part #
- MCP6567T-E/SN
- Store part #
- C623754
- Package / case
- SOIC-8
- Category
- Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
999 in stock
#C623754
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹144.80 | ₹144.80 |
| 10+ | ₹120.31 | ₹1,203.10 |
| 30+ | ₹106.90 | ₹3,207.00 |
| 100+ | ₹91.56 | ₹9,156.00 |
| 500+ | ₹84.75 | ₹42,375.00 |
| 1,000+ | ₹81.77 | ₹81,770.00 |
1 × ₹144.80
₹144.80
excl. GST
₹170.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,300 per reel
MCP6567T-E/SN
₹144.80 for 1 + GST
Specifications
- Input Offset Current(Ios)
- 1pA
- Output Mode
- CMOS
- Operating Temperature
- -40℃~+125℃
- Features
- Built-in hysteresis
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Output Type
- Open-drain
- Propagation Delay(tpd)
- 56ns
- Common Mode Rejection Ratio(CMRR)
- 66dB
- Input Hysteresis Voltage (Vhys)
- 1mV
- Quiescent Current(Iq)
- 100uA
- Vos - Input Offset Voltage
- 3mV
- Rail to Rail
- Rail-to-rail input
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,300 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.152 g
Overview
The MCP6566/6R/6U/7/9 family of opendrain output comparators is offered in single, dual and quad configurations. These comparators are optimized for low-power 1.8V, single-supply applications with greater than rail-to-rail input operation. The internal input hysteresis eliminates output switching due to internal input noise voltage, reducing current draw. The open-drain output of the MCP6566/6R/6U/7/9 family requires a pull-up resistor. It supports pull-up voltages that are above and below VDD, which can be used to level shift. The output toggle frequency can reach a typical 4 MHz (typical) while limiting supply current surges and dynamic power consumption during switching. This family operates with a single-supply voltage of 1.8V to 5.5V while drawing less than 100 μA comparator of quiescent current (typical).
Applications
- Laptop Computers
- Mobile Phones
- Handheld Electronics
- RC Timers
- Alarm and Monitoring Circuits
- Window Comparators
- Multivibrators
Key features
- Propagation Delay at 1.8 VDD: - 56 ns (typical) high-to-low
- Low Quiescent Current: 100 μA (typical)
- Input Offset Voltage: ±3 mV (typical)
- Rail-to-Rail Input: VSS - 0.3V to VDD + 0.3V
- Open-Drain Output
- Wide Supply Voltage Range: 1.8V to 5.5V
- Available in Single, Dual and Quad
- Packages: SC70, SOT-23, SOIC, MSOP, TSSOP
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6567M/TR#C44606407HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,400 | ₹64.79 · 2,400 in stock | View |
 | MCP6567-E/SN#C636355MICROCHIP · SOIC-8 | MICROCHIP | SOIC-8 | On request | Price on request | Quote |
