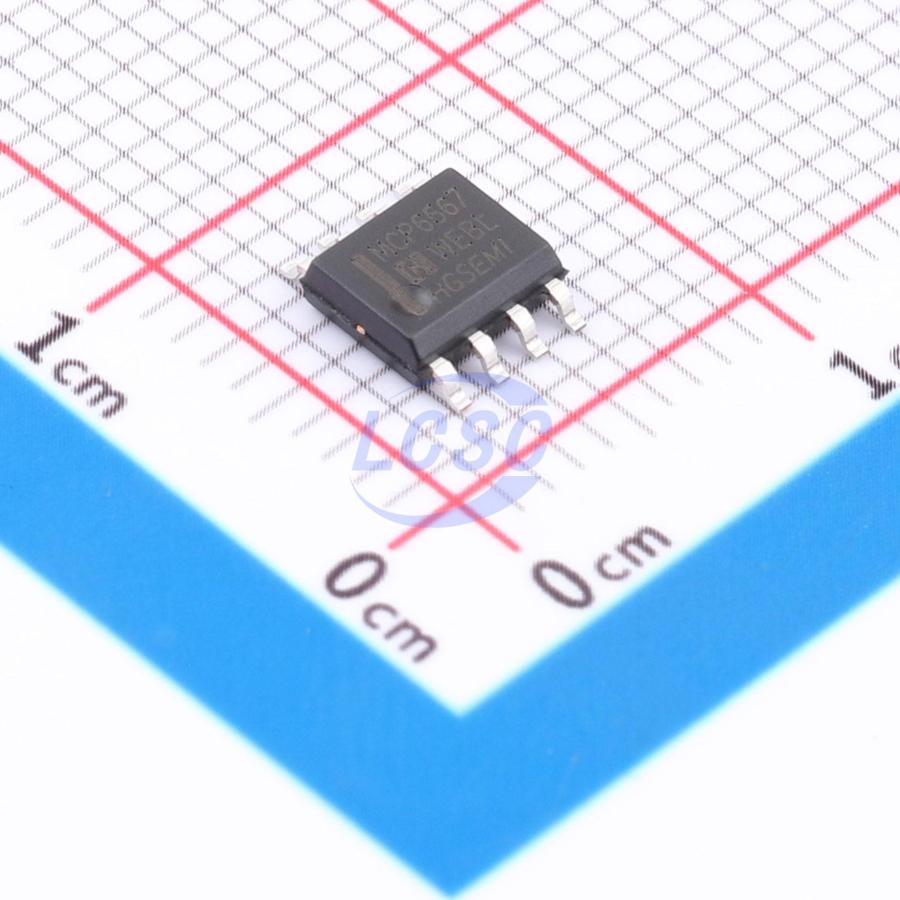

MCP6567M/TR
Rail-to-Rail Input, Rail-to-Rail Output 500uV 6pA SOP-8 Linear Comparators
Micro-Power, RRIO, 1.4V, Push-Pull Output Comparator with Integrated Voltage Reference
- Manufacturer
- HGSEMI
- Manufacturer part #
- MCP6567M/TR
- Store part #
- C44606407
- Package / case
- SOP-8
- Category
- Linear Comparators
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,400 in stock
#C44606407
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.79 | ₹64.79 |
| 10+ | ₹56.99 | ₹569.90 |
| 30+ | ₹53.09 | ₹1,592.70 |
| 100+ | ₹49.19 | ₹4,919.00 |
| 500+ | ₹46.81 | ₹23,405.00 |
| 1,000+ | ₹45.72 | ₹45,720.00 |
1 × ₹64.79
₹64.79
excl. GST
₹76.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MCP6567M/TR
₹64.79 for 1 + GST
Specifications
- Features
- Built-in reference source;Built-in hysteresis;Complementary bipolar input stage
- Input Hysteresis Voltage (Vhys)
- 4.7mV
- Common Mode Rejection Ratio(CMRR)
- 76dB
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Vos - Input Offset Voltage
- 500uV
- Quiescent Current
- 325nA
- Ib - Input Bias Current
- 6pA
- Input Offset Current(Ios)
- 4pA
- Operating Temperature
- -40℃~+85℃
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.077 g
Overview
The MCP6567 is ultra-low-power comparator with internal hysteresis, optimized for systems powered from a 3V or 5V supply. The device features high-speed response, low-power consumption, low offset voltage, and rail-to-rail input and output range. Propagation delay is 6us (100mV overdrive), while supply current is 325nA per comparator. The internal input hysteresis eliminates output switching due to internal input noise voltage. The maximum input offset voltage is 3mV, and the operating range is from 1.4V to 5.5V. All devices are specified for the temperature range of -40℃ to +85℃. The MCP6567 dual are available in Green SOP-8, MSOP-8, SOT-23-8 and DFN-8 packages.
Applications
- Alarm and Monitoring Circuits
- Peak and Zero-crossing Detectors
- Logic Level Shifting or Translation
- RC Timers
- Window Comparators
- IR Receivers
- Portable Systems
Key features
- 325nA (Typ) Low Power Consumption
- Fast, 6us Propagation Delay
- Single-Supply Operation from +1.4V ~ +5.5V
- Low Offset Voltage: 3mV (Max)
- Rail-to-Rail Input and Output
- CMOS/TTL-Compatible Output
- Internal Hysteresis for Clean Switching
- No Phase Reversal for Overdriven Inputs
- Operating Temperature: -40℃ ~ +85℃
- Available in SOP-8, MSOP-8, SOT-23-8 and DFN-8 Packages
