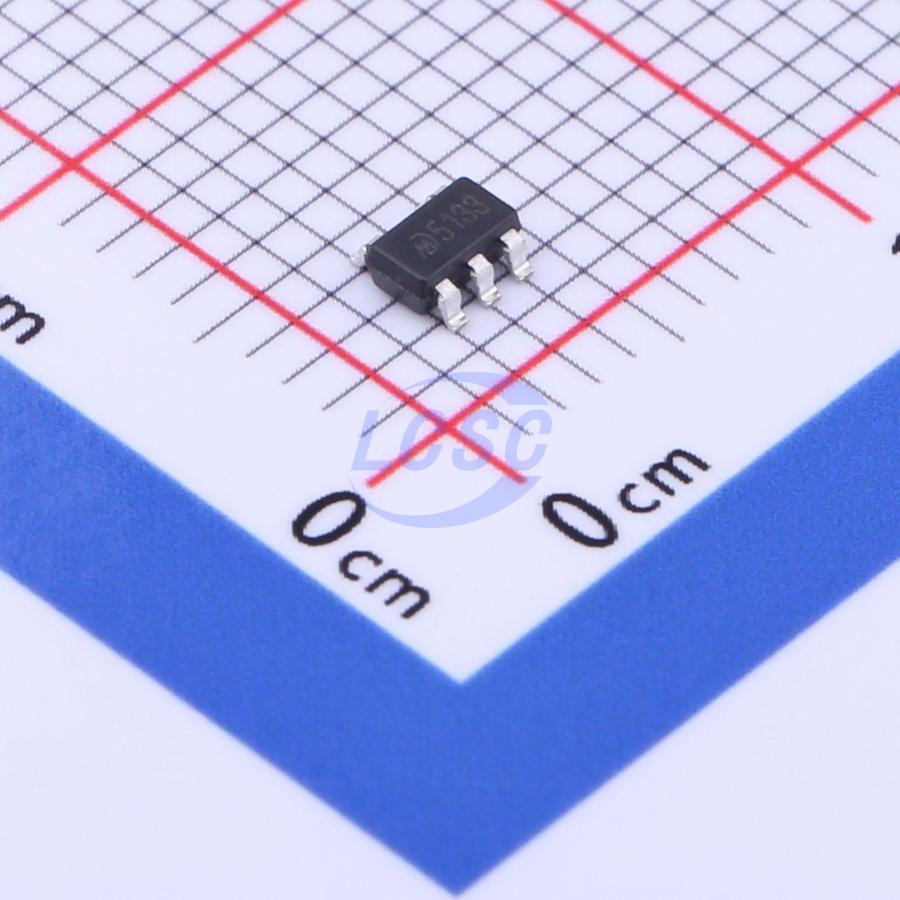

Mingda MicroelectronicsDatasheet (PDF)
MD5133
3.3V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
Ultra-low Power Consumption LDO CMOS Voltage Regulator With ON/OFF Switch
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD5133
- Store part #
- C919727
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,605 in stock
#C919727
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.70 | ₹88.50 |
| 50+ | ₹14.16 | ₹708.00 |
| 150+ | ₹12.38 | ₹1,857.00 |
| 500+ | ₹11.06 | ₹5,530.00 |
| 3,000+ | ₹9.99 | ₹29,970.00 |
| 6,000+ | ₹9.46 | ₹56,760.00 |
5 × ₹17.70
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD5133
₹88.50 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 500nA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 7V
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.034 g
Overview
MD51XX is a highly accurate low dropout voltage regulator (LDO) manufactured in CMOS processes. It can deliver up to 300mA of current while consuming only 0.5uA of quiescent current. It consists of a reference voltage generator, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor.
Applications
- Smart wearer
- Long-life battery-powered devices
- Portable mobile devices, such as mobile phones, cameras, and so on
- Wireless communication equipment
Key features
- Ultra-low Quiescent Current: 500nA
- Highly Accurate: ±2%
- Dropout Voltage: 60mV÷Iour = 100mA
- Maximum Output Current: 300mA
- Input Voltage Range: 1.4V~7.0V
- Temperature Stability: ±50ppm/°C
- ON/OFF Logic = Enable High
- Standby Current: 10nA
- COUT Discharge Circuit when EN Disable is Active
- Protections Circuits: Current Limiter, Short Circuit, Foldback
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD53R33#C111685Mingda Microelectronics · SOT-23-5 | Mingda Microelectronics | SOT-23-5 | 1,035 | ₹18.23 · 1,035 in stock | View |
 | MD85E33QC3#C920477Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 175 | ₹19.00 · 175 in stock | View |
 | MD7218E33QC3#C920494Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 3,990 | ₹22.93 · 3,990 in stock | View |
 | MD7219E33QC3#C2978411Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 160 | ₹13.79 · 160 in stock | View |
 | MD85A33QC3#C920475Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 2,435 | ₹15.47 · 2,435 in stock | View |
