Mingda MicroelectronicsDatasheet (PDF)

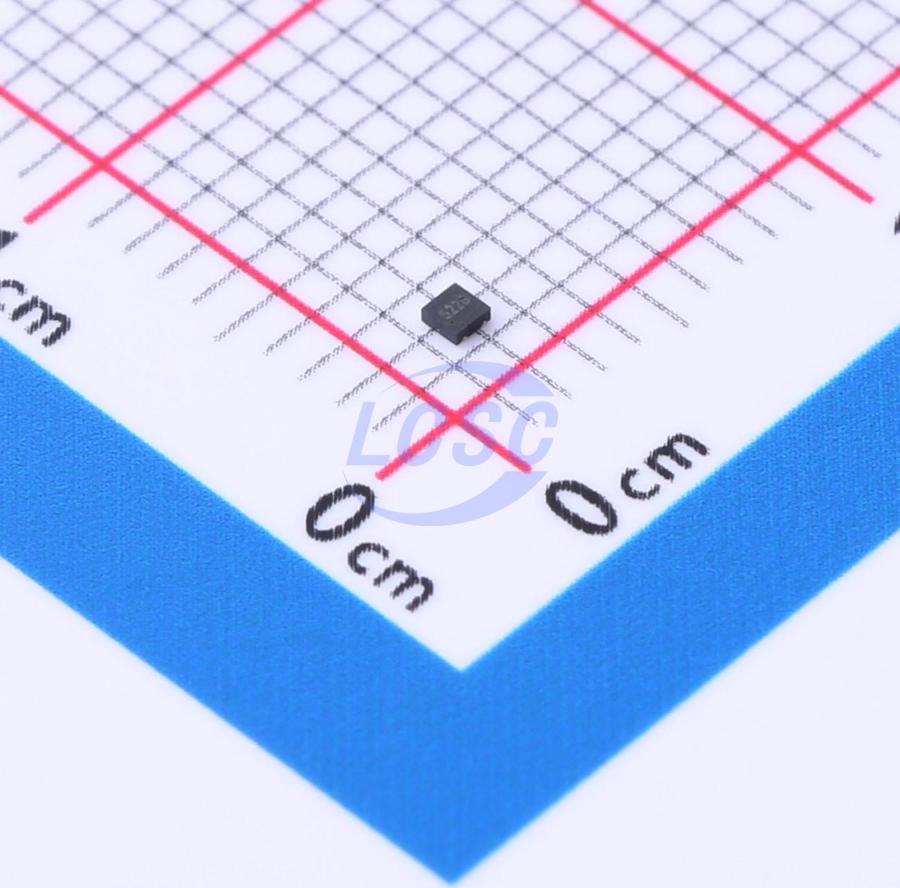

MD52E28WB6
2.8V Positive Fixed DFN-4-EP(1x1) Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
DFN-4-EP(1x1)RoHSActive
Ultra-low Power Consumption LDO,CMOS Voltage Regulator With ON/OFF Switch
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD52E28WB6
- Store part #
- C920344
- Package / case
- DFN-4-EP(1x1)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,845 in stock
#C920344
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.94 | ₹64.70 |
| 50+ | ₹10.23 | ₹511.50 |
| 150+ | ₹8.88 | ₹1,332.00 |
| 500+ | ₹7.86 | ₹3,930.00 |
| 2,500+ | ₹7.05 | ₹17,625.00 |
| 5,000+ | ₹6.64 | ₹33,200.00 |
5 × ₹12.94
₹64.70
excl. GST
₹76.35 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
MD52E28WB6
₹64.70 for 5 + GST
Specifications
- Output Voltage
- 2.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 600nA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 7V
- Features
- Enable control;Output discharge;Over Current Protection;Short Circuit Protection;Thermal shutdown
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.012 g
Overview
MD52XX is ultra-low power consumption low dropout voltage regulator (LDO) manufactured in CMOS processes. It can deliver up to 500mA of current while consuming only 0.6μA of quiescent current. It consists of a reference voltage generator, an error amplifier, a current foldback circuit, and a phase compensation circuit plus a driver transistor. The MD52XX is designed specifically for applications where very-low IQ is a critical parameter. This device maintains low quiescent current consumption even in dropout mode to further increase the battery life.
Applications
- Smart wearer
- Long-life battery-powered devices
- Portable mobile devices, such as mobile phones, cameras, and so on
- Wireless communication equipment
Key features
- Ultra-low Quiescent Current: 0.6μA
- Highly Accurate: ±2%
- Dropout Voltage: 230mV@Iour = 500mA
- Maximum Output Current: 500mA
- Input Voltage Range: 2.2V ~ 7.0V
- Temperature Stability: ±50ppm/°C
- ON/OFF Logic = Enable High
- Standby Current: 10nA
- COUT Discharge Circuit when EN Disable is Active
- Protections Circuits: Current Limiter, Short Circuit, Foldback
- Output Capacitor: Low ESR Ceramic Capacitor Compatible
