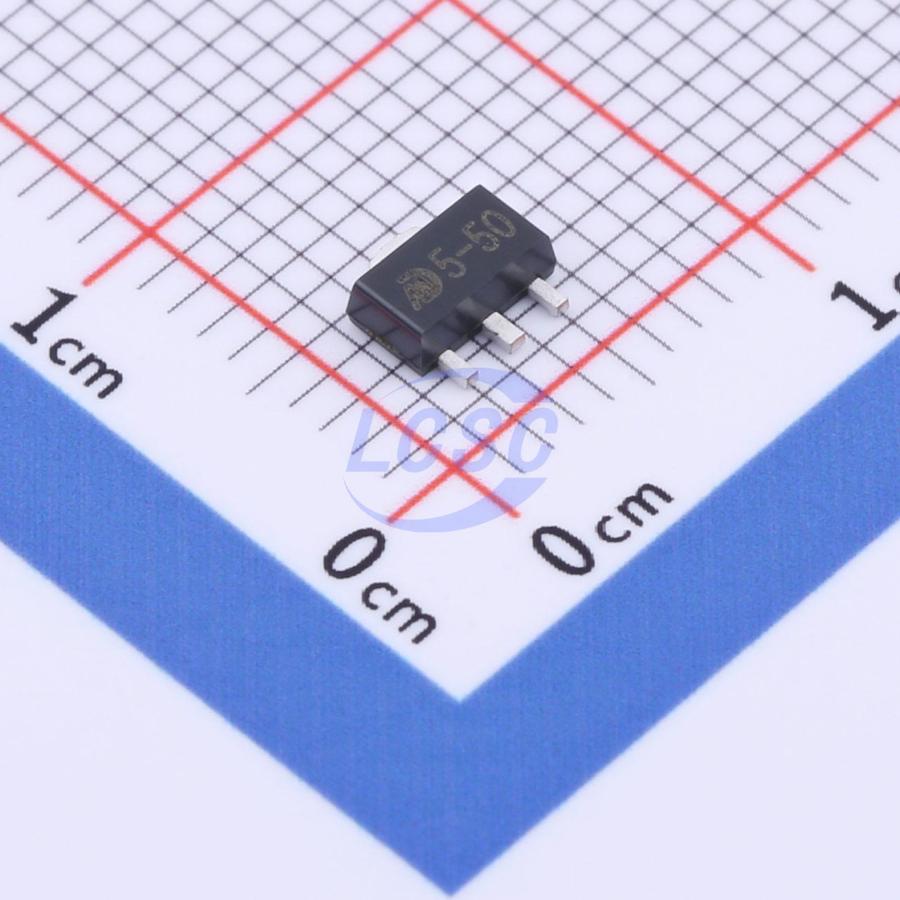

Mingda MicroelectronicsDatasheet (PDF)
MD5350
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-89-3
SOT-89-3RoHSActive
Low-dropout (LDO) regulator with low power consumption, 500 mA, CMOS voltage regulator circuit
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD5350
- Store part #
- C2828035
- Package / case
- SOT-89-3
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,740 in stock
#C2828035
Stock & price checked 24 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.49 | ₹77.45 |
| 50+ | ₹12.37 | ₹618.50 |
| 150+ | ₹10.81 | ₹1,621.50 |
| 1,000+ | ₹9.06 | ₹9,060.00 |
| 2,000+ | ₹8.12 | ₹16,240.00 |
| 5,000+ | ₹7.66 | ₹38,300.00 |
5 × ₹15.49
₹77.45
excl. GST
₹91.39 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
MD5350
₹77.45 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 1.2uA
- Output Configuration
- Positive
- Output Current
- 500mA
- Operating Voltage
- 10V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.167 g
Overview
The MD53XX series is a low-dropout, high-accuracy output voltage, ultra-low quiescent current, positive-voltage linear regulator developed using CMOS technology. Due to the built-in low on-resistance transistor, the input-to-output voltage dropout is low. The maximum operating voltage reaches 10V, making it suitable for applications requiring higher voltage ratings. The output also features short-circuit protection to effectively prevent IC damage.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±2%
- Low input-output dropout voltage: typical 1.5mV at IOUT := 1mA
- Ultra-low quiescent current: typical 1.2μA
- Low output voltage temperature drift: typical 50ppm/°C
- Input voltage withstand up to 10V with stable output regulation
- Output short-circuit protection: short-circuit current 50mA
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD5350-1#C920573Mingda Microelectronics · SOT-89-3 | Mingda Microelectronics | SOT-89-3 | 140 | ₹17.19 · 140 in stock | View |
 | MD53U50#C126490Mingda Microelectronics · SOT-89 | Mingda Microelectronics | SOT-89 | 10 | ₹19.47 · 10 in stock | View |
 | MD7208A50PA1#C5155876Mingda Microelectronics · SOT-89-3L | Mingda Microelectronics | SOT-89-3L | 50 | ₹19.57 · 50 in stock | View |
 | MD7218A50PA1#C920503Mingda Microelectronics · SOT-89-3L | Mingda Microelectronics | SOT-89-3L | 170 | ₹23.35 · 170 in stock | View |
 | MD52A50PA1#C2891999Mingda Microelectronics · SOT-89-3 | Mingda Microelectronics | SOT-89-3 | 60 | ₹15.14 · 60 in stock | View |
