Mingda MicroelectronicsDatasheet (PDF)

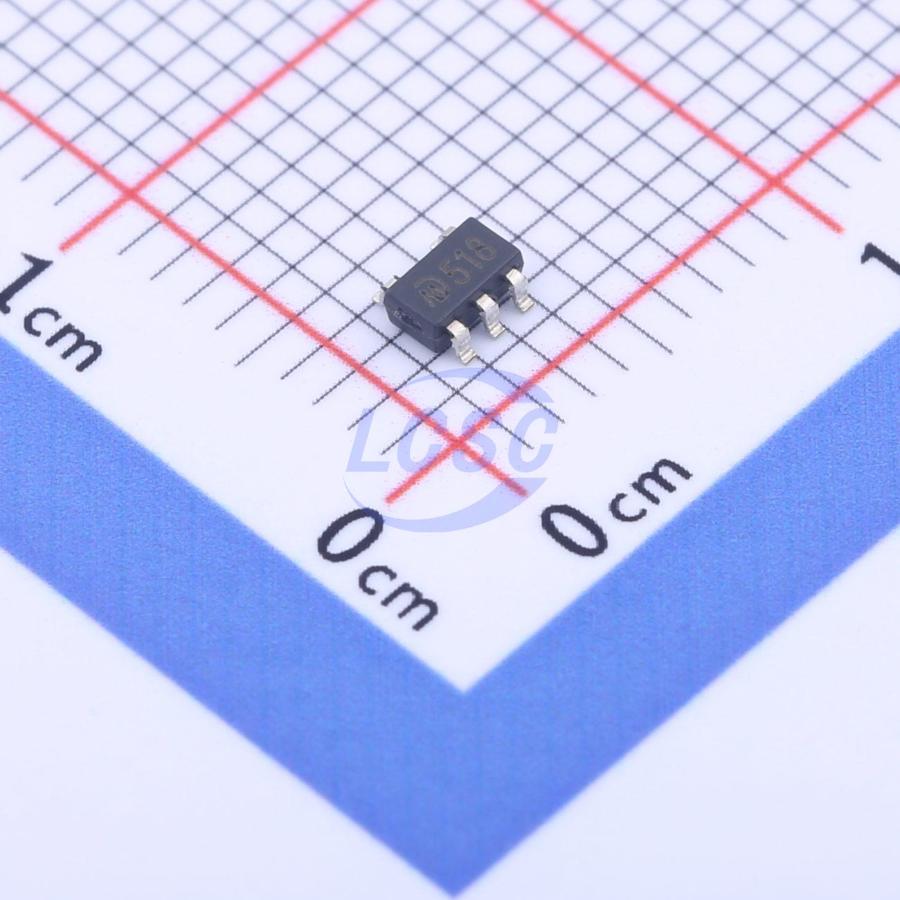

MD53R18
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5L
SOT-23-5LRoHSActive
Fast Low Dropout (LDO) Regulator, CMOS Voltage Regulator Circuit (with Control Terminal), 500mA
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD53R18
- Store part #
- C2978376
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,455 in stock
#C2978376
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.48 | ₹92.40 |
| 50+ | ₹14.71 | ₹735.50 |
| 150+ | ₹12.83 | ₹1,924.50 |
| 500+ | ₹11.42 | ₹5,710.00 |
| 3,000+ | ₹9.80 | ₹29,400.00 |
| 6,000+ | ₹9.25 | ₹55,500.00 |
5 × ₹18.48
₹92.40
excl. GST
₹109.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD53R18
₹92.40 for 5 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 40uA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.028 g
Overview
The MD53RXX series are positive-voltage LDO regulators developed using CMOS technology, featuring high-accuracy output voltage and ultra-low quiescent current. The built-in low on-resistance transistor enables low dropout voltage. Maximum operating voltage up to 10V, suitable for applications requiring higher voltage ratings. Output short-circuit protection is integrated to prevent device damage.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±2%
- Output current: 500mA typical
- Low input-output voltage differential: 1.5mV typical at IOUT=1mA
- Ultra-low quiescent current: 25uA typical
- Low output voltage temperature drift: 50ppm/°C typical
- Input voltage tolerance: maintains regulated output up to 10V
- Output short-circuit protection: short-circuit current 50mA
- High ripple rejection ratio: 65dB typical
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MD7219E18QC3#C2978447Mingda Microelectronics · SOT-23-5L | Mingda Microelectronics | SOT-23-5L | 195 | ₹19.99 · 195 in stock | View |
