Mingda MicroelectronicsDatasheet (PDF)

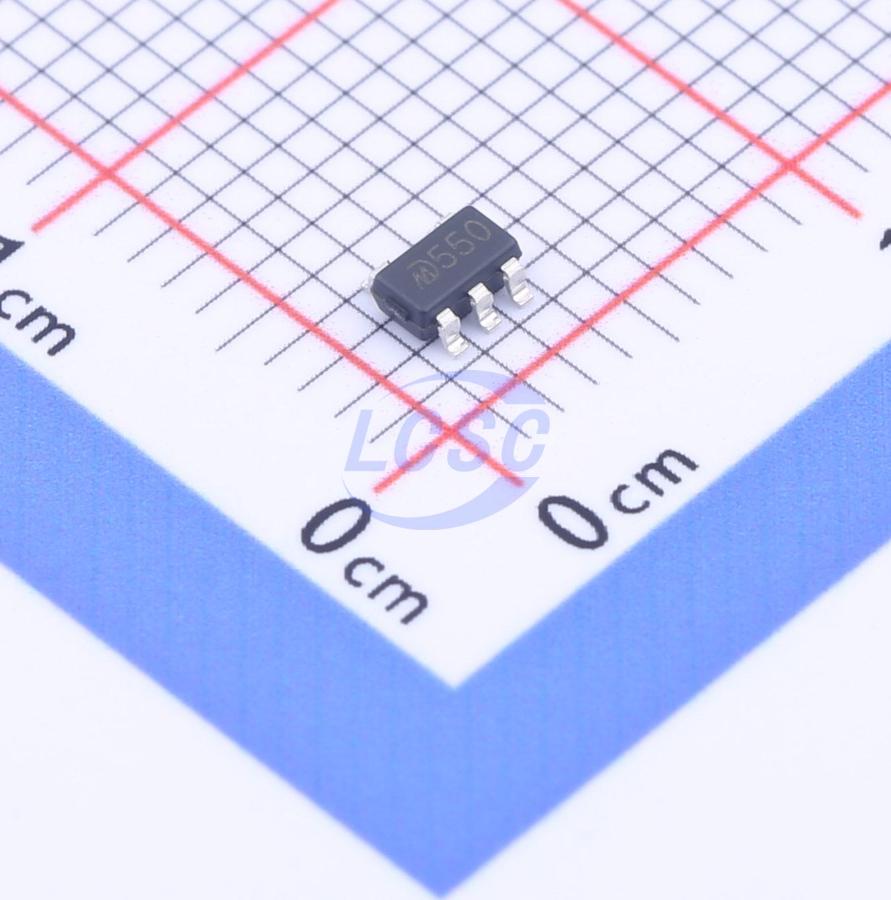

MD53R50
Linear Voltage Regulator IC Positive Fixed 1 Output 500mA SOT-23-5L
SOT-23-5LRoHSActive
Fast Low Dropout (LDO) Regulator, CMOS Voltage Regulator Circuit (with Control Terminal), 500mA
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD53R50
- Store part #
- C2978549
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,795 in stock
#C2978549
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹22.72 | ₹113.60 |
| 50+ | ₹17.83 | ₹891.50 |
| 150+ | ₹15.74 | ₹2,361.00 |
| 500+ | ₹13.14 | ₹6,570.00 |
| 3,000+ | ₹11.97 | ₹35,910.00 |
| 6,000+ | ₹11.29 | ₹67,740.00 |
5 × ₹22.72
₹113.60
excl. GST
₹134.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD53R50
₹113.60 for 5 + GST
Specifications
- Output Voltage
- 5V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃@(Ta)
- Supply Current (Iq)
- 25uA
- Output Configuration
- Positive
- Operating Voltage
- 10V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Short Circuit Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The MD53RXX series are positive-voltage LDO regulators developed using CMOS technology, featuring high-accuracy output voltage and ultra-low quiescent current. The built-in low on-resistance transistor enables low dropout voltage. Maximum operating voltage up to 10V, suitable for applications requiring higher voltage ratings. Output short-circuit protection is integrated to prevent device damage.
Applications
- Regulated power supply for battery-powered devices
- Regulated power supply for communication equipment
- Regulated power supply for home appliances and toys
- Regulated power supply for mobile phones
- Regulated power supply for portable medical instruments
Key features
- High output voltage accuracy: ±2%
- Output current: 500mA typical
- Low input-output voltage differential: 1.5mV typical at IOUT=1mA
- Ultra-low quiescent current: 25uA typical
- Low output voltage temperature drift: 50ppm/°C typical
- Input voltage tolerance: maintains regulated output up to 10V
- Output short-circuit protection: short-circuit current 50mA
- High ripple rejection ratio: 65dB typical
