Mingda MicroelectronicsDatasheet (PDF)

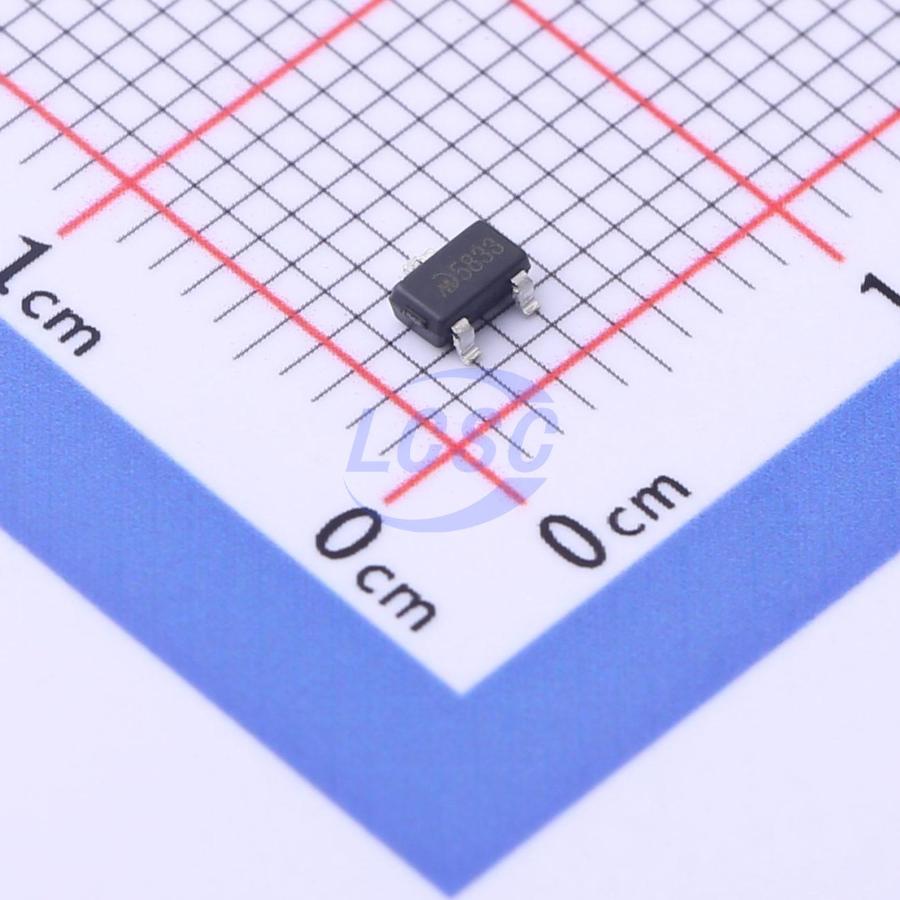

MD58E33QA3
3.3V Positive Fixed SOT-23-3L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-3LRoHSActive
High-PSRR Low-Noise RF LDO CMOS Voltage Regulator With ON/OFF Switch 500mA
- Manufacturer
- Mingda Microelectronics
- Manufacturer part #
- MD58E33QA3
- Store part #
- C2978390
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,305 in stock
#C2978390
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹19.08 | ₹95.40 |
| 50+ | ₹15.19 | ₹759.50 |
| 150+ | ₹13.24 | ₹1,986.00 |
| 500+ | ₹11.77 | ₹5,885.00 |
| 3,000+ | ₹10.12 | ₹30,360.00 |
| 6,000+ | ₹9.54 | ₹57,240.00 |
5 × ₹19.08
₹95.40
excl. GST
₹112.57 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MD58E33QA3
₹95.40 for 5 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 20uA
- Output Configuration
- Positive
- Operating Voltage
- 5.5V
- Output Current
- 500mA
- Output Type
- Fixed
- Features
- Enable control;Output discharge;Thermal shutdown;Over Current Protection
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The MD58XX series is a low-noise LDO that can supply up to 500 mA output current. Designed to meet the requirements of RF and analog circuits, the MD58XX series device provides low noise, high PSRR, low quiescent current, and low line or load transient response figures. Using new innovative design techniques, the MD58XX series offers ultra-low noise performance without a noise bypass capacitor and the ability for remote output capacitor placement.
Applications
- Mobile Phones, Tablets
- Digital Cameras and Audio Devices
- Portable and Battery-Powered Equipment
- Portable Medical Equipment
- Smart Meters and Field Transmitters
- RF, PLL, VCO, and Clock Power Supplies
- IP Cameras
- Drones
Key features
- Input Voltage Range: 2.2 V to 5.5 V
- Output Voltage Range: 1.2 V to 4.5 V
- Stable With 1 μF Ceramic Input and Output Capacitors
- No Noise Bypass Capacitor Required
- Remote Output Capacitor Placement
- Current Limiter and Over Temperature Protection
- -40°C to 125°C Operating Junction Temperature
- Low Output Voltage Noise: 10 μV RMS
- High PSRR: 90dB @ 1kHz
- Output Voltage Tolerance: ±2%
- Low quiescent Current: 20uA
- Low Dropout Voltage: 220mV@500mA
